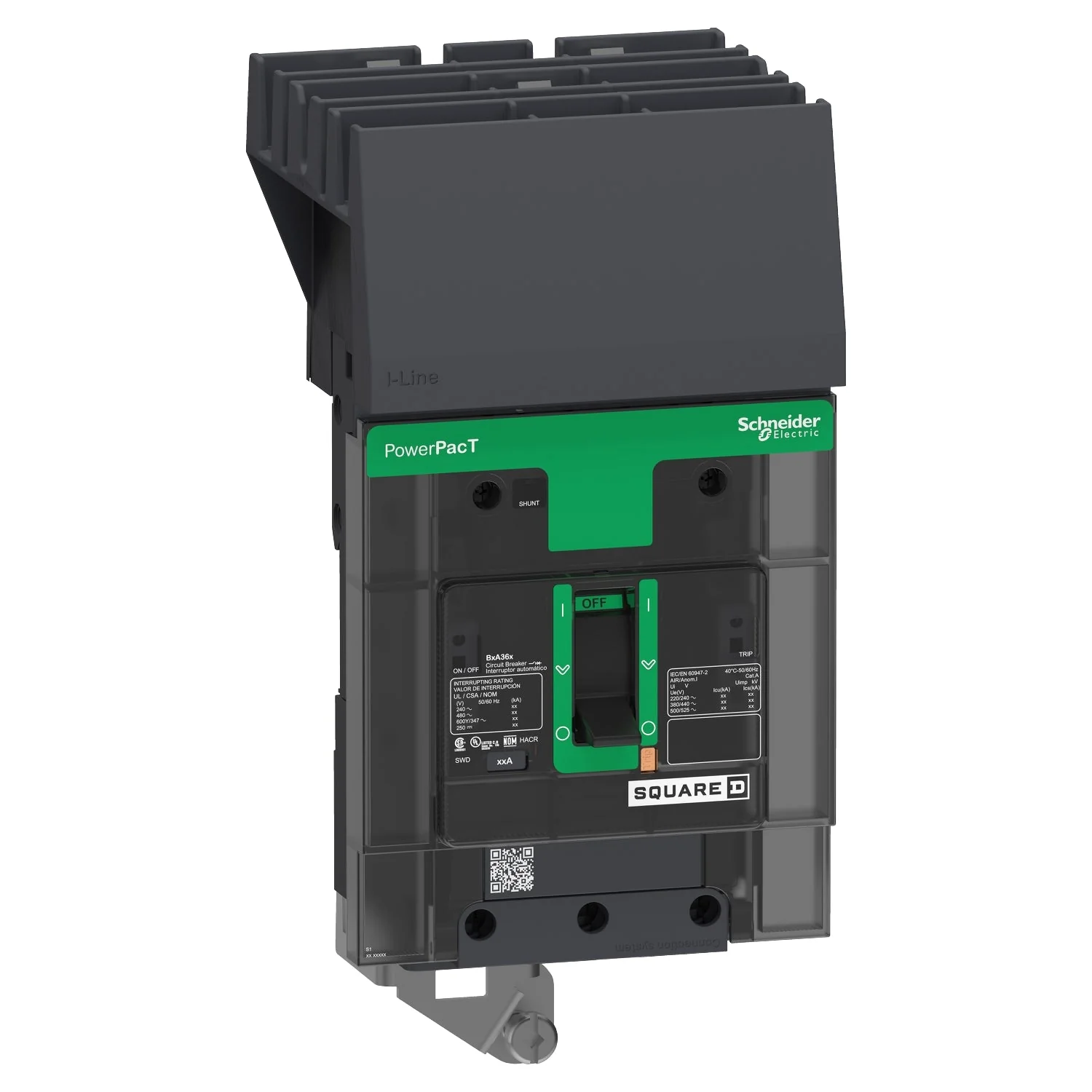

BDA34060Y - Square D - 60 Amp Molded Case Circuit Breaker I-Line Plug-In - 60 Amp - 3 Pole - 480 Volt
In stock
Favorite Favorite

BDA34060Y – Square D – 60 Amp Molded Case Circuit Breaker I-Line Plug-In – 60 Amp – 3 Pole – 480 Volt

$534.99

SKU: BDA34060Y Categories: , ,

Description

The Square D BDA34060Y is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 480Y/277VAC. It has an interrupting rating of 18kAIC@480Y/277V. The BDA34060Y has a I-Line style plug-in connection type and includes long time and instantaneous trip functions.

Specifications

Brand Square D
Series BDA
Amperage 60
Voltage 480Y/277VAC
Poles 3
Phase 3
Interrupting Rating 18kAIC@480Y/277V
Frame Type BDA
Connection Type I-Line Style Plug-In
Protection Thermal Magnetic
Functions Long Time and Instantaneous Trip
Terminal Connection Line and Load Lug
Wire Gauge AWG 14 to AWG 2/0 Aluminum/Copper
Standards CE, GB, UL, EN/IEC, NMX, NEMA, CSA, CCC, EAC, NOM, RoHS
Temperature Rating -13 to 158°F
Circuit Breaker Type Standard
Actuator Type Toggle
Color Gray
Mpn BDA34060Y

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Additional information

Weight 3 lbs
Condition

New
