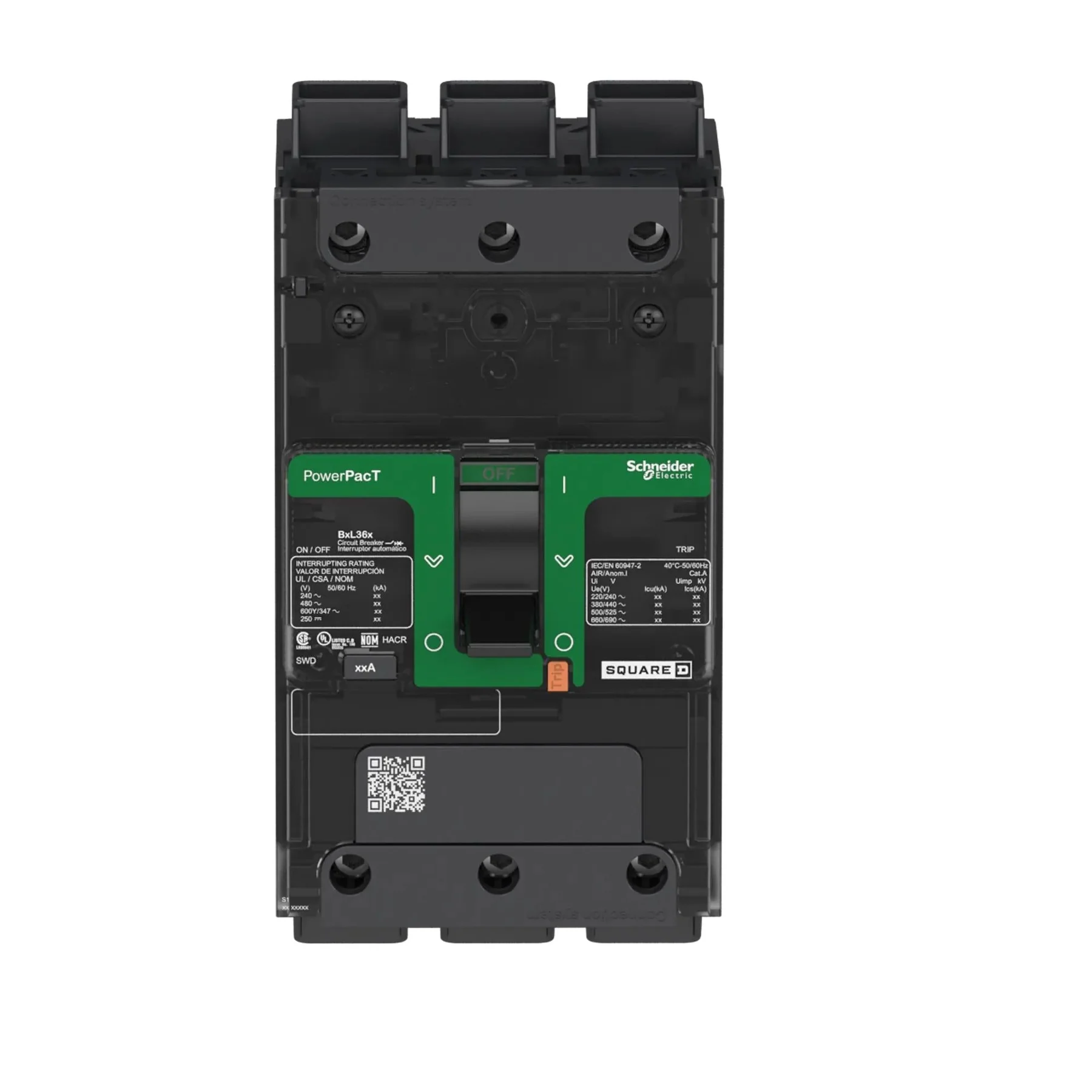

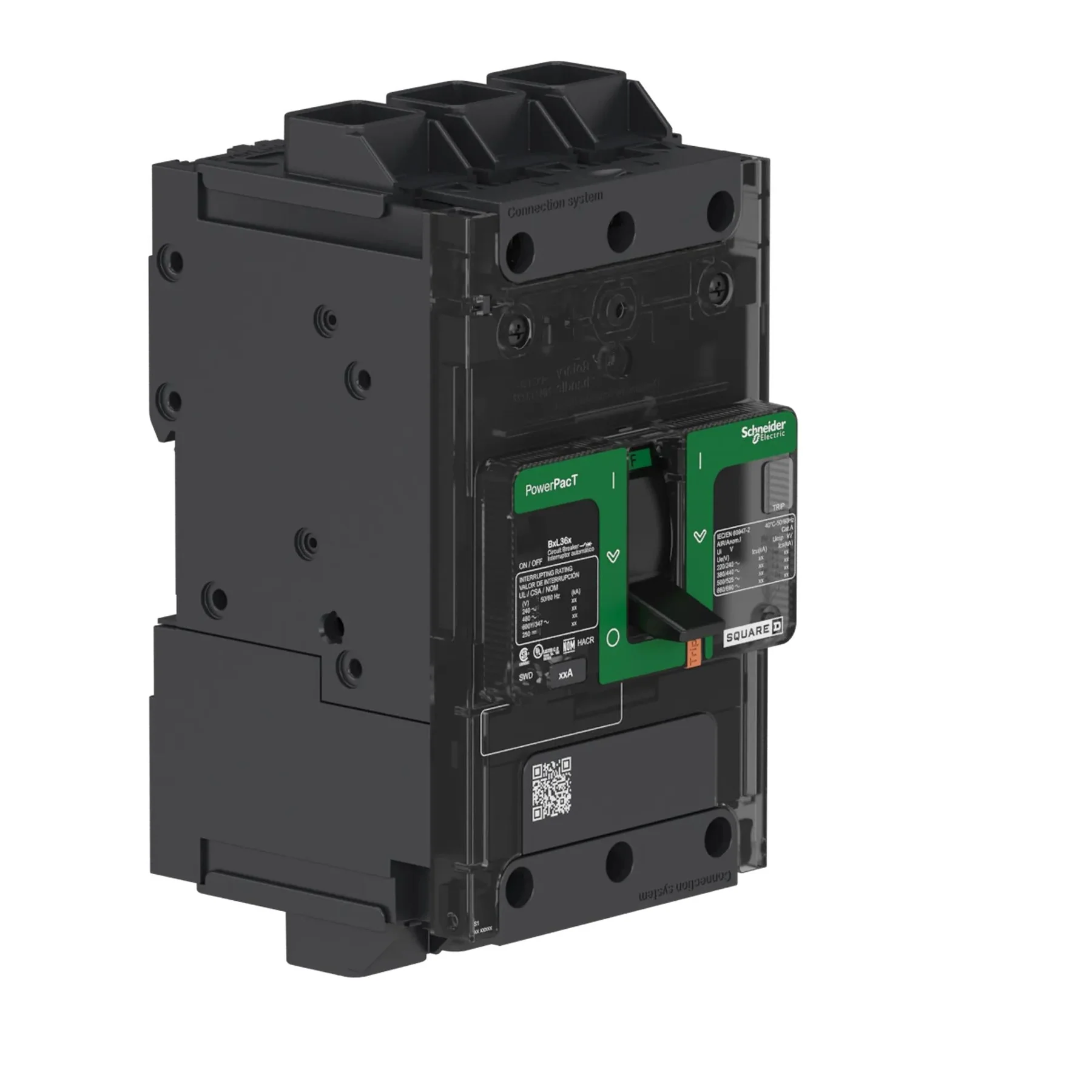

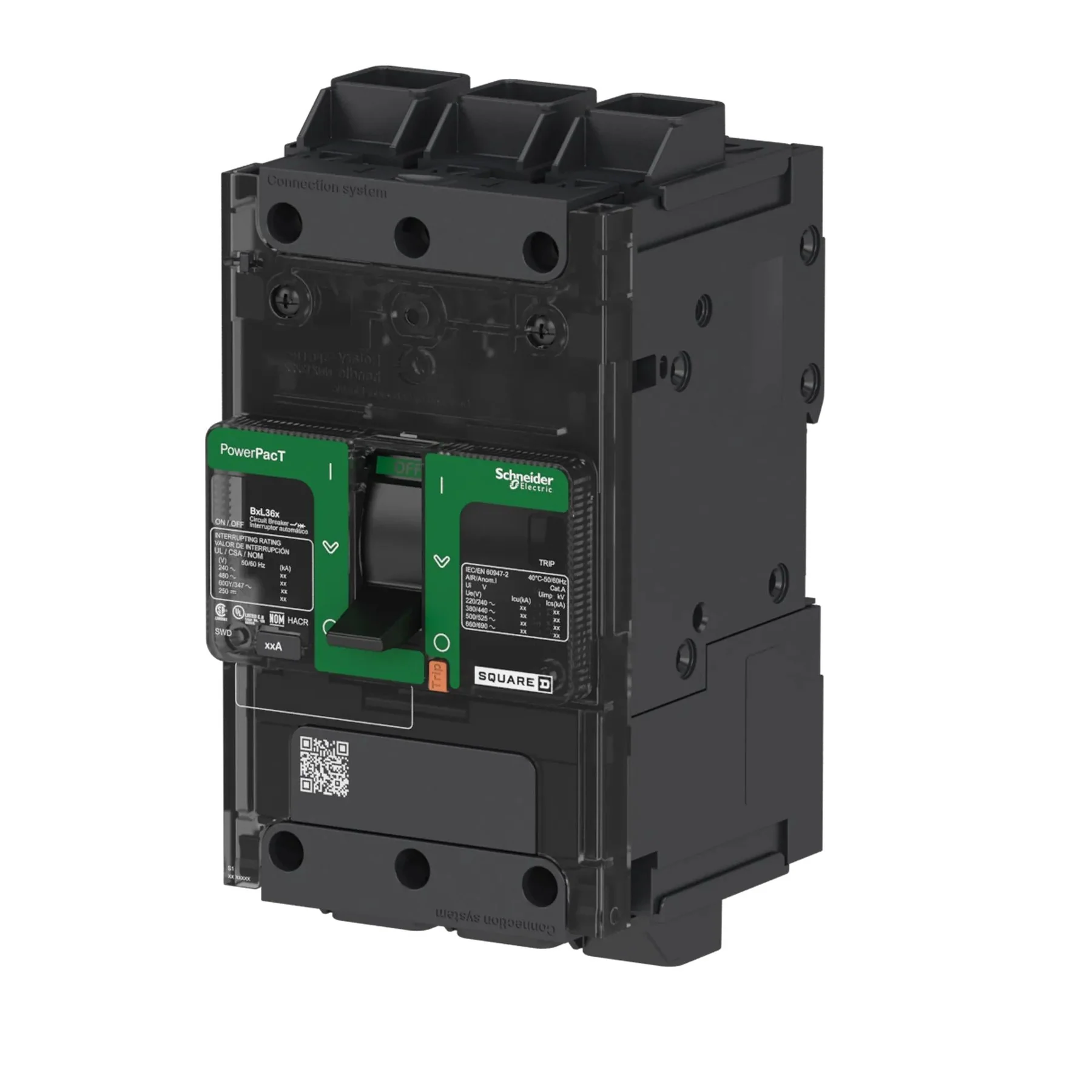

FavoriteBDL36050 – Square D – 3 Pole 50 amp 600V 18kA @480V Circuit Breaker
$264.99
Description
The Square D BDL36050 is a 3 pole thermal magnetic molded case circuit breaker with a current rating of 50 amps and a voltage rating of 525 v ac. It has an interrupt rating of 25 kA 208Y/120 V AC 50/60 Hz/25 kA 240 V AC 50/60 Hz/18 kA 480/277 V AC 50/60 Hz/18 kA 480 V AC 50/60 Hz/14 kA 600Y/347 V AC 50/60 Hz/10 kA 250 V DC. The BDL36050 has a unit mounting type, and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
| Series | BDL |
| Amperage | 50 A |
| Voltage | 525 V AC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Unit |
| Approval | UL,IEC,CCC,EAC,CSA,NOM |
| Interrupting Rating | 25 kA 208Y/120 V AC 50/60 Hz/25 kA 240 V AC 50/60 Hz/18 kA 480/277 V AC 50/60 Hz/18 kA 480 V AC 50/60 Hz/14 kA 600Y/347 V AC 50/60 Hz/10 kA 250 V DC |
| Frame Type | B Frame |
| Connection Type | Everlink Lug Line, Everlink Lug Load |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Everlink Lug Both Ends |
| Wire Gauge | AWG 6 – AWG 2/0 Fine Stranded Aluminium/Copper, AWG 14 – AWG 3/0 Rigid or Stranded Aluminium/Copper |
| For Use With | Electrical Distribution Equipment, Industrial Control Panels |
| Temperature Rating | -13 to 158 °F (-25 to 70 °C) |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | 2 AWG, 3 AWG |
| Min Wire Size | 14 AWG, 6 AWG |
| Color | Grey (RAL 7016) |
| Gtin | 3606481153111 |
Additional information
| Weight | 4 lbs |
|---|---|
| Condition | New |
| GTIN |
