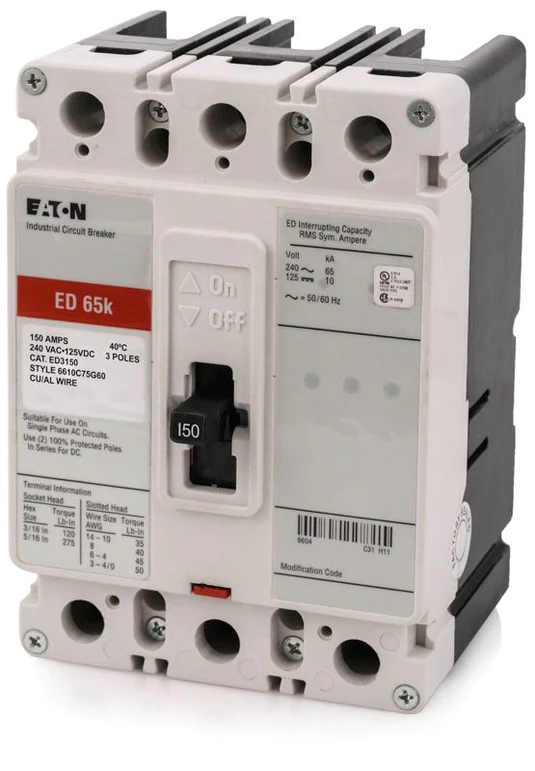

FavoriteED3150 – Eaton – Molded Case Circuit Breaker Feed Thru – 150 Amp – 3 Pole – 240 Volt
$608.99
Description
Cutler Hammer ED series three pole 150 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method fixed thermal magnetic and standard interrupting rating of 65 kiloampere at 240V functions long-time and instantaneous.
Specifications
| Type | Molded Case- Thermal Magnetic |
| Frame Type | F |
| Voltage Rating | 240 VAC at 50/60 Hz- 125 VDC |
| Maximum AC Voltage Rating | 240 |
| Maximum DC Voltage Rating | 125 |
| Current Rating | 150 Ampere at 40 Deg C |
| Number of Poles | 3 |
| Interrupting Rating | 65 KILOAMPERE AT 240 VAC- 10 KILOAMPERE AT 125 VDC (UL)- 65 KILOAMPERE AT 220/240 VAC- 10 KILOAMPERE AT 125 VDC (IEC) |
| Terminal Type | Standard Pressure Load Terminal |
| Size | 4.125 INCH W X 3.375 INCH D X 6 INCH H |
| Approval | UL |
| Maximum AC Voltage Rating – UOM | V |
| Maximum DC Voltage Rating – UOM | V |
| Model | ED |
| Additional Information | APPLICABLE STANDARD IEC 157-1- INCLUDES RIGHT/NEUTRAL POLE MOUNTED 48 TO 127 VAC/48 TO 60 VDC SHUNT TRIP WITH PIGTAIL LEAD ON REAR SIDE |
Additional information
| Weight | 5 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
