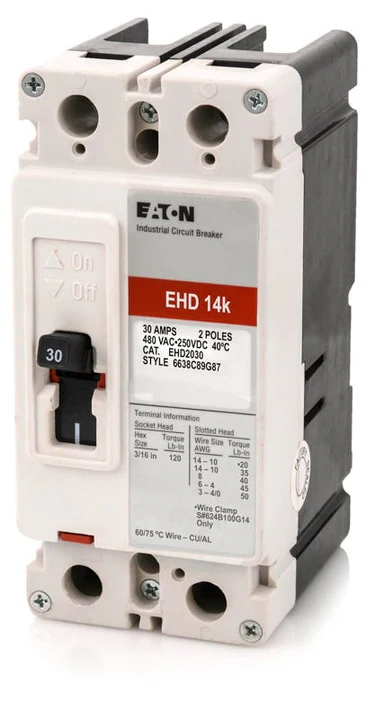

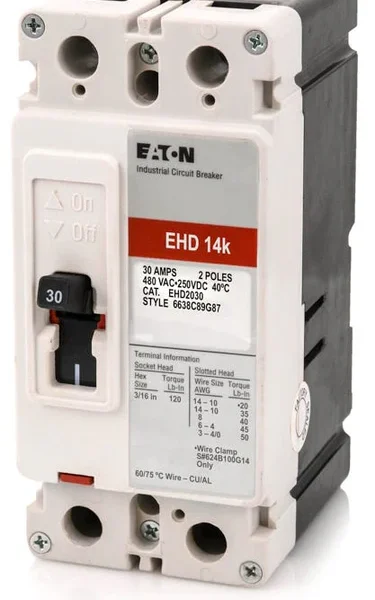

FavoriteEHD2030 – Eaton – Molded Case Circuit Breaker Bolt-On – 30 Amp – 2 Pole – 480 Volt
$374.99
Description
Eaton / Cutler-Hammer Molded Case Circuit Breaker Its Compact And Easy to Install Series C Ehd Double pole molded case circuit breaker has an F-frame it has a current rating of 30 Amps at 40 deg C voltage rating of 480 Volt AC / 250 Volt DC it has an interrupt rating of 18 kilo-Amps at 240 Vac 14 kilo-Amps at 480 Vac 10 kilo-Amps at 250 Vdc it has non-interchangeable thermal magnetic trip units for circuit protection and load terminal for convenient connection breaker is UL listed.
Specifications
| Type | Thermal Magnetic- Molded Case |
| Frame Type | F |
| Voltage Rating | 240/480 VAC 50/60 HZ- 250 VDC (UL) |
| Maximum AC Voltage Rating | 480 |
| Maximum DC Voltage Rating | 250 |
| Current Rating | 30 Ampere |
| Number of Poles | 2 |
| Interrupting Rating | 18 KILOAMPERE AT 240 VAC- 14 KILOAMPERE AT 480 VAC- 10 KILOAMPERE AT 250 VDC (UL) |
| Terminal Type | Standard Pressure Line Terminal- Standard Pressure Load Terminal |
| Size | 2.75 Inch W x 3.38 Inch D x 6 Inch H |
| Maximum AC Voltage Rating – UOM | V |
| Maximum DC Voltage Rating – UOM | V |
| Brand Name | Cutler-Hammer[R] |
| Model | EHD |
| Additional Information | FREEZE TESTED |
Additional information
| Weight | 3 lbs |
|---|---|
| Condition | New |
| GTIN |
