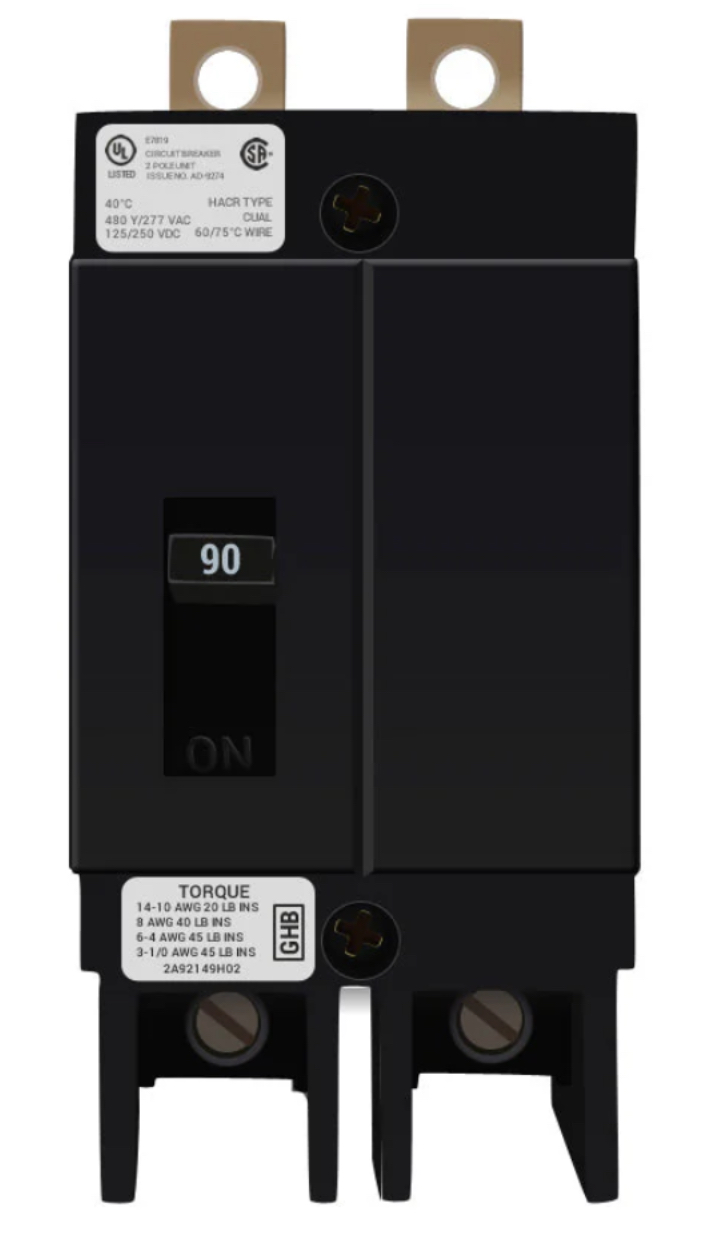

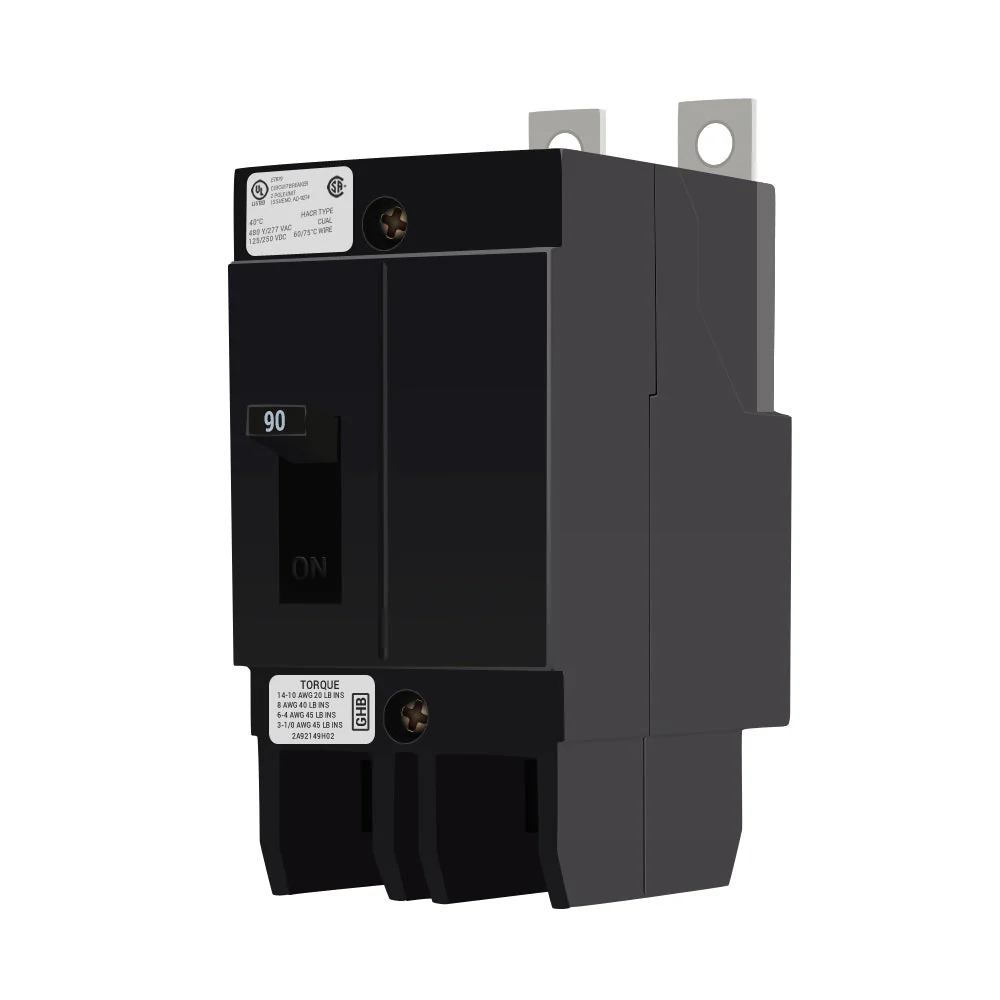

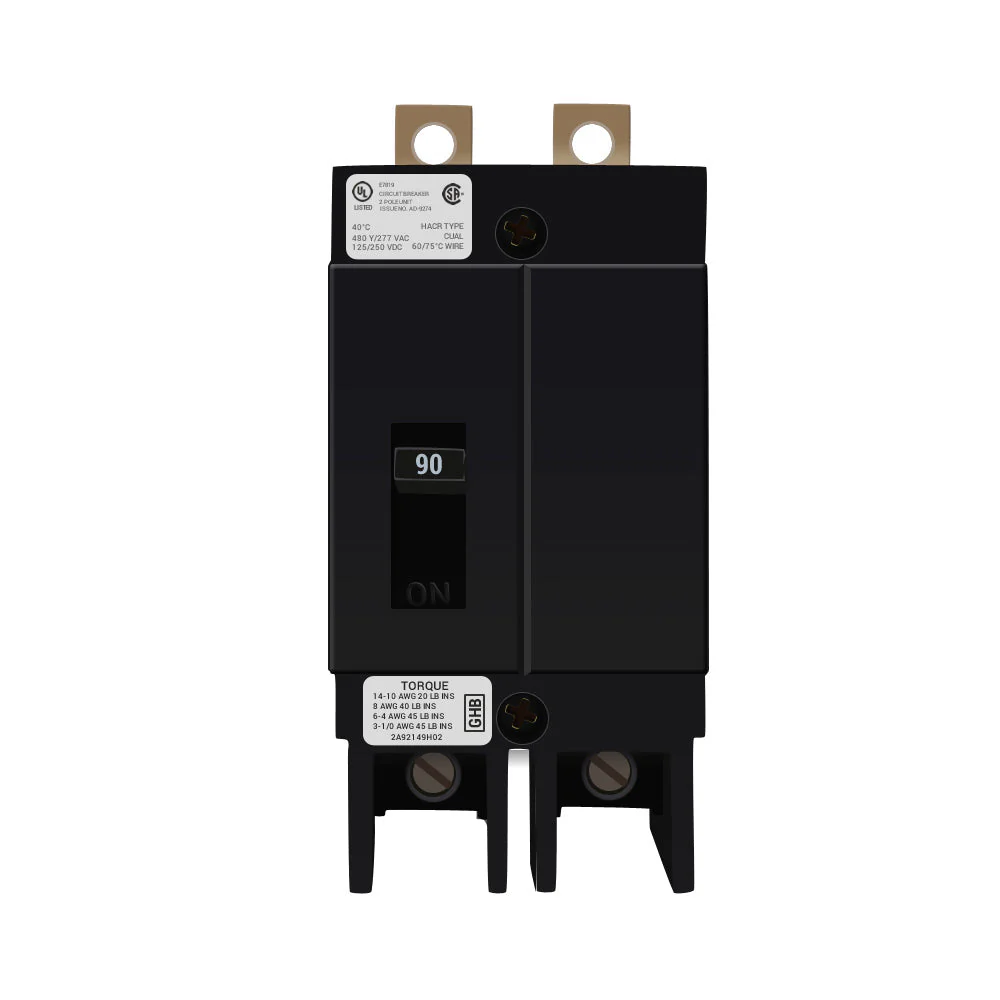

FavoriteGHB2090 – Eaton – Molded Case Circuit Breaker Bolt-On – 90 Amp – 2 Pole – 480 Volt
$349.99
Description
MOLDED CASE THERMAL MAGNETIC TYPE 480 MAX. AC VOLTAGE RATING 250 MAX. DC VOLTAGE RATING UL 489 CSA APPROVAL 277/480 VAC AT 50/60 HZ 125/250 VDC VOLTAGE RATING 14 KILOAMPERE AT 480 VAC STAR/277 VAC/125/250 VDC INTERRUPTING RATING 90 AMPERE AT 40 DEG C CURRENT RATING 2 POLE(S) ALUMINUM PRESSURE LINE AND LOAD TERMINAL TERMINAL TYPE GHB FRAME TYPE INCLUDES LINE AND LOAD TERMINAL NON-INTERCHANGEABLE TRIP UNIT APPLICABLE STANDARD NEMA AB1 AS 2184 BS 4752 IEC 157-1 SABS 156 SEV 157-1 VDE 0660 C GHB MODEL
Specifications
| Type | Molded Case- Thermal Magnetic |
| Frame Type | GHB |
| Voltage Rating | 277/480 VAC at 50/60 Hz- 125/250 VDC |
| Maximum AC Voltage Rating | 480 |
| Maximum DC Voltage Rating | 250 |
| Current Rating | 90 Ampere at 40 Deg C |
| Number of Poles | 2 |
| Interrupting Rating | 14 Kiloampere at 480 VAC Star/277 VAC/125/250 VDC |
| Terminal Type | Aluminum Pressure Line and Load Terminal |
| Approval | UL 489- CSA |
| Model | C- GHB |
| Additional Information | Includes Line and Load Terminal- Non-Interchangeable Trip Unit- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660 |
| Features/Benefits | All Two and Three-pole Circuit Breakers are of the Common Trip Type- on all Three-phase Delta (240 V) Grounded B Phase Applications- refer to Eaton- All G-Frame Circuit Breakers are Suitable for Reverse Feed Use- HACR Rated |
Additional information
| Weight | 3 lbs |
|---|---|
| Condition | New |
| GTIN |
