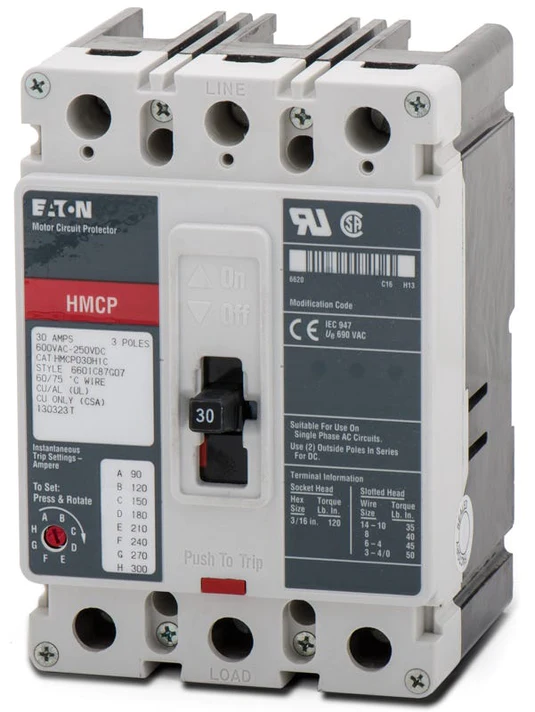

FavoriteHMCP030H1C – Eaton – Molded Case Circuit Breaker Feed-Thru – 30 Amp – 3 Pole – 600 Volt
$393.99
Description
Cutler Hammer HMCP C series three pole 30 ampere feed-thru molded case circuit breaker with maximum voltage rating of 600V tripping method magnetic only magnetic range 90-300A complete with non-interchangeable trip with (I) Instantaneous Protection Only standard line & load side lug terminals.
Specifications
| Type | Molded Case- Magnetic |
| Frame Type | F |
| Voltage Rating | 600 Volt AC- 250 Volt DC |
| Maximum AC Voltage Rating | 600 Volt AC |
| Maximum DC Voltage Rating | 250 Volt DC |
| Current Rating | 30 Amp |
| Number of Poles | 3 |
| Trip Setting | 90 to 300 Amp |
| Starter Size | NEMA 1 |
| Motor FLA | 6.9 to 25.2 Amp |
| Terminal Type | Non-Aluminum Line and Load Terminal |
| Approval | UL 489- CSA C22.2- CE |
| Additional Information | Applicable Standard IEC 157-1 |
Additional information
| Weight | 6 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
