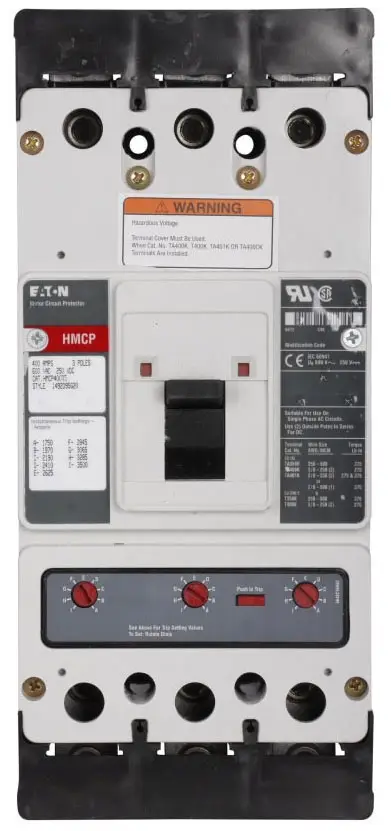

FavoriteHMCP400W5C – Eaton – Molded Case Circuit Breaker Feed-Thru – 400 Amp – 3 Pole – 600 Volt
$1,995.99
Description
Cutler Hammer molded case circuit breaker three phase and three pole 400 Ampere K frame type circuit breaker compact easy to install built in features like molded case magnectic only feed-thru connection (I) Instantaneous trip functions complete non-aluminum line & load side lug terminals magnetic only molded case circuit breakers
Specifications
| Type | Molded Case- Magnetic |
| Frame Type | K |
| Voltage Rating | 600 Volt AC- 250 Volt DC |
| Maximum AC Voltage Rating | 600 Volt |
| Maximum DC Voltage Rating | 250 Volt |
| Current Rating | 400 Amp |
| Number of Poles | 3 |
| Trip Setting | 1250 to 2500 Amp |
| Starter Size | NEMA 5 |
| Motor FLA | 96.2 to 204 Amp |
| Terminal Type | Line and Load |
| Size | 4.1 Inch Length x 5.5 Inch Width x 10.13 Inch Height |
| Approval | UL 489- CSA C22.2- CE |
| Model | C- HMCP |
| Additional Information | Applicable Standard IEC 157-1 |
Additional information
| Weight | 18 lbs |
|---|---|
| Condition | New |
| GTIN |
