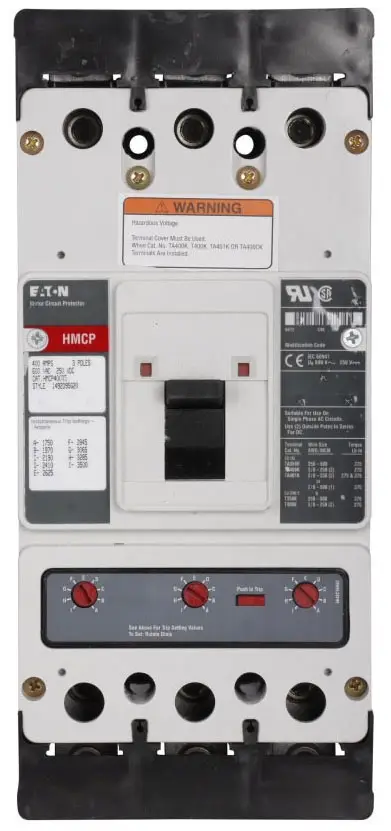

HMCP400X5C - Eaton - Molded Case Circuit Breaker Feed-Thru - 400 Amp - 3 Pole - 600 Volt
In stock
Favorite Favorite

HMCP400X5C – Eaton – Molded Case Circuit Breaker Feed-Thru – 400 Amp – 3 Pole – 600 Volt

$1,885.99

SKU: HMCP400X5C Categories: ,

Description

Cutler Hammer molded case circuit breaker three phase and three pole 400 Ampere K frame type circuit breaker compact easy to install built in features like molded case magnectic only feed-thru connection (I) Instantaneous trip functions complete with non-aluminum line & load side lug terminals magnetic only molded case circuit breakers

Specifications

Type Molded Case- Magnetic
Frame Type K
Voltage Rating 600 Volt AC- 250 Volt DC
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 400 Amp
Number of Poles 3
Trip Setting 2000 to 4000 Amp
Starter Size NEMA 5
Motor FLA 153.9 to 326.9 Amp
Terminal Type Non-Aluminum Line and Load Terminal
Size 4.1 Inch Width x 5.5 Inch Depth x 10.13 Inch Height
Approval UL 489- CSA C22.2- CE
Model C- HMCP
Additional Information RoHS/ATEX Compliant- Applicable Standard IEC 157-1

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Additional information

Weight 20 lbs
Condition

New
GTIN
