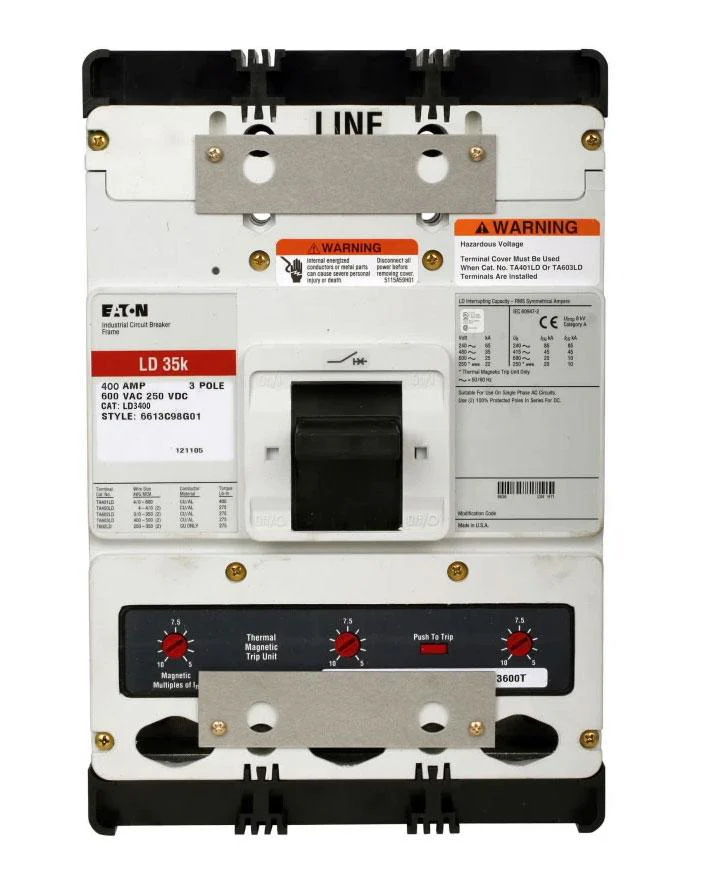

The Cutler Hammer LD3400 is a molded case circuit breaker. This type LD circuit breaker is a member of The series C family. The LD3400 is a 3 pole, 600 Volt, 400 amp rated circuit breaker, with an AIC rating of 35kA@480V and is manufactured by Cutler Hammer, Eaton and Westinghouse. The LD3400 uses a feed-thru connection and includes thermal magnetic protection. The trip unit features LI – Long-Time and Instantaneous functions.
Specifications
Type
Molded Case- Thermal Magnetic
Frame Type
LD
Voltage Rating
600 Volt AC at 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating
600 Volt
Maximum DC Voltage Rating
250 Volt
Current Rating
400 Amp at 40 Deg C
Number of Poles
3
Interrupting Rating
35 Kiloamp at 480 Volt AC
Terminal Type
Aluminum/Copper Standard Pressure Line and Load Terminal
Size
8.25 Inch Width x 4.06 Inch Depth x 10.75 Inch Height
Approval
UL 489- CE
Model
C- LD
Additional Information
Includes Interchangeable Trip Unit- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660
Features/Benefits
All Eaton L-frame Circuit Breakers are HACR Rated- L-frame Circuit Breakers with Non-interchangeable Trip Units are Suitable for Reverse Feed Use
