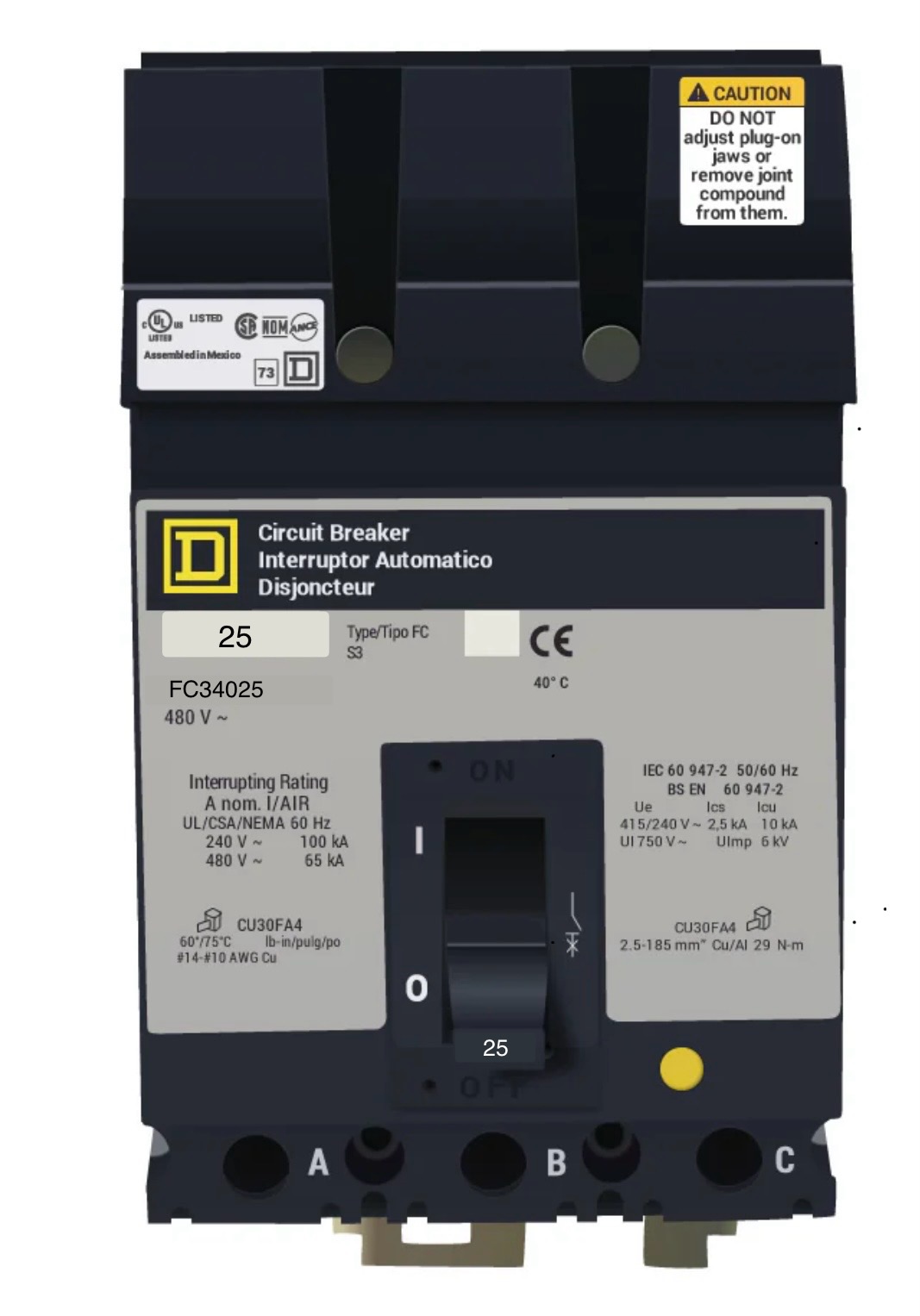

FC34025 - Square D - 25 Amp Molded Case Circuit Breaker Plug-In - 25 Amp - 3 Pole - 480 Volt

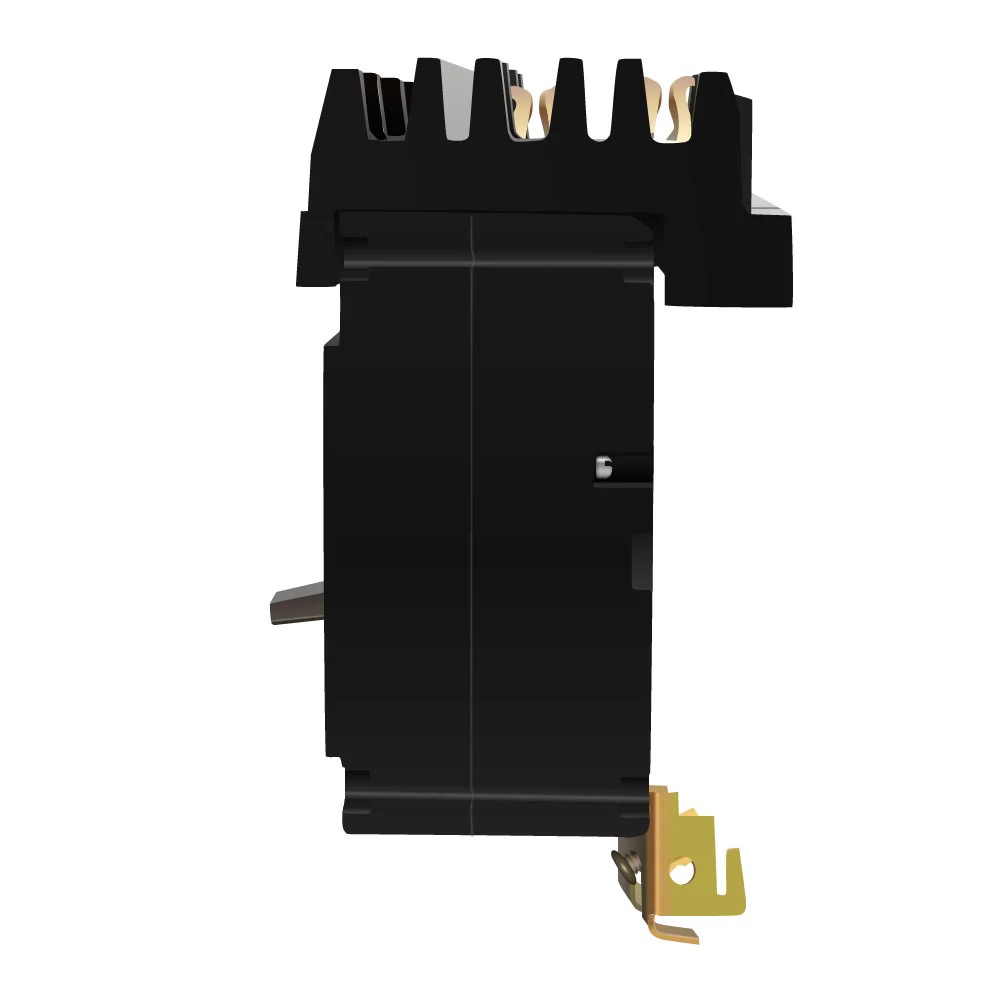

FC34025 - Square D - 25 Amp Molded Case Circuit Breaker Plug-In - 25 Amp - 3 Pole - 480 Volt - Image 2
FC34025 - Square D - 25 Amp Molded Case Circuit Breaker Plug-In - 25 Amp - 3 Pole - 480 Volt - Image 3
In stock
Favorite Favorite

FC34025 – Square D – 25 Amp Molded Case Circuit Breaker Plug-In – 25 Amp – 3 Pole – 480 Volt

$789.99

SKU: FC34025 Categories: , ,

Description

The Square D FC34025 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 25 Amps and a voltage rating of 480VAC. It has an interrupting rating of 65kAIC@480V. The FC34025 has a I-Line style plug-in connection type and includes long time and instantaneous trip functions.

Specifications

Brand Square D
Series FC
Amperage 25
Voltage 480VAC
Poles 3
Phase 3
Interrupting Rating 65kAIC@480V
Frame Type FC
Connection Type I-Line Style Plug-In
Protection Thermal Magnetic
Functions Long Time and Instantaneous Trip
Terminal Connection Line and Load Side Lug
Wire Gauge 14 to 4 AWG Aluminum/Copper
Temperature Rating 40°C
Mpn FC34025

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Additional information

Weight 20 lbs
Condition

New
GTIN
