FavoritePrice range: $444.99 through $999.99
| Brand | Square D |
| Series | FC |
| Amperage | 90 |
| Voltage | 480VAC |
| Poles | 3 |
| Phase | 3 |
| Approval | UL, CSA |
| Interrupting Rating | 65kAIC at 480V |
| Frame Type | FC |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous Trip |
| Temperature Rating | 40 °C |
| Mpn | FC34090 |

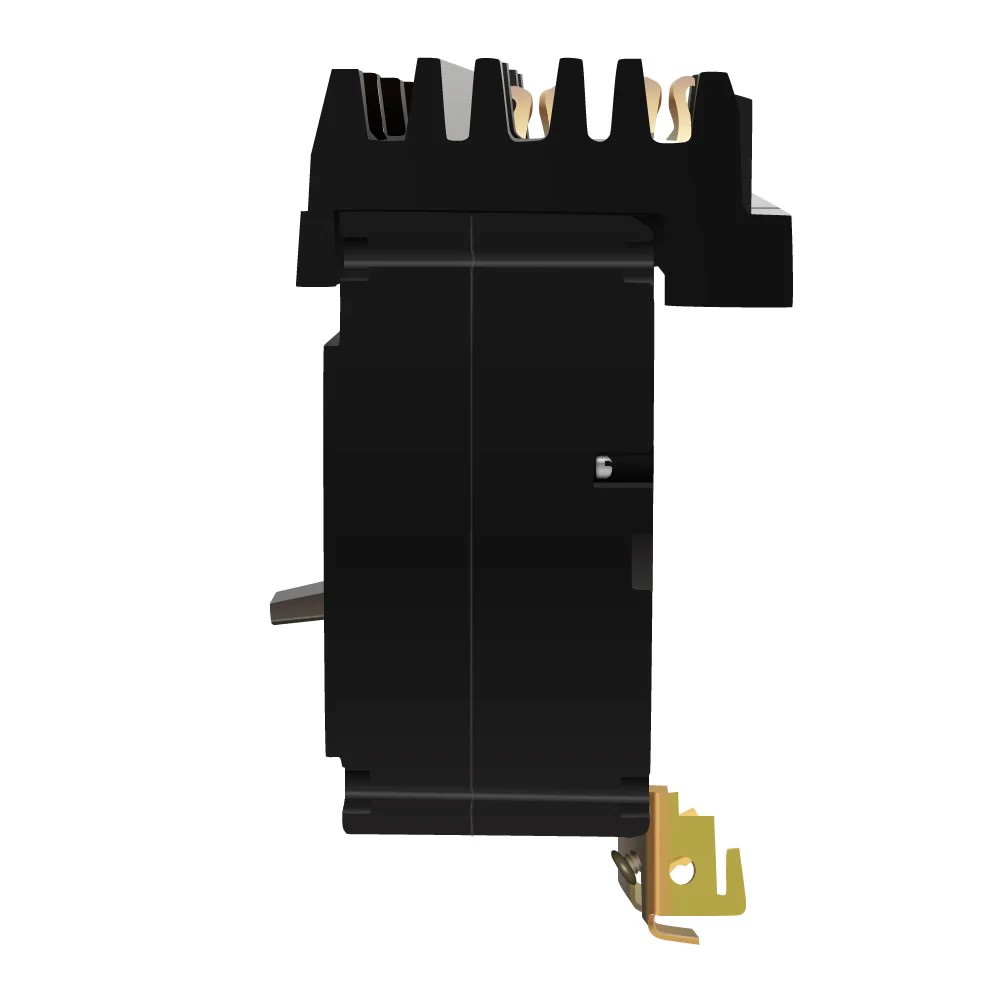

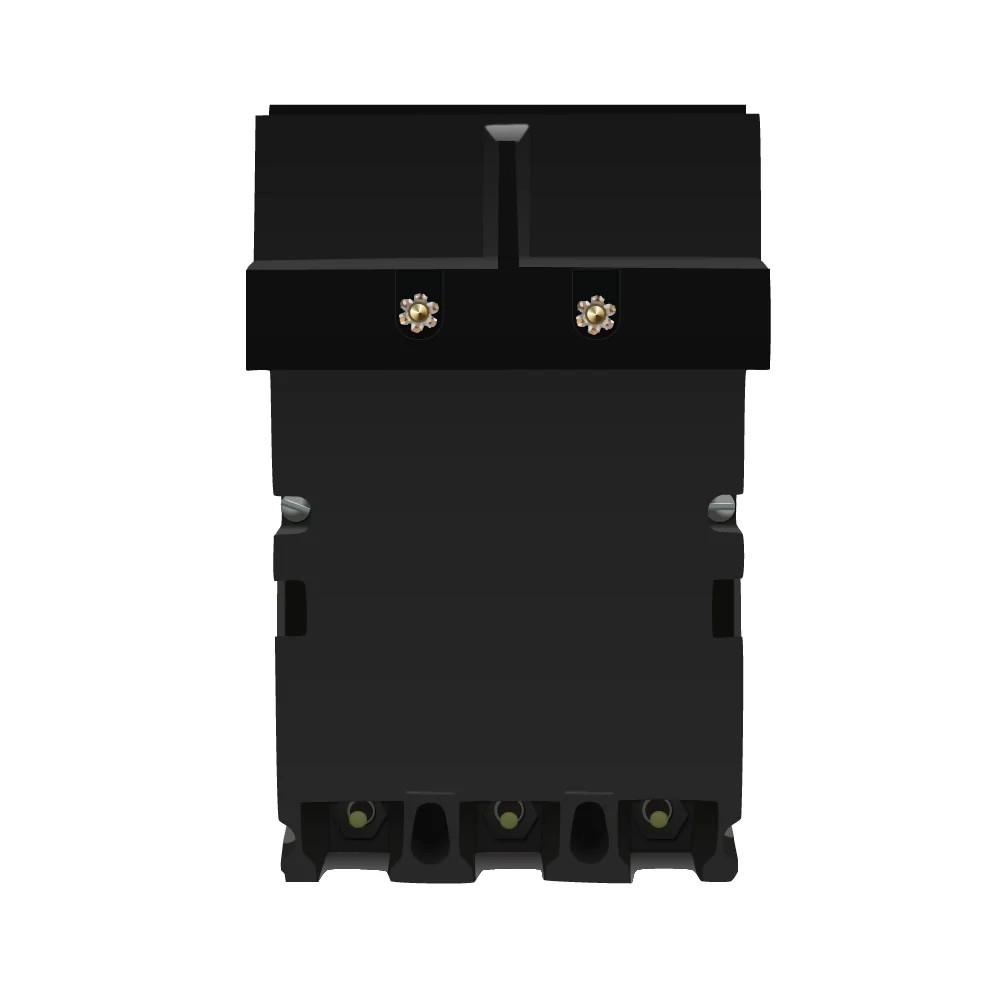

The Square D FC34090 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 480VAC. It has an interrupting rating of 65kAIC at 480V. The FC34090 has an I-Line style plug-in connection type and includes LI – long-time and instantaneous trip functions.
| Weight | 20 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
