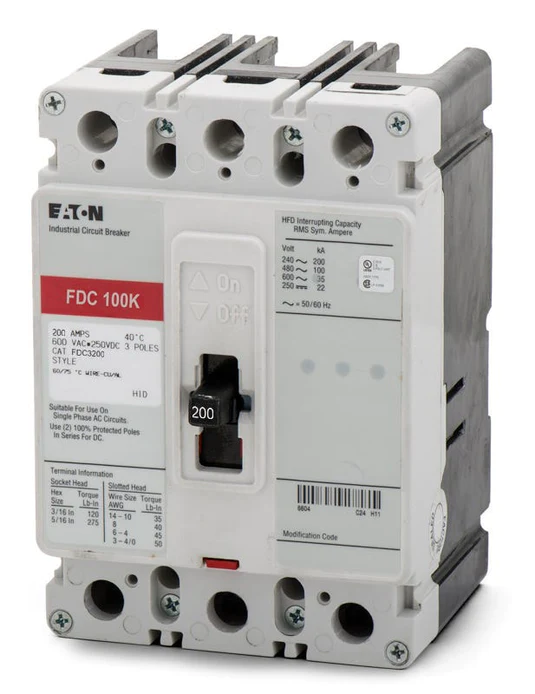

FavoriteFDC3200 – Eaton – Molded Case Circuit Breaker Bolt-On – 200 Amp – 3 Pole – 600 Volt
$1,999.99
Description
The Eaton FDC3200 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 100kAIC at 480VAC, 200kAIC at 240VAC. The FDC3200 has a panel mounting type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton |
| Series | C |
| Amperage | 200 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Panel |
| Approval | UL |
| Interrupting Rating | 100kAIC at 480VAC, 200kAIC at 240VAC |
| Frame Type | FD |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Standards | HACR |
| Temperature Rating | 40°C |
| Circuit Breaker Type | FDC |
| Actuator Type | Handle |
| Mpn | FDC3200 |
Additional information
| Weight | 6 lbs |
|---|---|
| Condition | New |
| GTIN |
