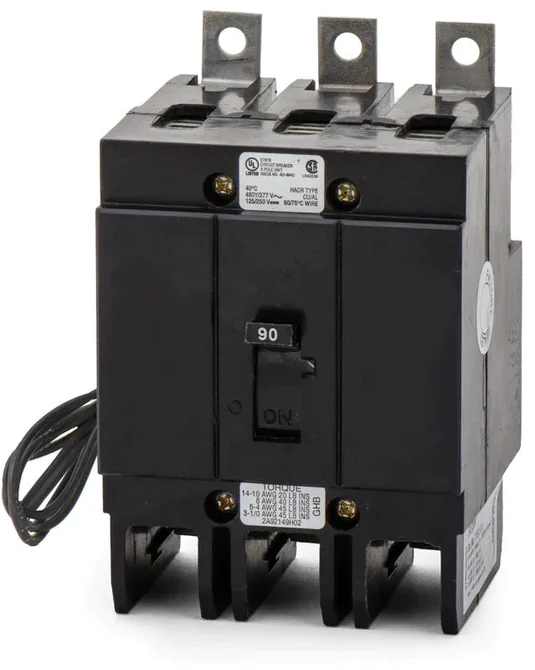

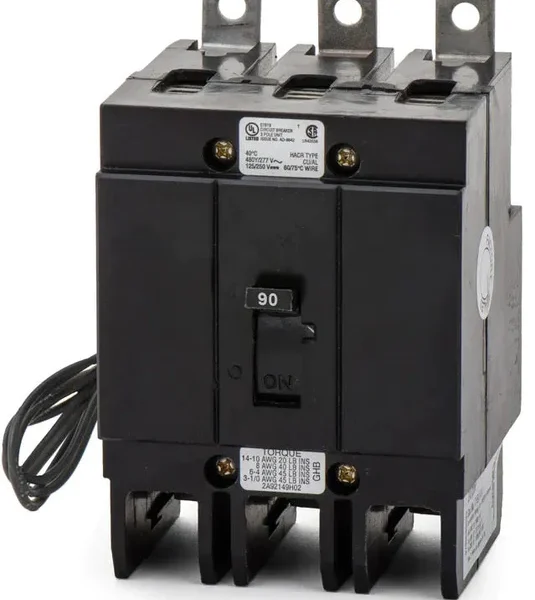

FavoriteGHB3090S1 – Cutler Hammer Bolt-On 480V 90A 3 pole circuit breaker 120V Shunt Trip
$749.99
Description
The Eaton GHB3090S1 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 480Y/277VAC, 125/250VDC. It has an interrupting rating of 14kAIC at 480Y/277VAC, 65kAIC at 240VAC. The GHB3090S1 has a panel mounting type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton |
| Series | C |
| Amperage | 90 |
| Voltage | 480Y/277VAC, 125/250VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Panel |
| Approval | UL |
| Interrupting Rating | 14kAIC at 480Y/277VAC, 65kAIC at 240VAC |
| Frame Type | GHB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Wire Gauge | 10 to 1/0 AWG |
| Standards | IEEE |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GHB |
| Mpn | GHB3090S1 |
Additional information
| Weight | 4 lbs |
|---|---|
| Condition | New |
