FavoriteGHBGFEP1020 – Eaton – Molded Case Circuit Breaker Bolt-On – 20 Amp – 1 Pole – 480 Volt
$435.99
Description

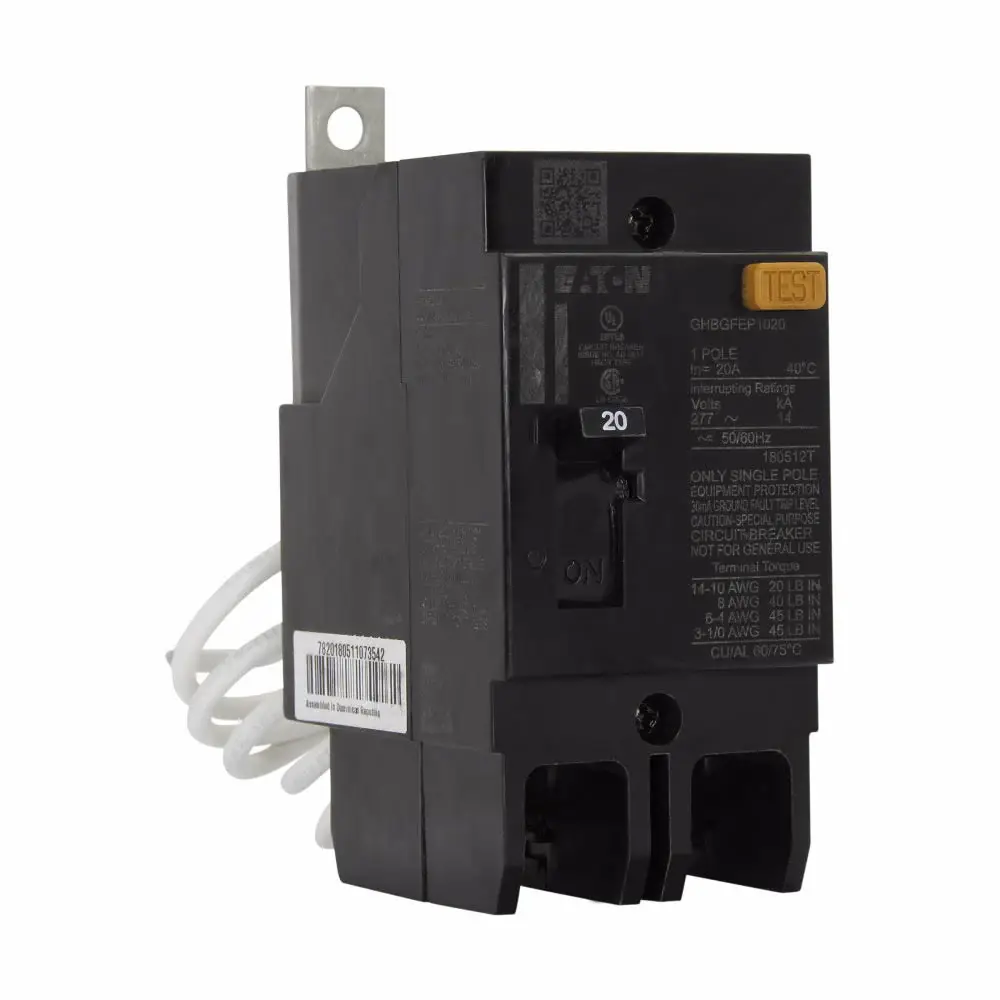

The Eaton GHBGFEP1020 is a 1 Pole molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 480Y/277VAC, 125/250VDC. It has an interrupting rating of 14kAIC at 277VAC. The GHBGFEP1020 has a panel mounting type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton |
| Series | C |
| Amperage | 20 |
| Voltage | 480Y/277VAC, 125/250VDC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Panel |
| Approval | UL, CSA, IEEE |
| Interrupting Rating | 14kAIC at 277VAC |
| Frame Type | GHB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and load |
| Wire Gauge | 14 to 10 AWG |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Action | Blow Open |
| Mpn | GHBGFEP1020 |
Additional information
| Weight | 3 lbs |
|---|---|
| Condition | New |
| GTIN |
