In stock

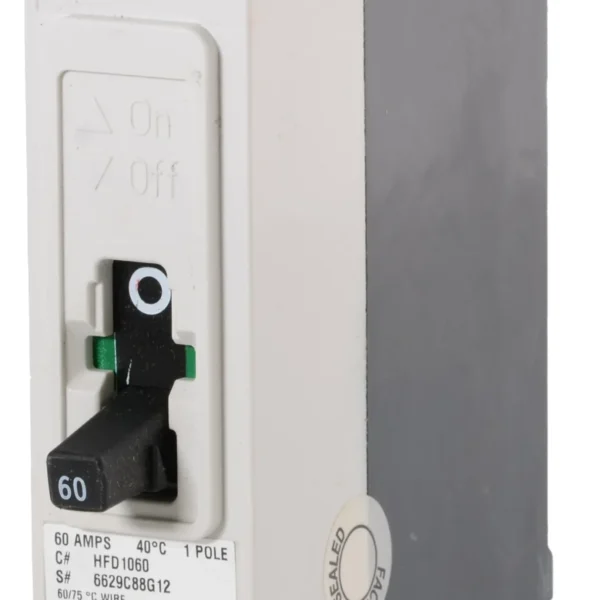

FavoriteHFD1060 – Eaton – Molded Case Circuit Breaker Bolt-On – 60 Amp – 1 Pole – 277 Volt
$245.99
Description
The Eaton HFD1060 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 277/347/600VAC, 125VDC. It has an interrupting rating of 100kAIC at 240VAC, 65kAIC at 480VAC. The HFD1060 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton |
| Series | C |
| Amperage | 60 |
| Voltage | 277/347/600VAC, 125VDC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Panel |
| Approval | UL |
| Interrupting Rating | 100kAIC at 240VAC, 65kAIC at 480VAC |
| Frame Type | HFD |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | HFD |
Additional information
| Weight | 1.5 lbs |
|---|---|
| Condition | New |
| GTIN |
