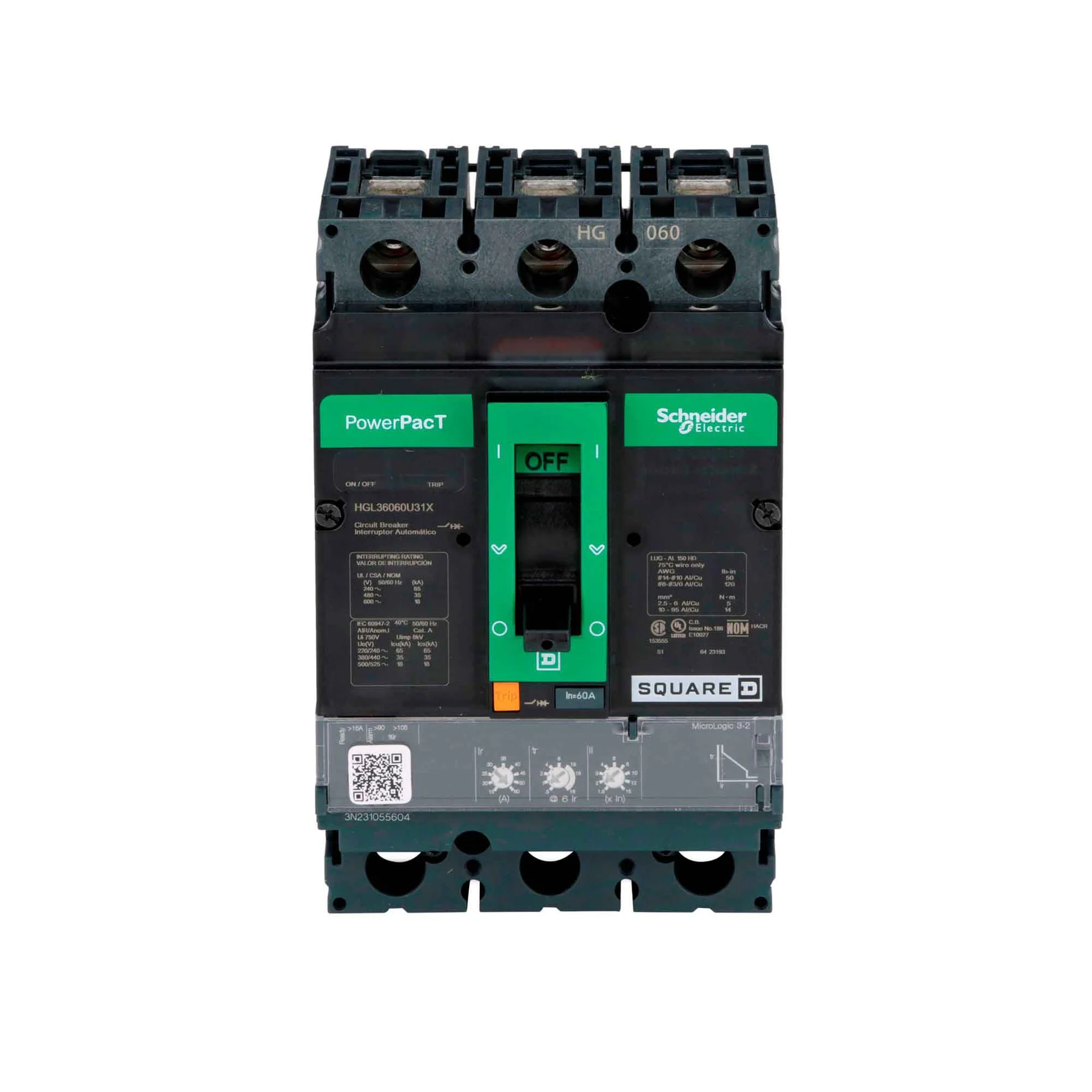

FavoriteHGL36060U31X – Square D – Molded Case Circuit Breakers Feed-Thru – 60 Amp – 3 Pole – 600 V
$914.99
Description
The Square D HGL36060U31X is a 3 Pole solid state molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 240VAC, 35kAIC at 480VAC, 18kAIC at 600VAC. The HGL36060U31X has a feed-thru connection type and includes LI - long-time and instantaneous trip function.
Specifications
| Brand | Square D |
| Series | PowerPacT H |
| Amperage | 60 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Unit |
| Approval | UL, CSA, CE, NEMA, NOM, IEC |
| Interrupting Rating | 65kAIC at 240VAC, 35kAIC at 480VAC, 18kAIC at 600VAC |
| Frame Type | HGL |
| Connection Type | Feed-Thru |
| Protection | Solid State |
| Functions | LI – Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 3.4 |
| Width (in) | 4.09 |
| Height (in) | 6.4 |
| Wire Gauge | AWG 14 to AWG 3/0, Aluminum/Copper |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Actuator Type | Toggle |
| Mpn | HGL36060U31X |
Additional information
| Weight | 6 lbs |
|---|---|
| Condition | New |
| GTIN |
