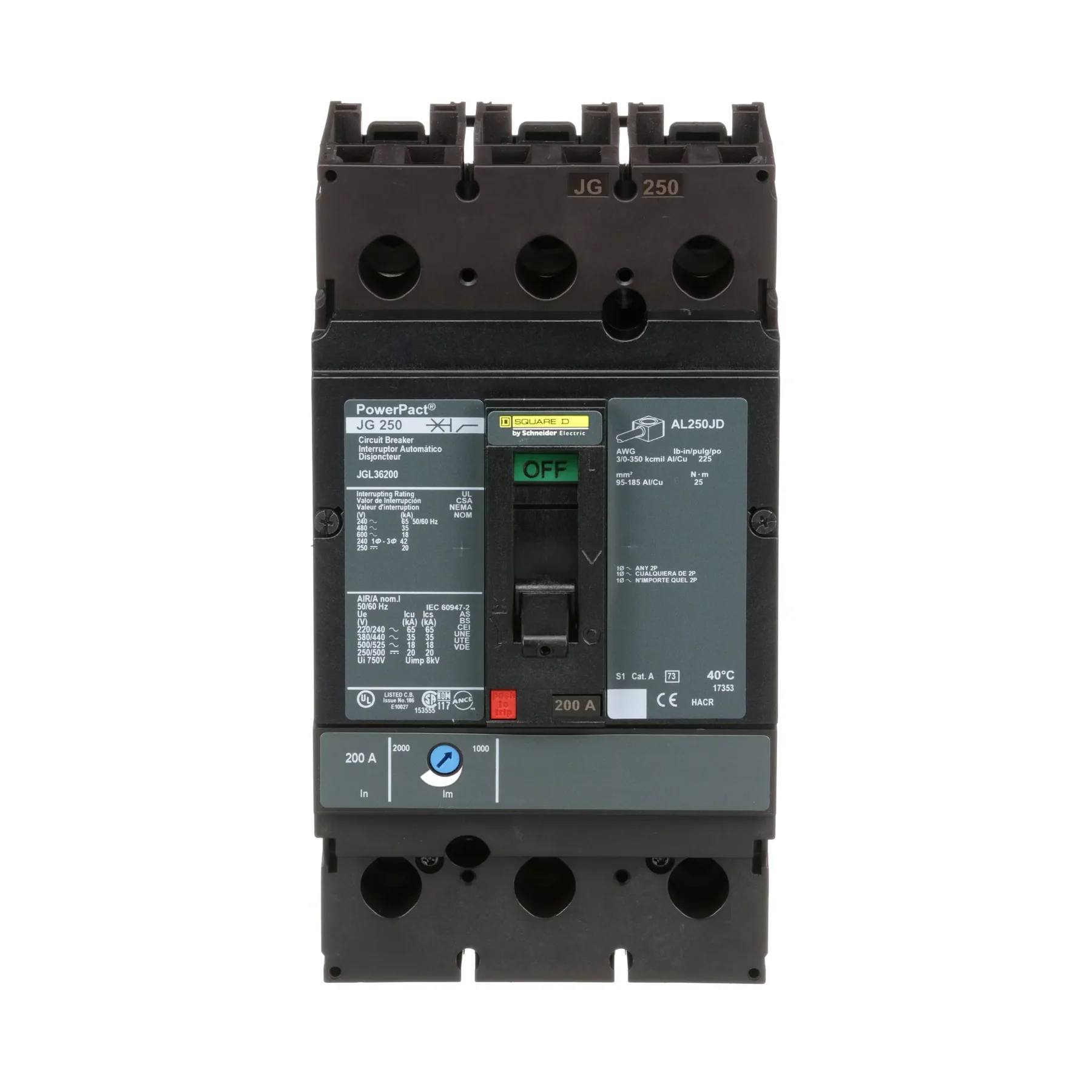

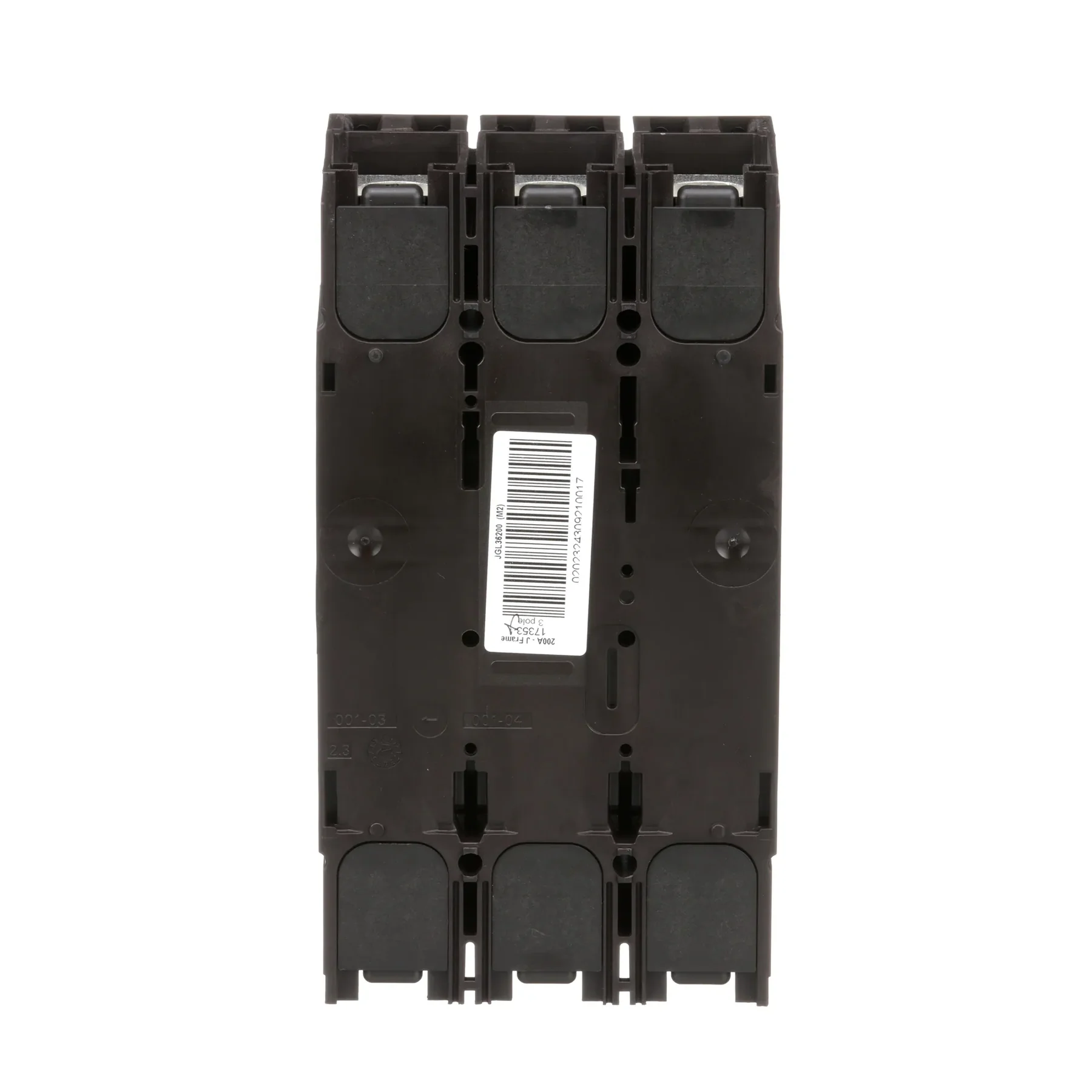

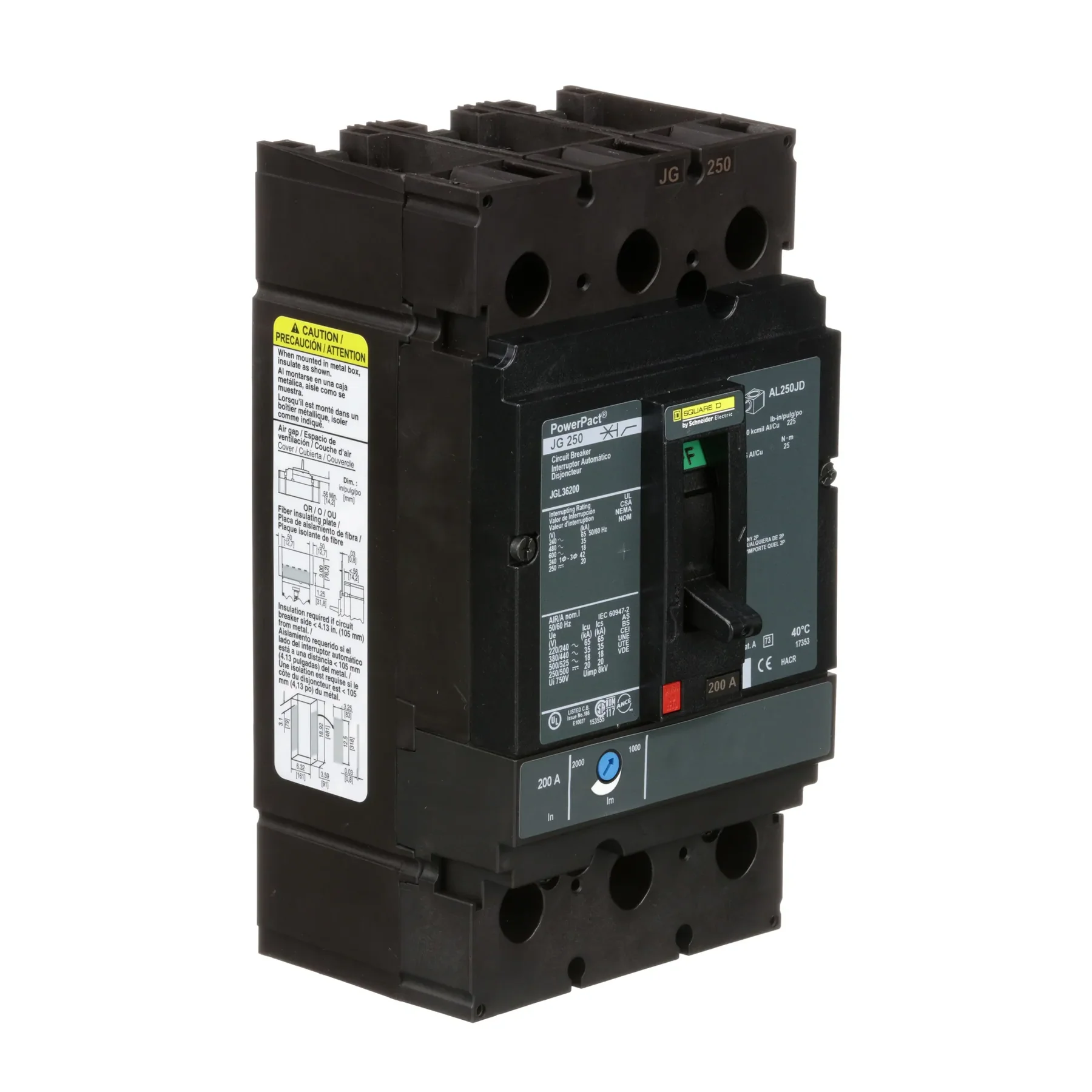

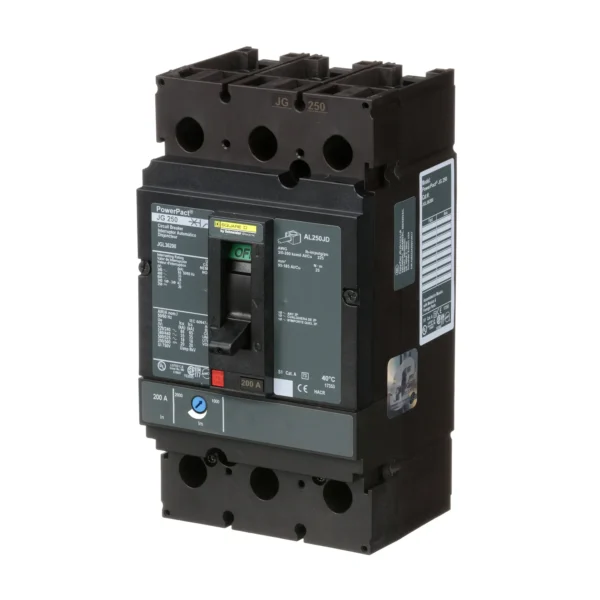

FavoriteJGL36200 – Square D – Molded Case Circuit Breaker Feed-Thru – 200 Amp – 3 Pole – 600 Volt
$894.99
Description
The Square D JGL36200 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 600VAC, 250/500VDC. It has an interrupting rating of 35kAIC at 480VAC, 65kAIC at 240VAC. The JGL36200 has a feed-thru connection type and includes LI - long-time and instantaneous trip functions.
Specifications
| Brand | Square D |
| Series | PowerPacT J |
| Amperage | 200 |
| Voltage | 600VAC, 250/500VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Unit |
| Approval | CE, UL, CSA, NEMA, NOM, IEC |
| Interrupting Rating | 35kAIC at 480VAC, 65kAIC at 240VAC |
| Frame Type | JGL |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 3.4 |
| Width (in) | 4.09 |
| Height (in) | 7.5 |
| Wire Gauge | AWG 3/0 to 350KCmil, Aluminum/Copper |
| For Use With | I Line Panelboards |
| Standards | RoHS, REACh, HACR |
| Temperature Rating | -25 to 70 °C |
| Circuit Breaker Type | Standard |
| Breaker Feature | Mercury Free, PVC Free |
| Actuator Type | Toggle |
| Max Wire Size | 350MCM |
| Min Wire Size | AWG 3 |
| Mpn | JGL36200 |
Additional information
| Weight | 10 lbs |
|---|---|
| Condition | New |
| GTIN |
