LGA36400U31X - Square D I-Line Style Plug-In 600V 400A 3 pole circuit breaker 35kA@480V
In stock
Favorite Favorite

LGA36400U31X – Square D I-Line Style Plug-In 600V 400A 3 pole circuit breaker 35kA@480V

$1,599.99

SKU: LGA36400U31X Categories: ,

Description

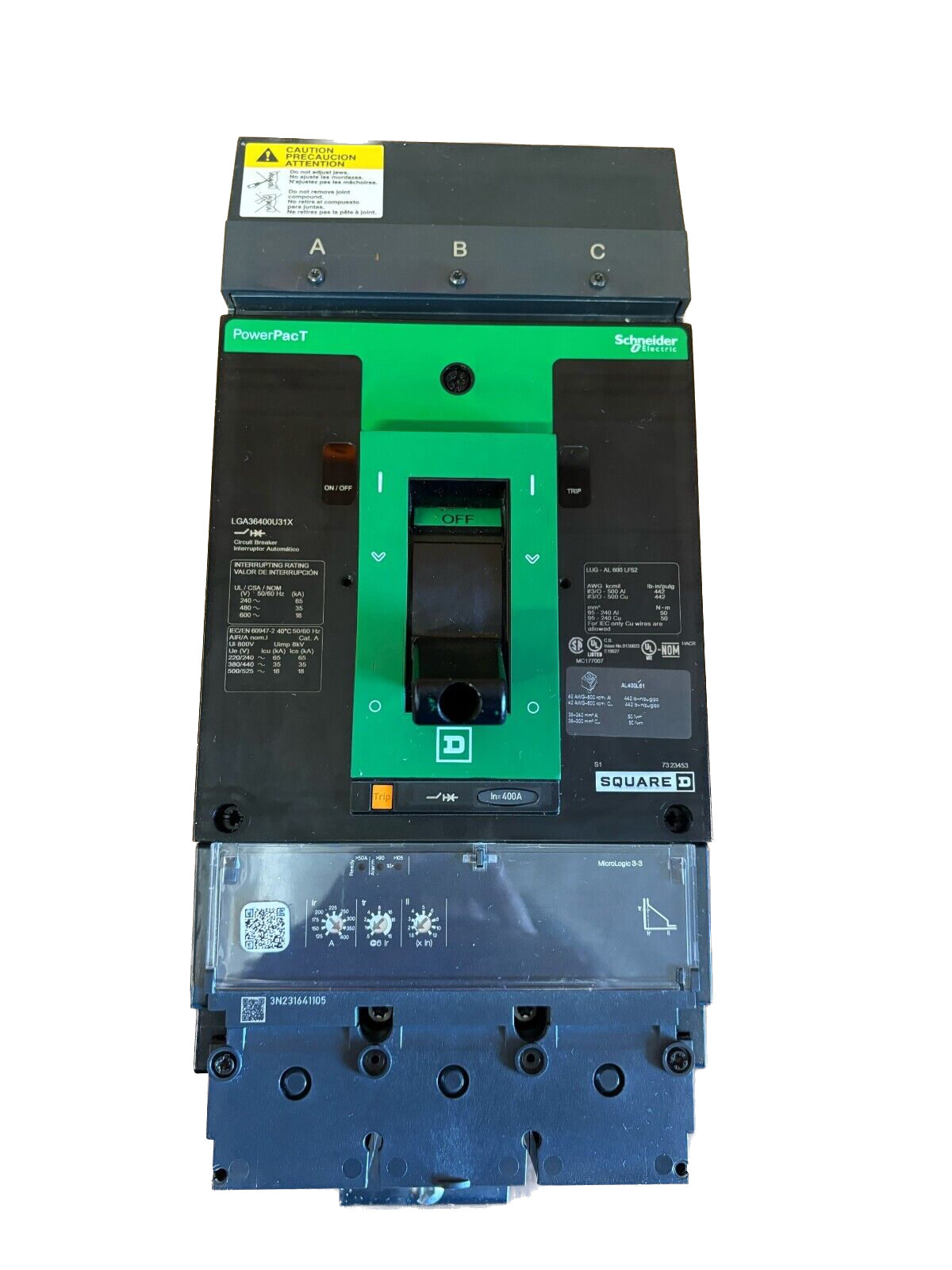

The Square D LGA36400U31X is a 3 Pole solid state molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kA at 240VAC, 35kA at 480VAC, 18kA at 600VAC. The LGA36400U31X has a I-Line mounting type and includes long time and instantaneous trip functions.

Specifications

Brand Square D
Series LGA
Amperage 400 A
Voltage 600 V AC
Poles 3
Phase 3
Mounting Type I-Line
Approval CSA,CCC,IEC,CE,UL,NMX,NEMA
Interrupting Rating 65 kA at 240 V AC/35 kA 480 V AC/18 kA 600 V AC
Frame Type LGA
Connection Type I-Line Connection Linelugs Load
Functions Long Time and Instantaneous Trip
Terminal Connection Lugs load
Wire Gauge AWG 3/0 – 500 kcmil Aluminium/Copper)2
For Use With 2P Applications
Temperature Rating -13 Deg F and 158 Deg F (-25 Deg C and +70 Deg C)
Circuit Breaker Type MCCB

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Additional information

Weight 18 lbs
Condition

Used
