LH36150 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt
In stock
Favorite Favorite

LH36150 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 150 Amp – 3 Pole – 600 Volt

$3,399.99

SKU: LH36150 Categories: , ,

Description

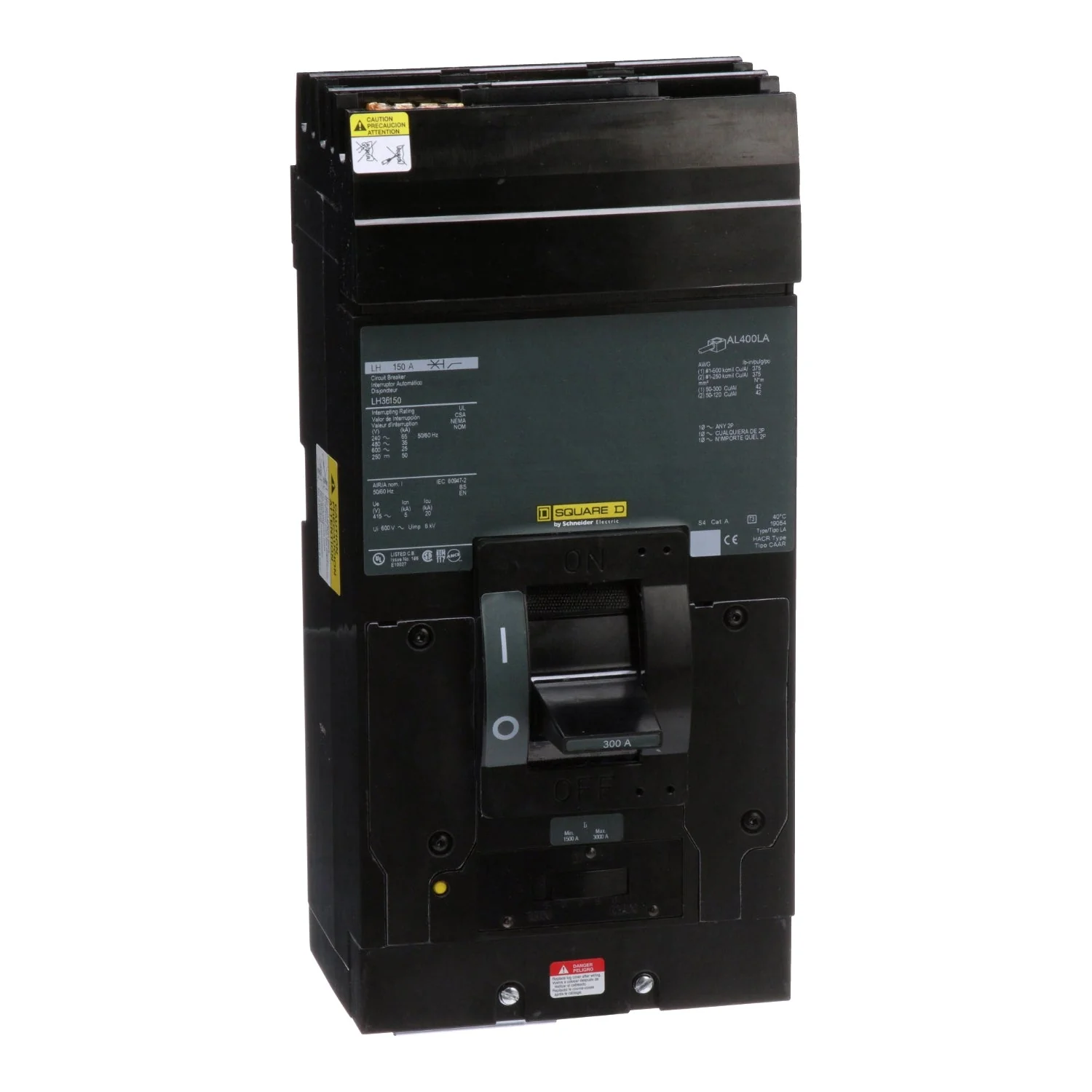

The Square D LH36150 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 600V. It has an interrupting rating of 65kA at 240VAC, 35kA at 480Y/277VAC, 25kA at 600Y/347VAC, 50kA at 250VDC, 20kA at 500VDC. The LH36150 has a I-Line style plug-in connection type and includes LI - long time and instantaneous functions.

Specifications

Brand Square D
Series LH
Amperage 150
Voltage 600
Poles 3
Phase 3
Mounting Type I-Line
Approval CSA, UL
Interrupting Rating 65 kA 240 V AC, 35 kA 480Y/277 V AC, 35 kA 480 V AC, 25 kA 600Y/347 V AC, 25 kA 600 V AC, 50 kA 250 V DC, 20 kA 500 V DC, 415 V AC
Frame Type LH
Connection Type I-Line Style Plug-In
Protection Thermal Magnetic
Functions LI – Long-Time and Instantaneous
Length (in) 4
Width (in) 6
Height (in) 12.5
Wire Gauge AWG 1, 600 kcmil Aluminium/Copper)1, AWG 1, 250 kcmil Aluminium/Copper)2
Mpn LH36150

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Additional information

Weight 16 lbs
Condition

New
GTIN
