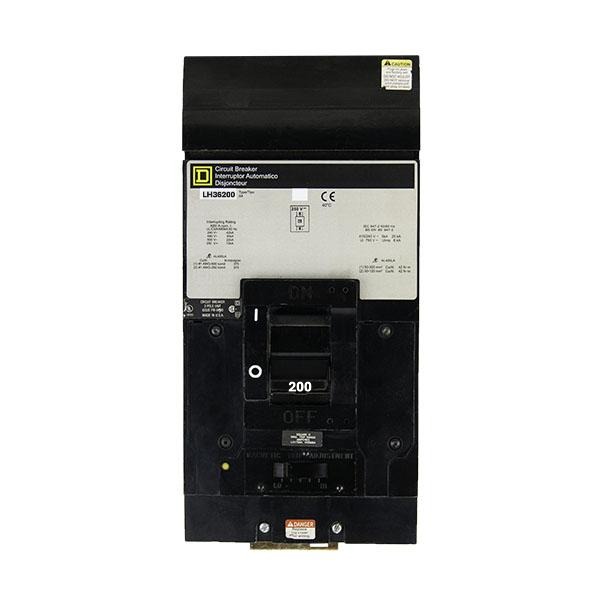

FavoriteLH36200 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 200 Amp – 3 Pole – 600 Volt
$3,199.99
Description
The Square D LH36200 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 600V. It has an interrupting rating of 65kA at 240VAC, 35kA at 480Y/277VAC, 25kA at 600Y/347VAC, 50kA at 250VDC, 20kA at 500VDC. The LH36200 has a I-Line style plug-in connection type and includes LI - long time and instantaneous functions.
Specifications
| Brand | Square D |
| Series | LH |
| Amperage | 200 |
| Voltage | 600 |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | I-Line |
| Approval | UL, CSA |
| Interrupting Rating | 65 kA 240 V AC, 35 kA 480Y/277 V AC, 35 kA 480 V AC, 25 kA 600Y/347 V AC, 25 kA 600 V AC, 415 V AC |
| Frame Type | LH |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous |
| Terminal Connection | Lugs load |
| Length (in) | 4 |
| Width (in) | 6 |
| Height (in) | 12.5 |
| Wire Gauge | AWG 1, 600 kcmil aluminium/copper)1, AWG 1, 250 kcmil aluminium/copper)2 |
| Mpn | LH36200 |
Additional information
| Weight | 18 lbs |
|---|---|
| Condition | New |
| GTIN |
