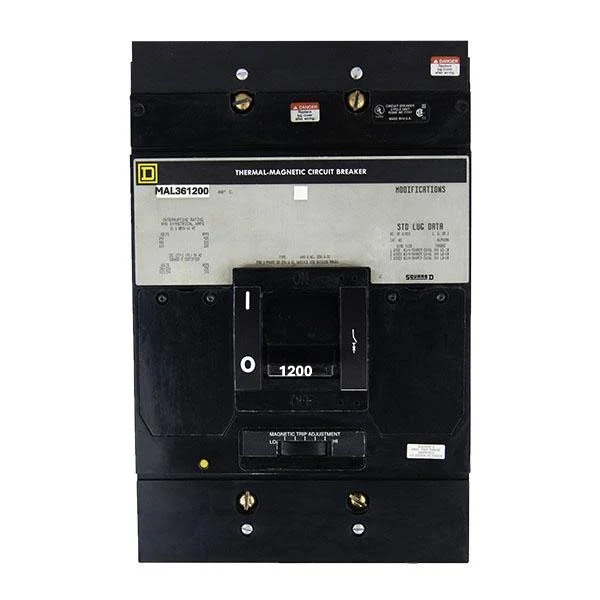

FavoriteMAL361200 – Square D – Molded Case Circuit Breakers Feed-Thru – 1200 Amp – 3 Pole – 600 V
$6,799.99
Description
The Square D MAL361200 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 1200 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 30kAIC@480V. The MAL361200 has a feed-thru connection type and includes long time, short time and instantaneous trip functions.
Specifications
| Brand | Square D |
| Series | MAL |
| Amperage | 1200 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 30kAIC@480V |
| Frame Type | MAL |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | Long Time, Short Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | 1/0 AWG–350KCmil |
| Mpn | MAL361200 |
Additional information
| Weight | 60 lbs |
|---|---|
| Condition | New |
| GTIN |
