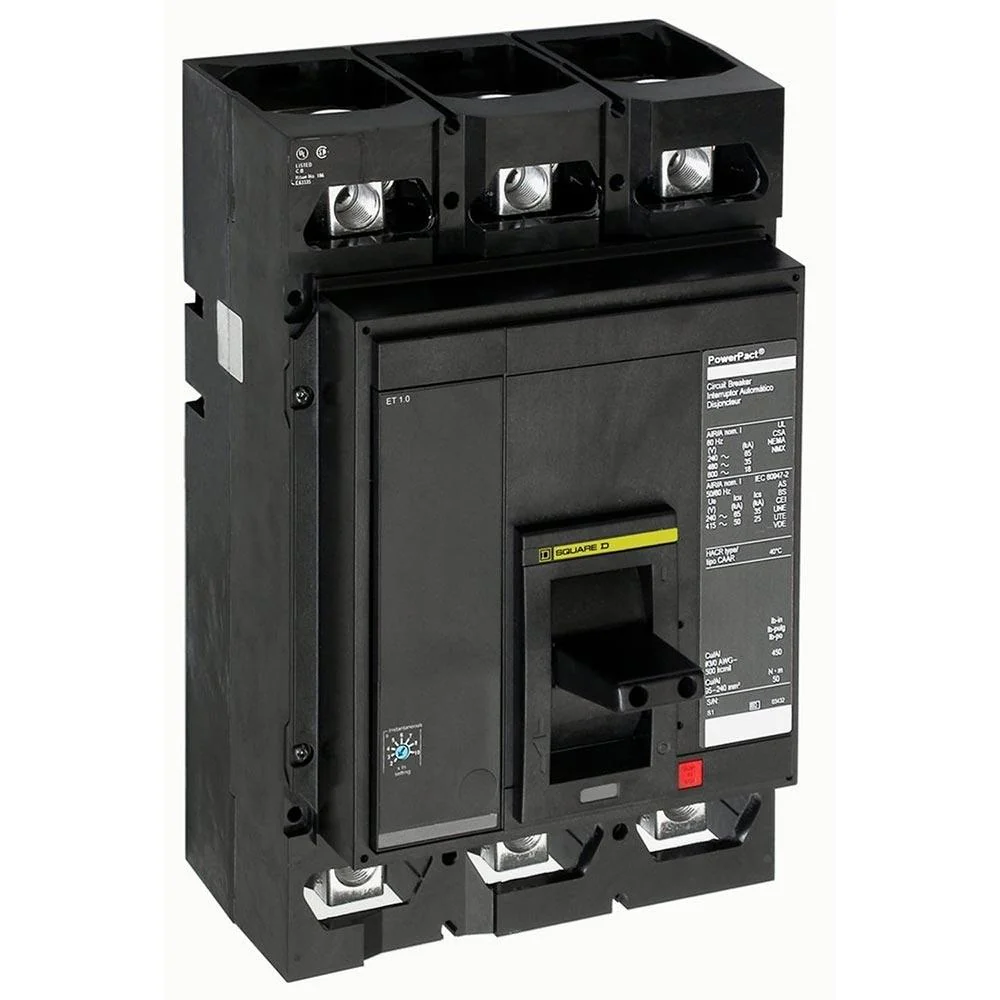

FavoriteMJL36700 – Square D – Molded Case Circuit Breaker Feed-Thru – 700 Amp – 3 Pole – 600 Volt
$5,995.99
Description
The Square D MJL36700 is a 3 Pole molded case circuit breaker with a current rating of 700 Amps and a voltage rating of 700VAC, 600VDC. It has an interrupting rating of 100kA@240VAC, 65kA@480VAC, 25kA@600VAC. The MJL36700 has a unit mounting type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
| Series | MJ |
| Amperage | 700 |
| Voltage | 600 |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Unit |
| Approval | CSA |
| Interrupting Rating | 65kA@480V |
| Frame Type | M Frame |
| Protection | Solid State |
| Width (in) | 8.3 |
| Height (in) | 12.9 |
| Mpn | MJL36700 |
Additional information
| Weight | 40 lbs |
|---|---|
| Condition | New |
| GTIN |
