In stock

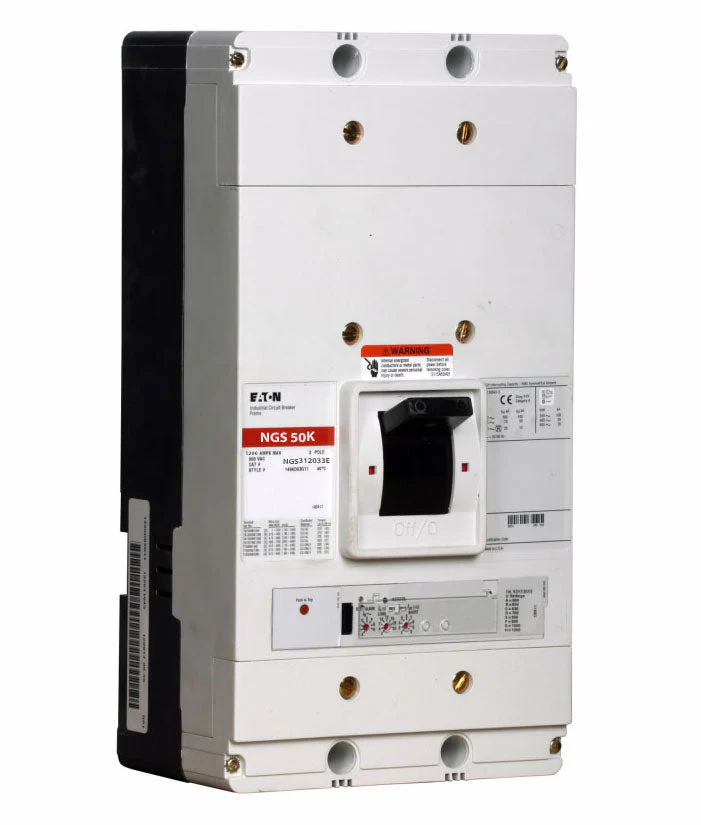

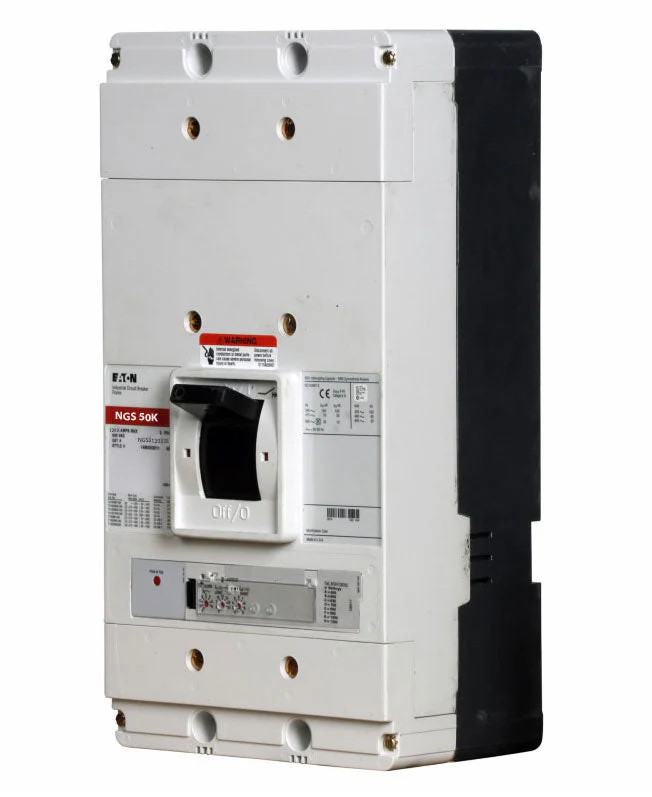

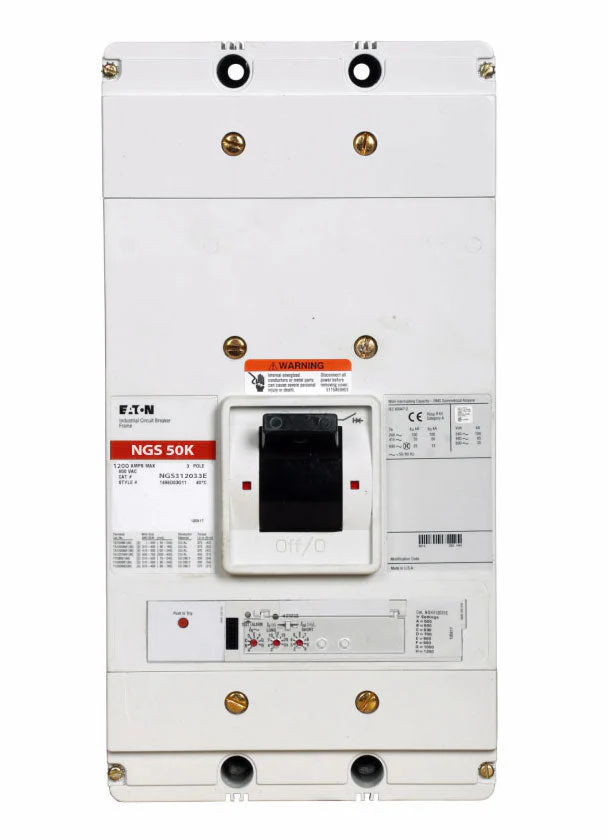

FavoriteNGS312033E – Eaton – Molded Case Circuit Breaker Bolt-On – 1200 Amp – 3 Pole – 600 Volt
$8,199.99
Description
The Eaton NGS312033E is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 1200 Amps and a voltage rating of 480VAC. It has an interrupting rating of 50kAIC at 480VAC, 85kAIC at 240VAC. The NGS312033E has a free standing mounting type and includes long time trip functions.
Specifications
| Brand | Eaton |
| Series | G |
| Amperage | 1200 |
| Voltage | 480VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Free Standing |
| Interrupting Rating | 50kAIC at 480VAC, 85kAIC at 240VAC |
| Frame Type | NG |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | Long Time Trip |
| Terminal Connection | Line and load |
| For Use With | Allen Bradley MCC, MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
| Standards | IEC, CSA, UL, HACR |
| Temperature Rating | -4 to 158°F |
| Circuit Breaker Type | NG |
| Actuator Type | Toggle |
| Max Wire Size | 500 MCM |
| Min Wire Size | 4 AWG |
| Mpn | NGS312033E |
Additional information
| Weight | 78 lbs |
|---|---|
| Condition | New |
| GTIN |
