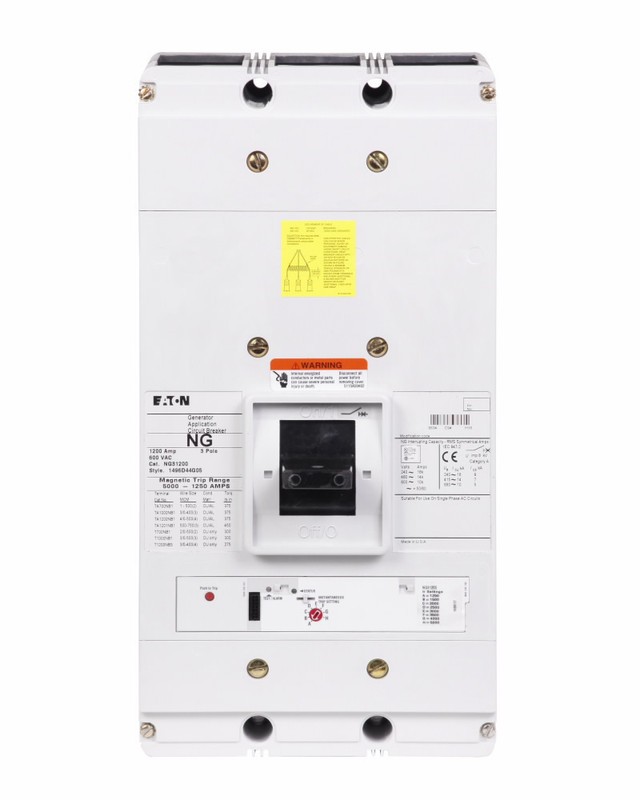

FavoriteNGS312039E – Eaton – Circuit Breaker Bolt-On – 1200 Amp – 3 Pole – 1200A, 480 Vac, 85 kAIC at 240 Vac, 50 kAIC at 480 Vac
$15,999.99
Description
Eaton Series G electronic molded case circuit breaker, NG-frame, NG, Digitrip 310 RMS, Electronic ALSIG with maint. mode trip, Three-pole, 1200A, 480 Vac, 85 kAIC at 240 Vac, 50 kAIC at 480 Vac, Line/load, Imperial, 50/60 Hz, 80% rated
Specifications
General specifications
| Product Name |
Eaton Series G electronic molded case circuit breaker
|
| Catalog Number |
NGS312039E
|
| UPC |
786685475707
|
| Product Length/Depth |
6 in
|
| Product Height |
9 in
|
| Product Width |
9 in
|
| Product Weight |
48 lb
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
HACR Rated
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
All Eaton NG-Frame circuit breakers are suitable for reverse feed use, Breakers do not ship with lugs
|
Product specifications
| Amperage Rating |
1200 A
|
| Voltage rating |
480 Vac
|
| Trip Type |
T164
|
| Circuit breaker type |
NG
|
| Rating |
80% rated
|
| Series |
Series G
|
| Terminals |
Line and load
|
| Frame |
NG
|
| Frequency rating |
50 to 60 Hz
|
| Mounting hardware |
Imperial
|
| Interrupt rating |
85 kAIC at 240 Vac
50 kAIC at 480 Vac |
| Number of poles |
Three-pole
|
| Type |
Complete breaker
|
Additional information
| Weight | 65 lbs |
|---|---|
| Condition | New |
| GTIN |
