In stock
FavoritePDG23G0070TFFJ – Eaton – Molded Case Circuit Breakers Feed-Thru – 70 Amp – 3 Pole – 600 Volt
$469.99
Description

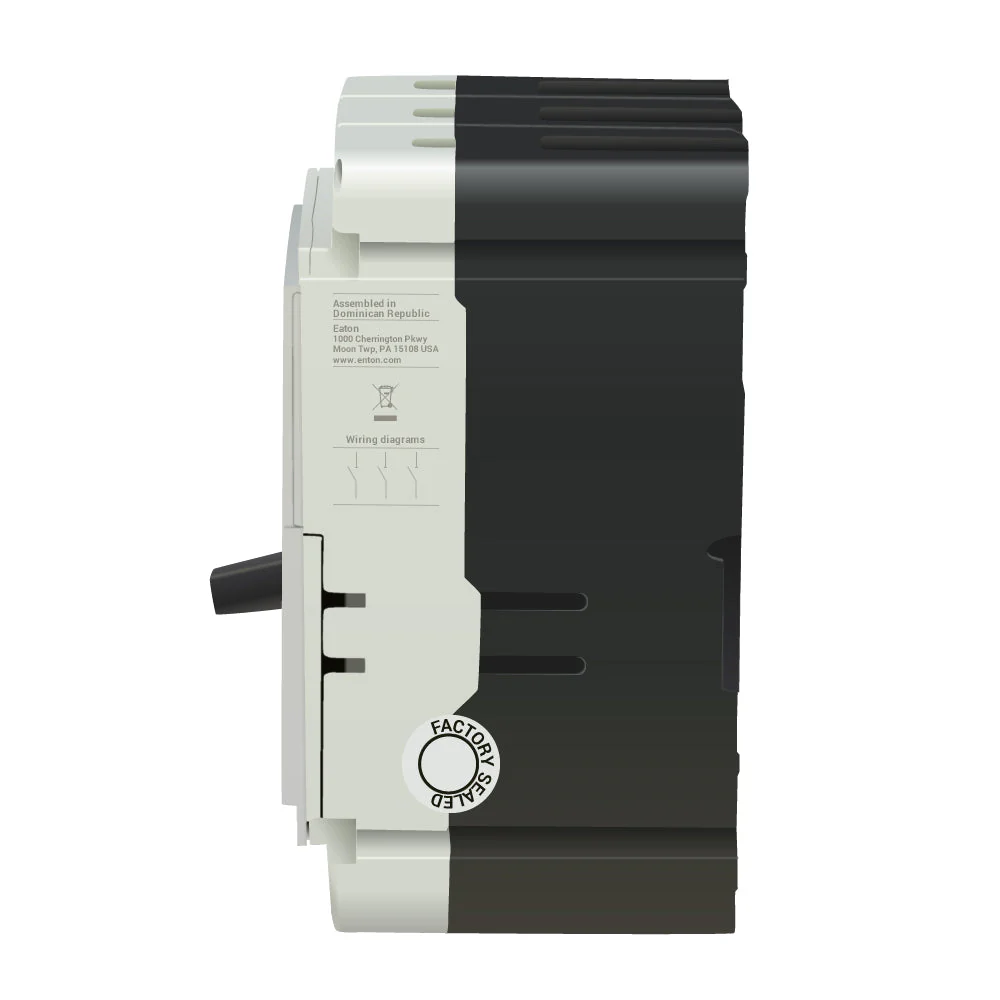

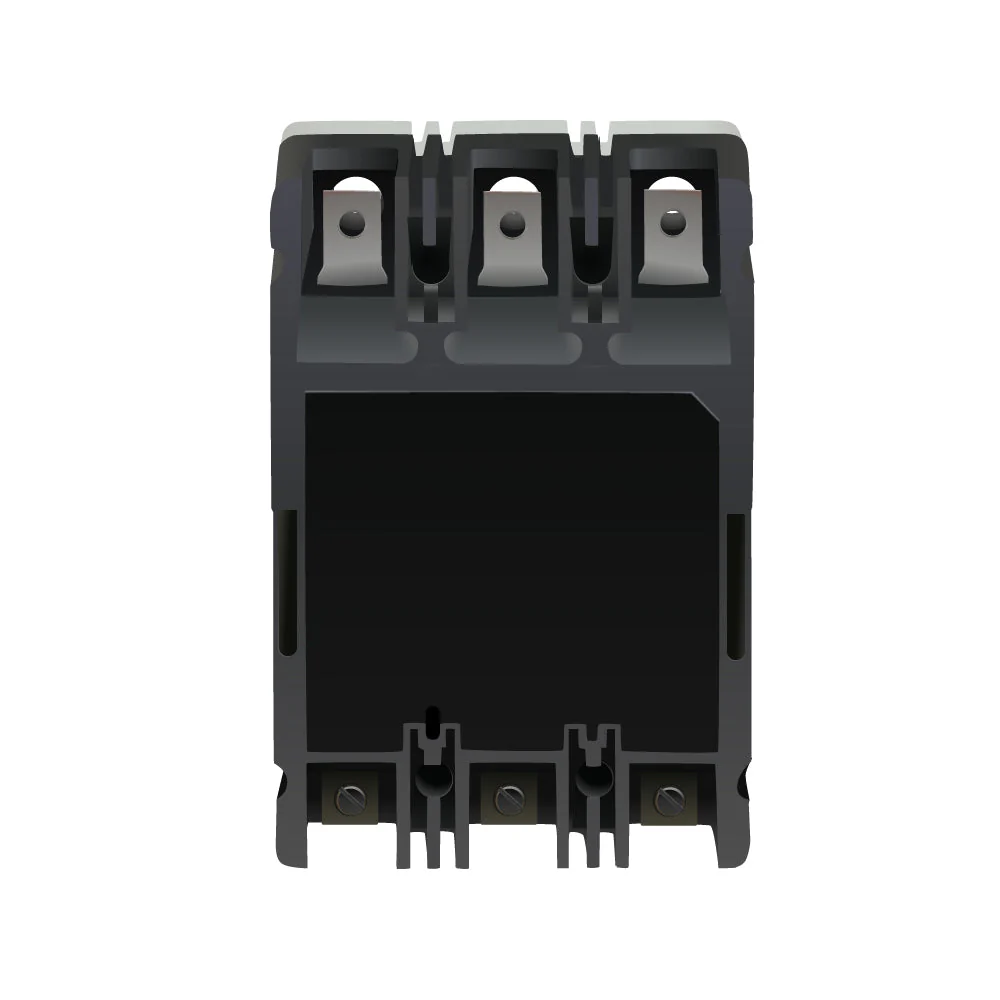

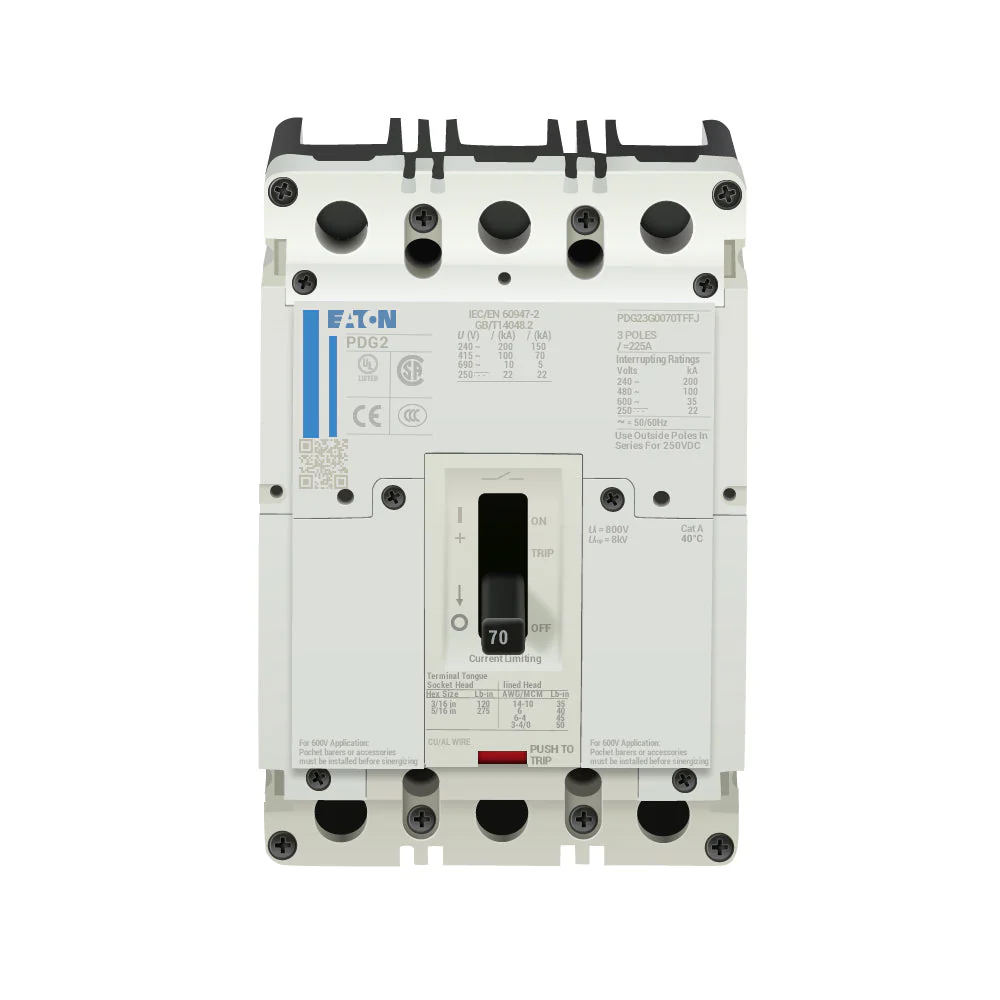

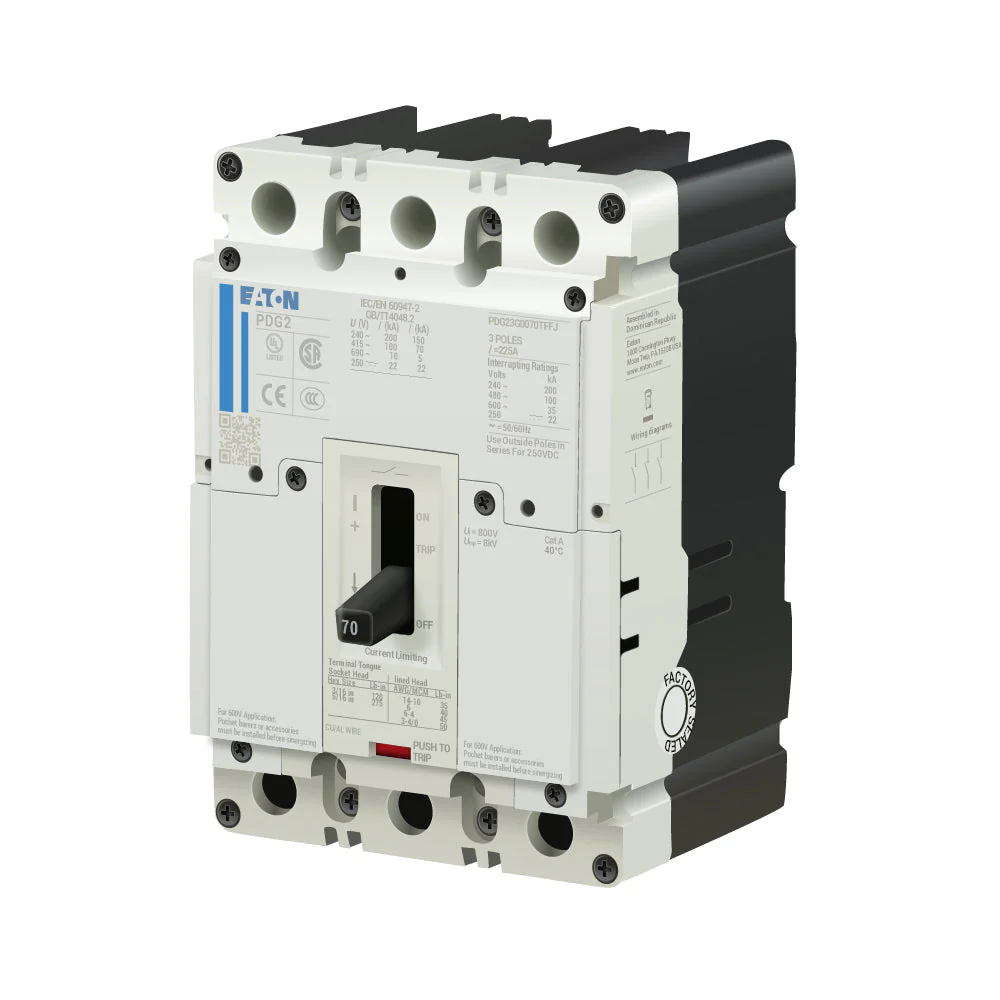

The Eaton PDG23G0070TFFJ is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 70 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0070TFFJ has a complete breaker mounting type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton |
| Series | PDG |
| Amperage | 70 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Complete Breaker |
| Approval | UL, CSA, IEC, CCC |
| Interrupting Rating | 35kAIC at 480VAC |
| Frame Type | 2 |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Standard Line and Load |
| Standards | RoHS |
| Circuit Breaker Type | PD2 Global |
| Mpn | PDG23G0070TFFJ |
Additional information
| Weight | 8 lbs |
|---|---|
| Condition | New |
| GTIN |
