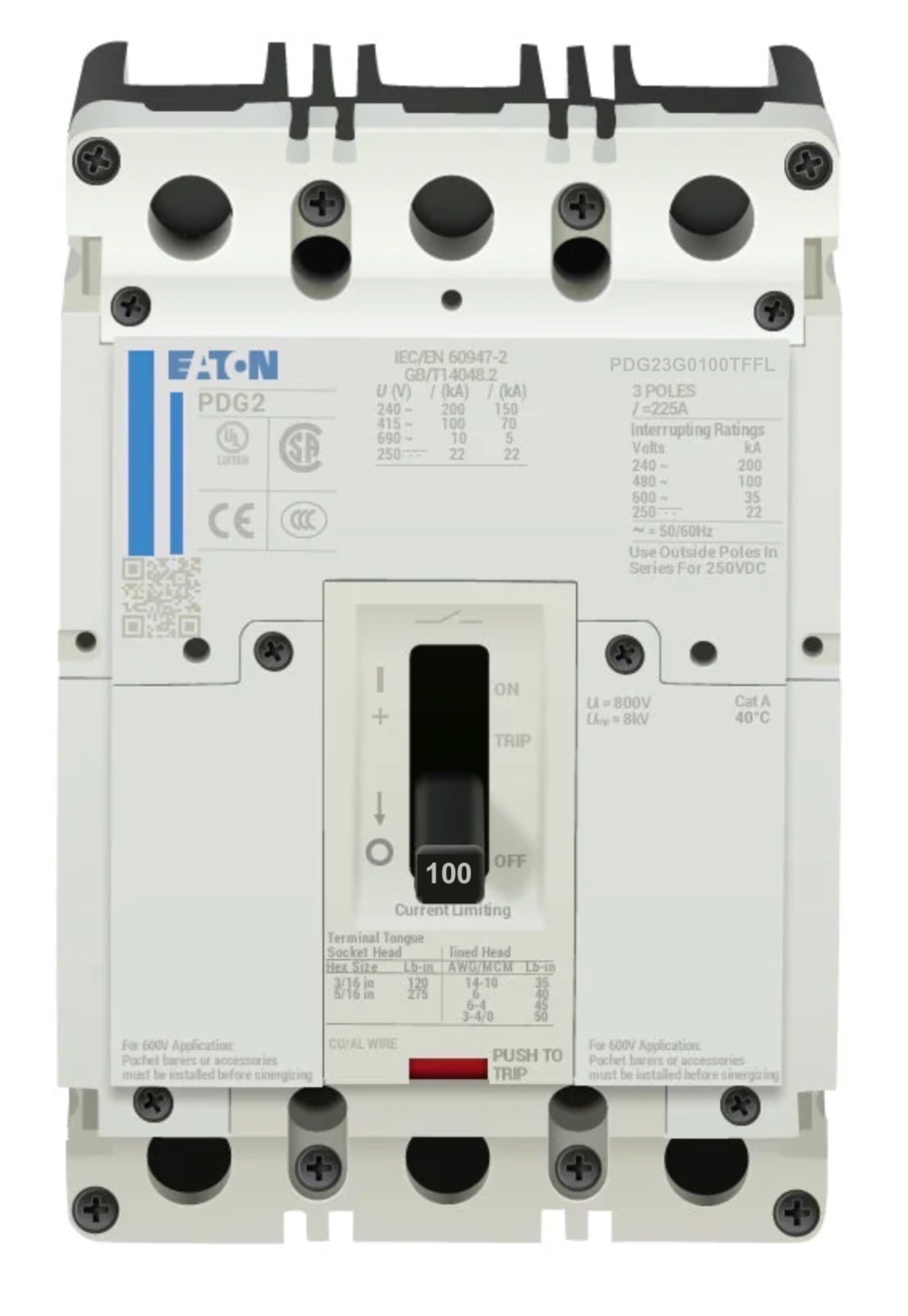

FavoritePDG23G0100TFFL – Eaton – Molded Case Circuit Breakers Feed-Thru – 100 Amp – 3 Pole – 600 Volt
$665.99
Description
The Eaton PDG23G0100TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0100TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton |
| Series | Power Defense |
| Amperage | 100 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Din rail |
| Approval | CSA, CCC, IEC, UL |
| Interrupting Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Standard Load Side Lug |
| For Use With | Motor Control Centers |
| Standards | RoHS |
| Temperature Rating | -4 to 158 °C |
| Circuit Breaker Type | PD2 Global |
| Max Wire Size | AWG 1/0 |
| Min Wire Size | AWG 14 |
Additional information
| Weight | 6 lbs |
|---|---|
| Condition | New |
| GTIN |
