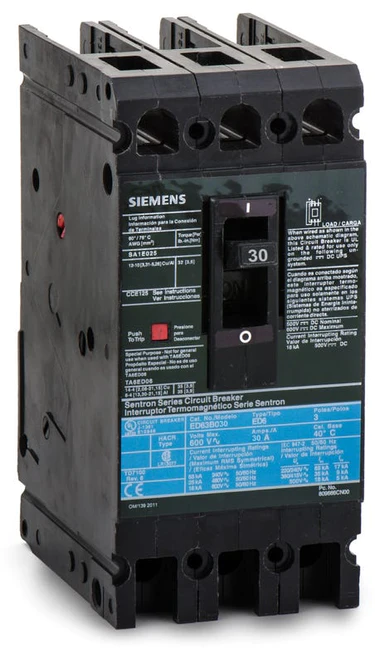

FavoriteED63B030 – Siemens – Moded Case Circuit Breaker Bolt On – 30 Amp – 3 Pole – 600 Volt
$359.99
Description
Siemens / ITE Molded Case Circuit Breaker Its Compact And Easy to Install Three poles molded case circuit breaker features a thermal magnetic over current protection system it has an interrupting rating of 65 kiloampere at 240 Vac with a voltage rating of 600 Vac 500 Vdc and it has a current rating of 30 amps at an operating temperature of 40 deg c siemens circuit breaker is UL and Csa certified.
Specifications
| Type | Molded Case- Thermal Magnetic |
| Frame Type | ED |
| Voltage Rating | 600 Volt AC- 500 Volt DC |
| Maximum AC Voltage Rating | 600 Volt |
| Maximum DC Voltage Rating | 500 Volt |
| Current Rating | 30 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 65 Kiloamp at 240 Volt AC- 25 Kiloamp at 480 Volt AC- 18 Kiloamp at 600 Volt AC/500 Volt DC (UL 489)- 65/17 Kiloamp at 220/240 Volt AC- 35/9 Kiloamp at 380/415 Volt AC- 18/5 Kiloamp at 500 Volt AC (IEC) |
| Terminal Type | Load Lug |
| Size | 3 Inch Width x 4.56 Inch Depth x 6.35 Inch Height |
| Approval | UL 489- IEC |
| Brand Name | Sentron® |
| Model | ED6 |
| Additional Information | RoHS Compliant- Label Color Blue- Wire Size 10 to 1/0 AWG (Copper/Aluminum)- Enclosure Rating NEMA 1/3R/4/4X/7/9/12- Mounting Type Stud/Plug-In- Used On Enclosure- Switchboard- Panelboard- Load Center |
| Features/Benefits | RoHS Compliant |
Additional information
| Weight | 5 lbs |
|---|---|
| Condition | New, Used |
