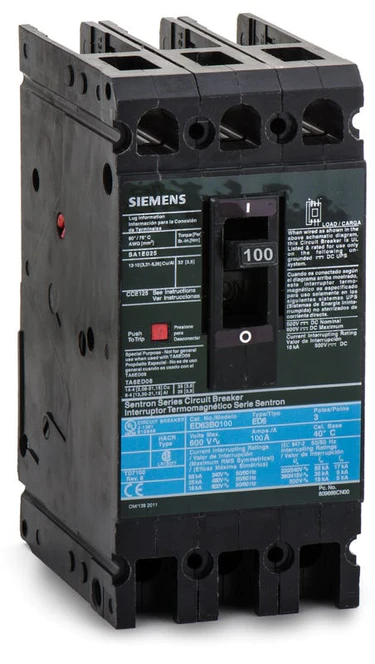

ED63B100 – Siemens – Molded Case Circuit Breaker Bolt-On – 100 Amp – 3 Pole – 600 Volt

SKU: ED63B100 Categories: ,



Siemens / ITE Molded Case Circuit Breaker Its Compact And Easy to Install Three poles molded case circuit breaker features a thermal magnetic over current protection system with a voltage rating of 600 Vac 500 Vdc and it has a current rating of 100 amps at an operating temperature of 40 deg c it has interrupting rating of 65 kilo-amps at 240 Vac with 50/60 Hz 25 kilo-amps at 480 Vac 18 kilo-amps at 600 Vac/500 Vdc/Vac with 50/60 Hz siemens circuit breaker is UL and Csa certified.


Type Thermal Magnetic
Frame Type ED
Voltage Rating 600 Volt AC- 500 Volt DC
Current Rating 100 Amp
Number of Poles 3
Interrupting Rating 65 Kiloamp at 240 Volt AC (UL 489)- 25 Kiloamp at 480 Volt AC (UL 489)- 18 Kiloamp at 600 Volt AC/500 Volt DC (UL 489)- 65/17 Kiloamp at 220/240 Volt AC (IEC)- 35/9 Kiloamp at 380/415 Volt AC (IEC)- 18/5 Kiloamp at 500 Volt AC (IEC)
Terminal Type Load Lug
Size 3 Inch Width x 4.56 Inch Depth x 6.35 Inch Height
Approval UL 489- IEC
Brand Name Sentron®
Model ED6
Additional Information RoHS Compliant- Label Color Blue- Wire Size 10 to 1/0 AWG (Copper/Aluminum)- Enclosure Type NEMA 1/3R/4/4X/7/9/12- Mounting Type Stud/Plug-In- Used On Enclosure- Switchboard- Panelboard- Load Center
Features/Benefits RoHS Compliant- Field Installable External Accessories- Series Connected Short Circuit Ratings- Thermal Magnetic and Solid States
