In stock

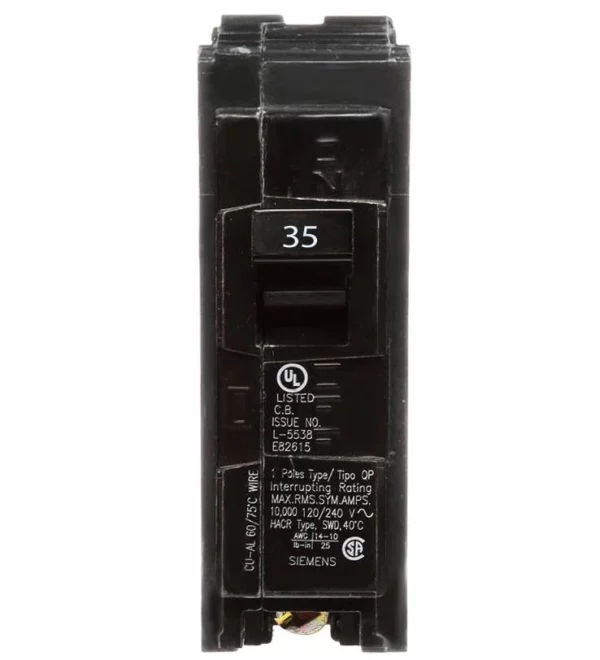

FavoriteQ135 – Siemens – 35 Amp Circuit Breaker Plug-In – 35 Amp – 1 Pole – 120 Volt
$7.99
Description
THERMAL AND FIXED MAGNETIC TYPE 1 INCH W X 3 INCH D X 3-1/8 INCH H SIZE LOADCENTER USED ON 14 TO 6 AWG (COPPER/ALUMINUM) WIRE SIZE UL 489 CSA C22.2 APPROVAL 120 VAC AT 50/60 HZ VOLTAGE RATING PLUG-IN MOUNTING 10 KILOAMPERE INTERRUPTING RATING 35 AMPERE AT 40 DEG C CURRENT RATING 1 POLE(S) LOAD LUG TERMINAL TYPE SPEEDFAX INSTA-WIRE BRAND FRAME TYPE QP
Specifications
| Type | Thermal and Fixed Magnetic |
| Number of Poles | 1 |
| Voltage Rating | 120 VAC at 50/60 Hz |
| Current Rating | 35 Ampere at 40 Deg C |
| Interrupting Rating | 10 Kiloampere |
| Terminal Type | Load Lug |
| Wire Size | 14 to 6 AWG (Copper/Aluminum) |
| Mounting | Plug-In |
| Used On | Loadcenter |
| Size | 1 Inch W x 3 Inch D x 3-1/8 Inch H |
| Approval | UL 489- CSA C22.2 |
| Brand Name | SPEEDFAXâ„¢- INSTA-WIRE |
| Additional Information | Frame Type QP |
| Features/Benefits | HACR Rated |
Additional information
| Weight | 1 lbs |
|---|---|
| Condition | New |
| GTIN |
