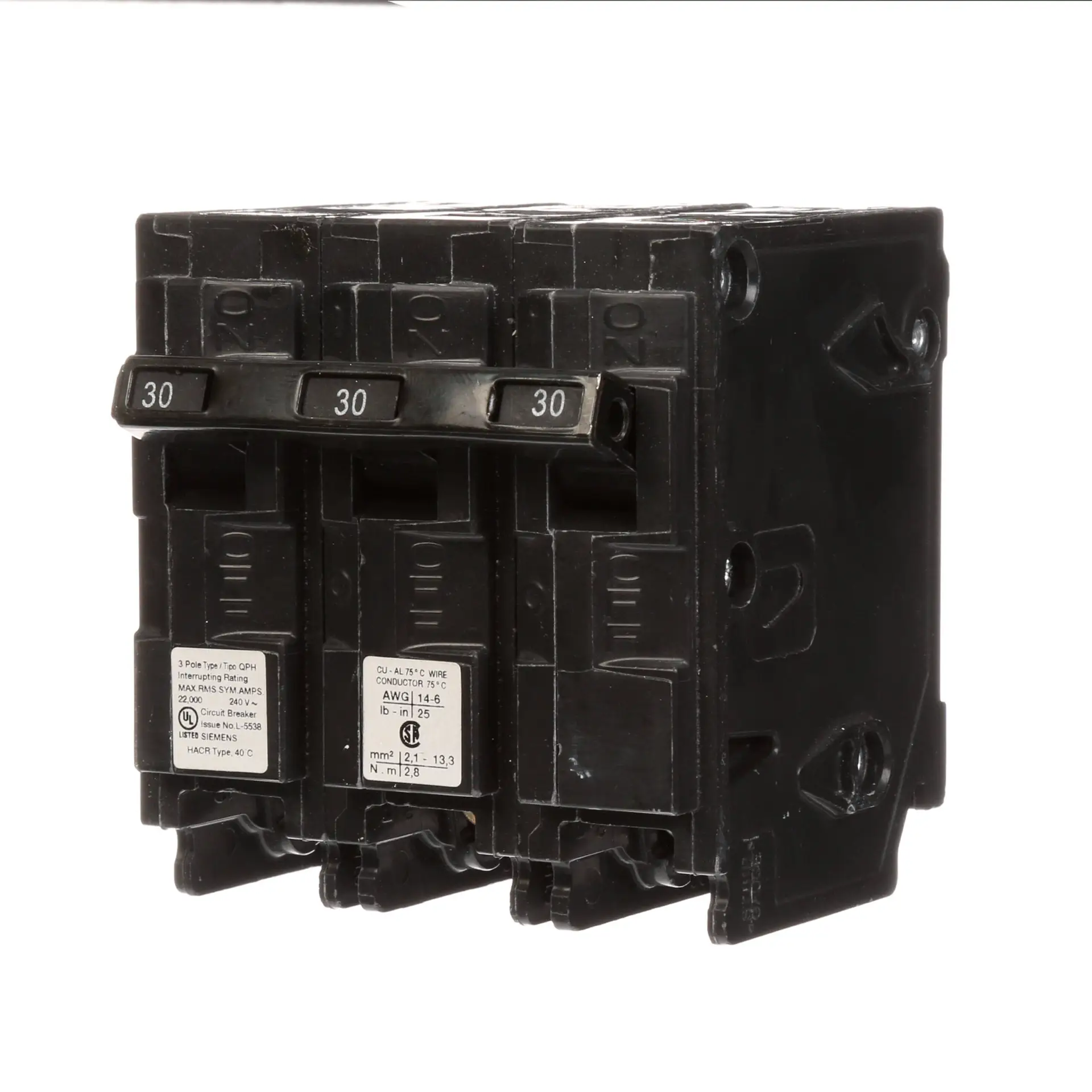

FavoriteQ330H – Siemens – 30 Amp 22kA Circuit Breaker Plug-In – 30 Amp – 3 Pole – 240 Volt
$69.99
Description
Siemens Q series three pole 30 ampere plug-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 22 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions.
Specifications
| Type | Thermal and Fixed Magnetic- Common Trip |
| Number of Poles | 3 |
| Voltage Rating | 240 VAC at 50/60 Hz |
| Current Rating | 30 Ampere at 40 Deg C |
| Interrupting Rating | 22 Kiloampere |
| Terminal Type | Load Lug |
| Wire Size | 14 to 6 AWG (Copper/Aluminum) |
| Mounting | Plug-In |
| Used On | Loadcenter |
| Size | 3 Inch W x 3 Inch D x 3-1/8 Inch H |
| Approval | UL 489- CSA C22.2 |
| Brand Name | SPEEDFAXâ„¢- INSTA-WIRE |
| Additional Information | Frame Type QPH |
Additional information
| Weight | 2.5 lbs |
|---|---|
| Condition | New |
