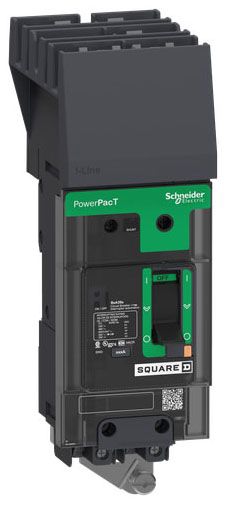

BGA260202 – Square D – Molded Case Circuit Breaker I-Line Style Plug-In – 20 Amp – 2 Pole – 600 V

SKU: BGA260202 Categories: ,



The Square D BGA260202 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 600Y/347VAC. It has an interrupting rating of 35kAIC@480V. The BGA260202 has a panel mounting type and includes long time and instantaneous trip functions.


Type Thermal Magnetic
Frame Type B
Voltage Rating 600 Star/347 Volt AC 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating 347 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 20 Amp
Number of Poles 2
Interrupting Rating 18 Kiloamp at 600 Star/347 Volt- 20 Kiloamp at 250 Volt DC
Terminal Type I-Line Connection Line Lug Load
Size 2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
Approval UL- CSA- CE
Brand Name PowerPact™
Model BG
Additional Information RoHS/REACH Compliant- Trip Setting 400 Amp (Hold)- 600 Amp (Trip)- Mounting Type I-Line- Control Type Toggle- Terminal Wire Size 14 to 2/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type AC- Operation Ambient Air Temperature Rating -13 to 158 Deg F- Application Distribution- Applicable Standard EAC- NOM- IEC- CCC- NEMA AB1- EN/IEC 60947-2/60947-5-1- NMX J-266- GB 14048.2
Features/Benefits This Powerpact B-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 18 Kiloamp at 600Y/347 Volt AC- All Powerpact B-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product
