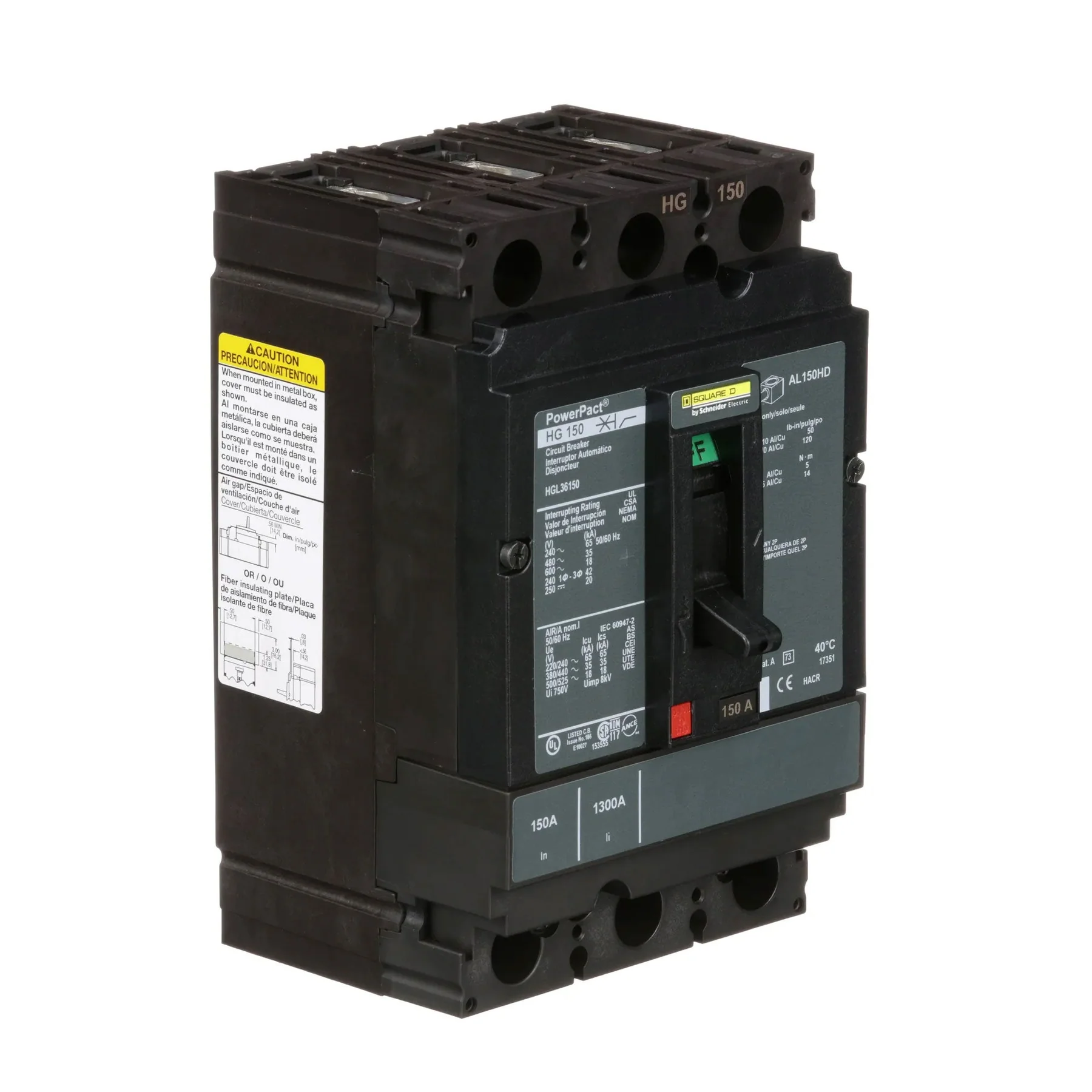

HGL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt

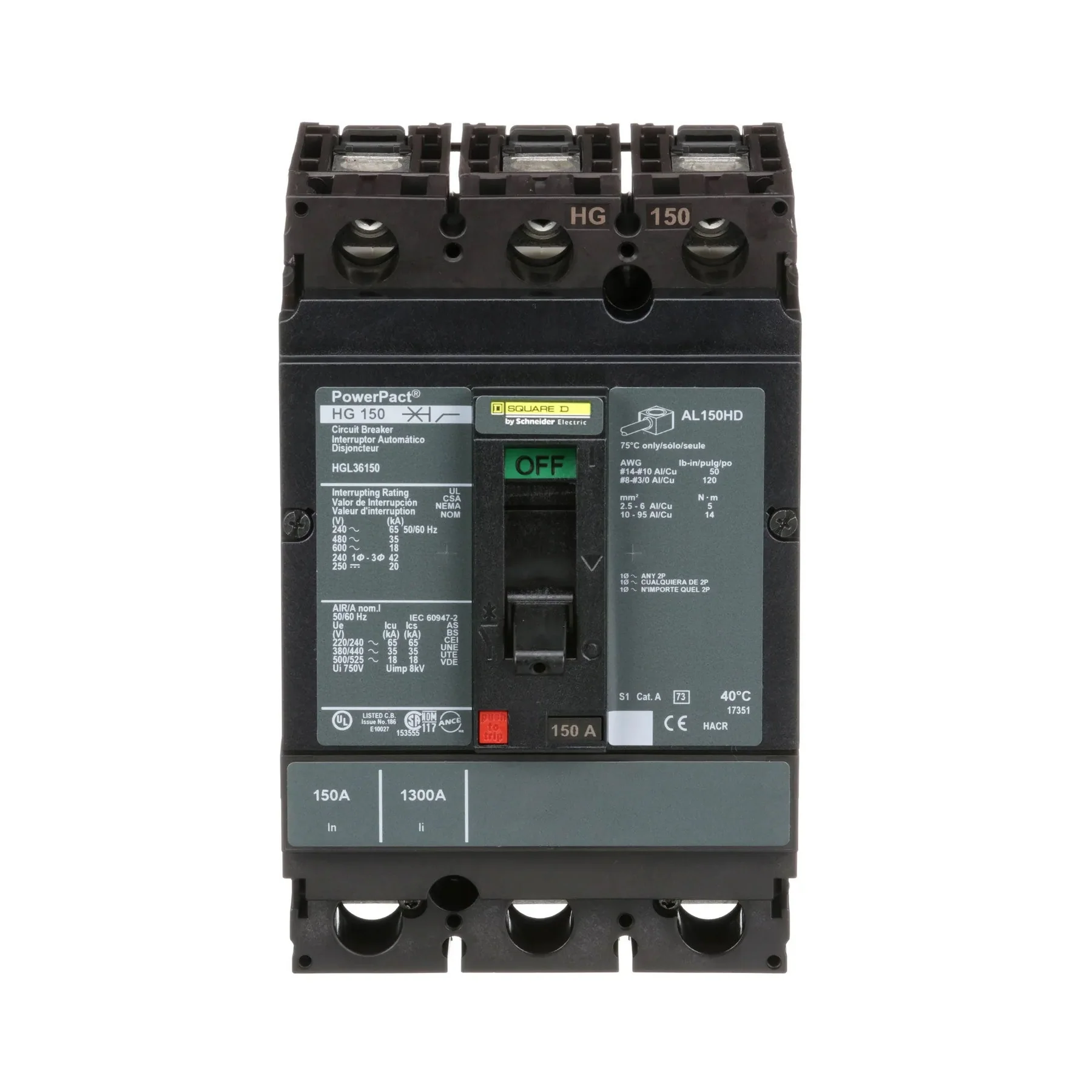

HGL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt - Image 2
HGL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt - Image 3
HGL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt - Image 4
HGL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt - Image 5
Favorite Favorite

HGL36150 – Square D – Molded Case Circuit Breaker Feed-Thru – 150 Amp – 3 Pole – 600 Volt

$1,179.99

Type Thermal Magnetic- Current Limiting
Frame Type H
Voltage Rating 600 Volt AC 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 150 Amp
Number of Poles 3
Interrupting Rating 18 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC
Terminal Type Line/Load Lug

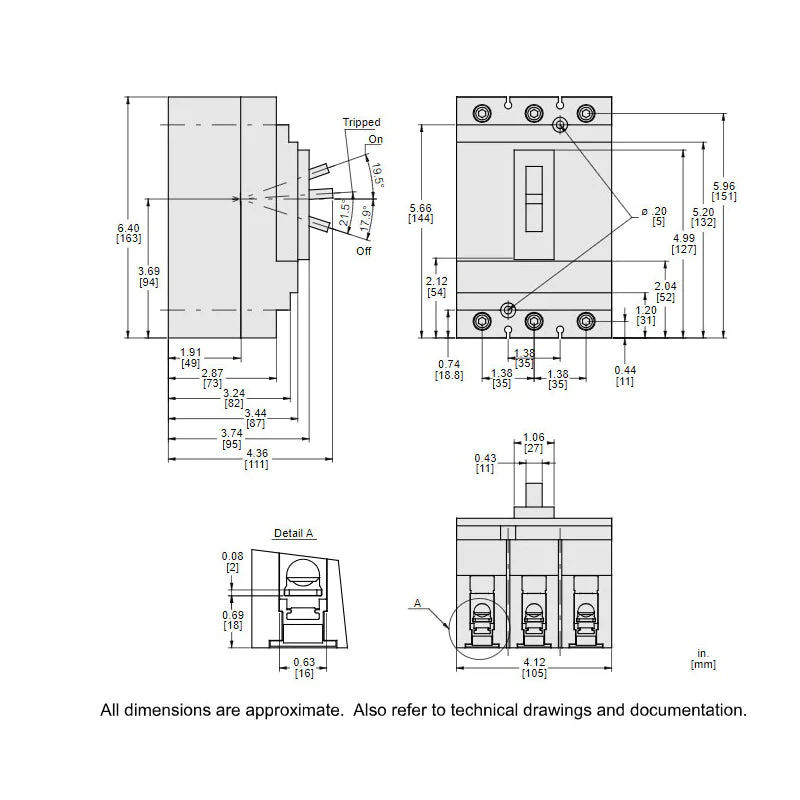

Size 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height
Approval UL- CSA- CE
Brand Name PowerPact™
Model HG
Additional Information RoHS/REACH Compliant- Trip Setting 900 Amp (Hold)- 1700 Amp (Trip)- Mounting Type Unit- Control Type Toggle- Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum)- Continuous Current Rating 80 Percent- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Application Distribution- Applicable Standard NOM 003- NEMA- IEC 60947-2
Features/Benefits Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- Powerpact H-Frame Circuit Breakers are Available with Either Thermal Magnetic or Micrologic Electronic Trip Protection Units- This Powerpact H-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 18 Kiloamp at 600 Volt AC- All Powerpact H-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product
SKU: HGL36150 Categories: ,

Description

THERMAL MAGNETIC CURRENT LIMITING TYPE 4.09 INCH WIDTH X 3.39 INCH DEPTH X 6.42 INCH HEIGHT SIZE 600 VOLT MAX. AC VOLTAGE RATING 250 VOLT MAX. DC VOLTAGE RATING UL CSA CE APPROVAL 600 VOLT AC 50/60 HERTZ 250 VOLT DC VOLTAGE RATING 18 KILOAMP AT 600 VOLT AC 20 KILOAMP AT 250 VOLT DC INTERRUPTING RATING 150 AMP CURRENT RATING 3 POLE(S) LINE/LOAD LUG TERMINAL TYPE H FRAME TYPE POWERPACT[TM] BRAND ROHS/REACH COMPLIANT TRIP SETTING 900 AMP (HOLD) 1700 AMP (TRIP) MOUNTING TYPE UNIT CONTROL TYPE TOGGLE TERMINAL WIRE SIZE 14 TO 3/0 AWG (COPPER/ALUMINUM) CONTINUOUS CURRENT RATING 80 PERCENT OPERATION AMBIENT AIR TEMPERATURE RATING 28 TO 158 DEG F APPLICATION DISTRIBUTION APPLICABLE STANDARD NOM 003 NEMA IEC 60947-2 HG MODEL

Additional information

Weight 3.5 lbs
Condition

New
