In stock

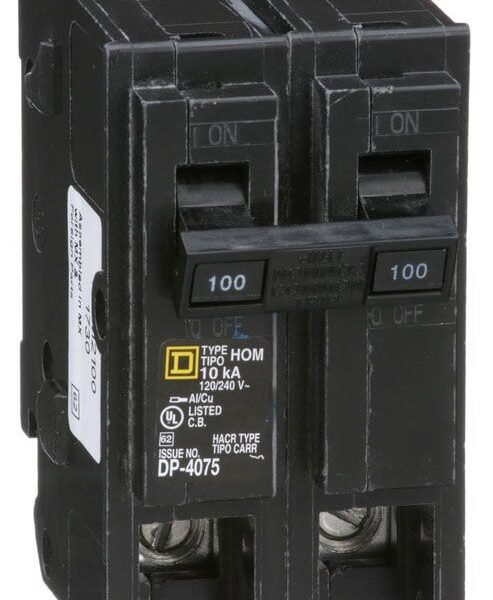

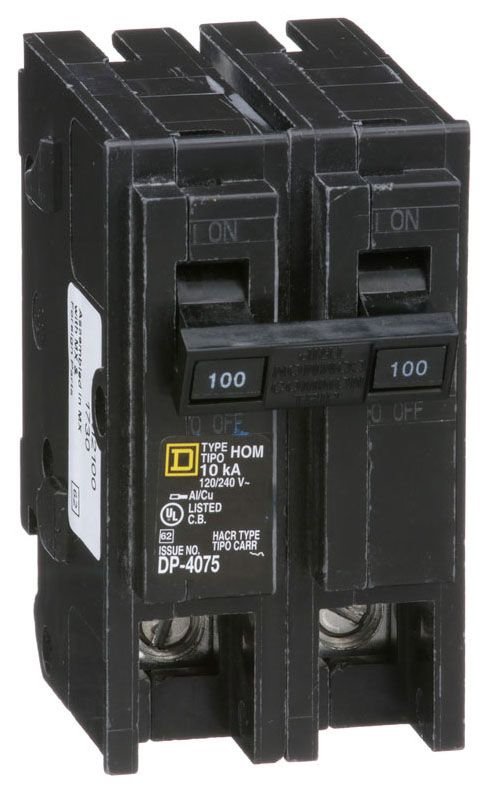

FavoriteHOM2100 – Square D Homeline – Circuit Breaker Plug-In – 100 Amp – 2 Pole – 240 Volt
$47.99
Description
STANDARD COMMON TRIP TYPE 1 INCH WIDTH X 2.98 INCH DEPTH X 3.13 INCH HEIGHT SIZE LOAD CENTER USED ON 4 TO 2/0 AWG (ALUMINUM/COPPER) WIRE SIZE UL APPROVAL 120/240 VOLT AC VOLTAGE RATING PLUG-IN MOUNTING 10 KILOAMP INTERRUPTING RATING 100 AMP CURRENT RATING 1 POLE(S) BOX LUG TERMINAL TYPE HOMELINE BRAND ROHS COMPLIANT TEMPERATURE RATING 104 DEG F APPLICATION HEATING AIR CONDITIONING REFRIGERATION
Specifications
| Type | Standard- Common Trip |
| Number of Poles | 1 |
| Voltage Rating | 120/240 Volt AC |
| Current Rating | 100 Amp |
| Interrupting Rating | 10 Kiloamp |
| Terminal Type | Box Lug |
| Wire Size | 4 to 2/0 AWG (Aluminum/Copper) |
| Mounting | Plug-In |
| Used On | Load Center |
| Size | 1 Inch Width x 2.98 Inch Depth x 3.13 Inch Height |
| Approval | UL |
| Brand Name | Homelineâ„¢ |
| Additional Information | RoHS Compliant- Temperature Rating 104 Deg F- Application Heating- Air Conditioning- Refrigeration |
| Features/Benefits | HACR Rated- Mercury-Free- Toxic Heavy Metal-Free- Green Premium- Lifetime Warranty- RoHS/Reach Compliant |
Additional information
| Weight | 2.5 lbs |
|---|---|
| Condition | New |
| GTIN |
