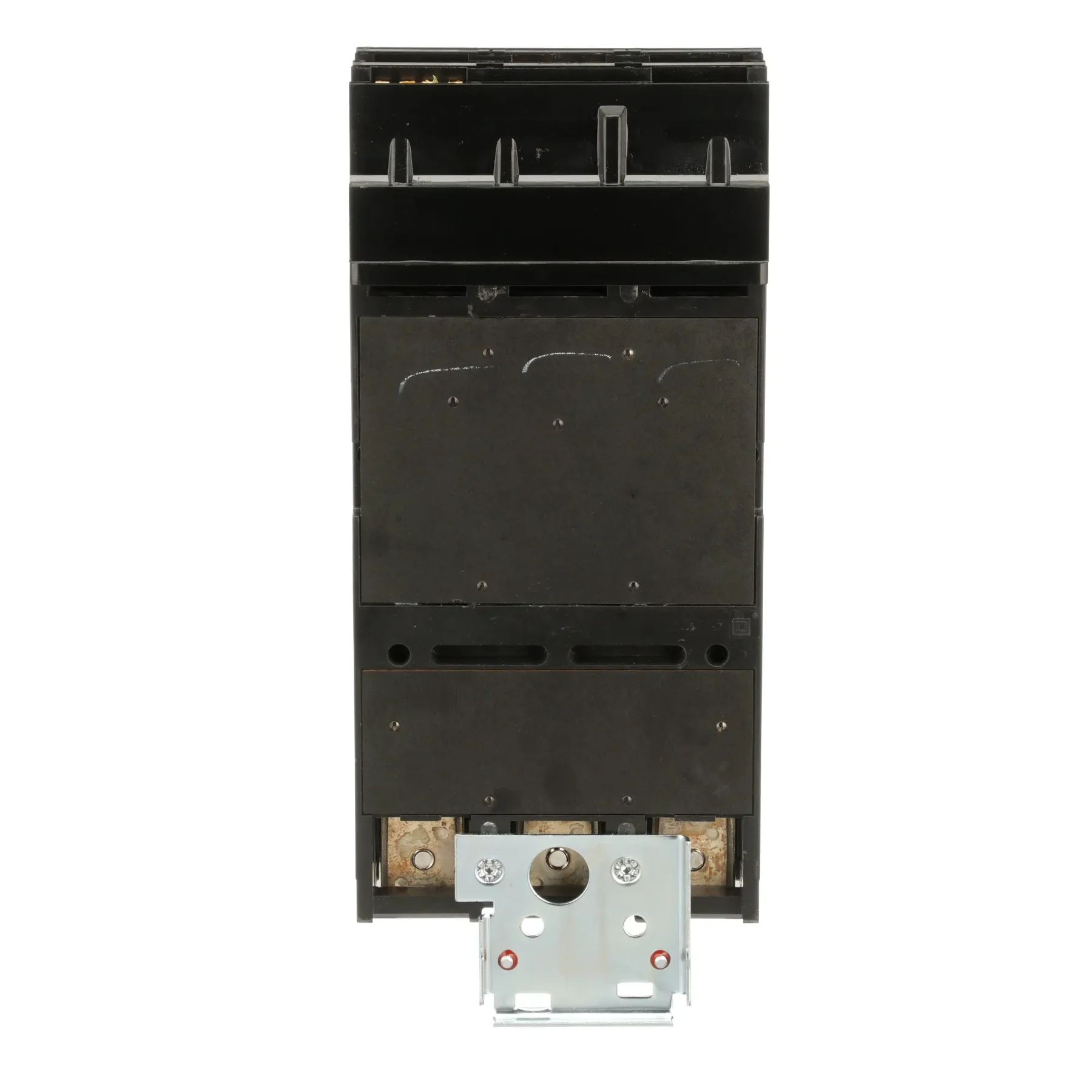

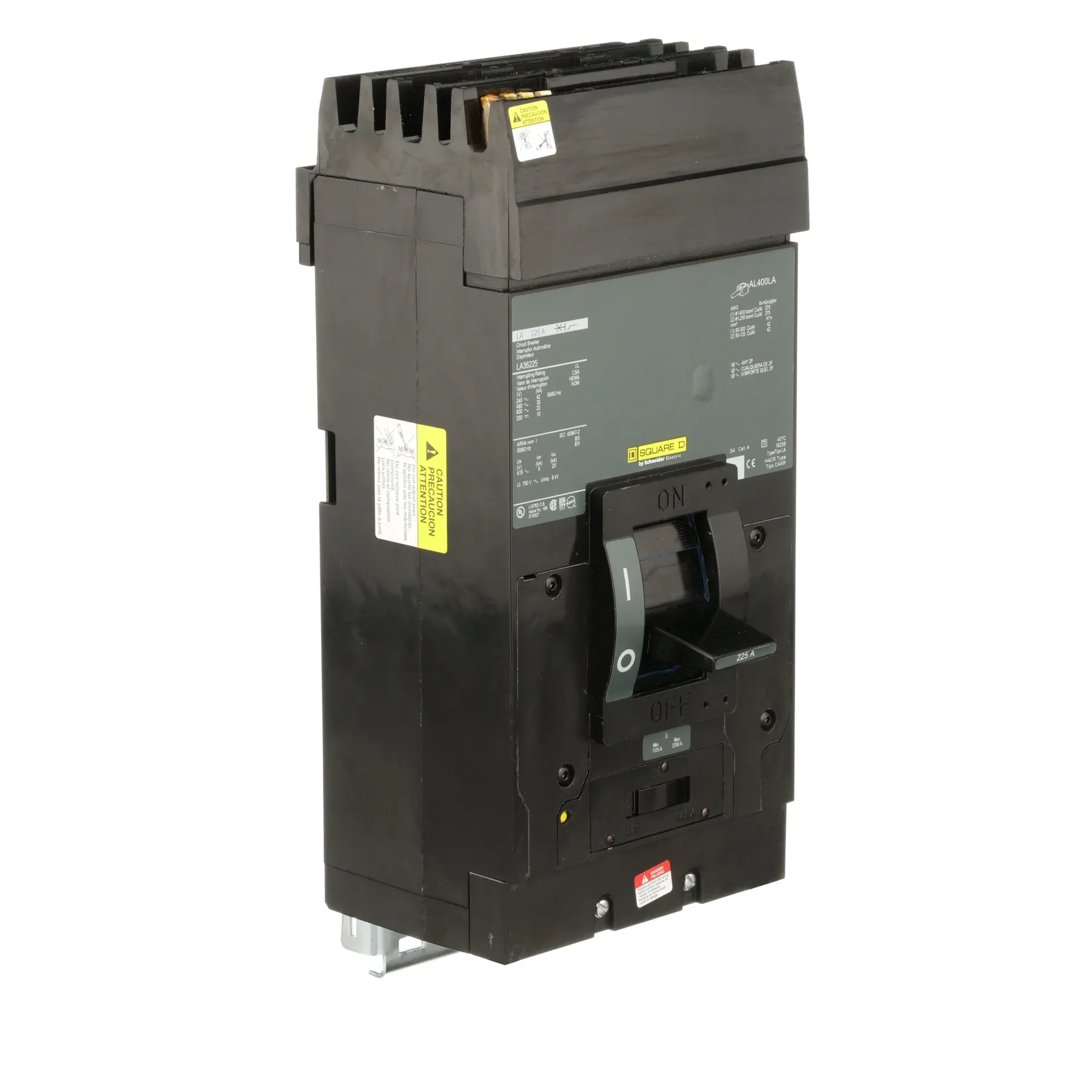

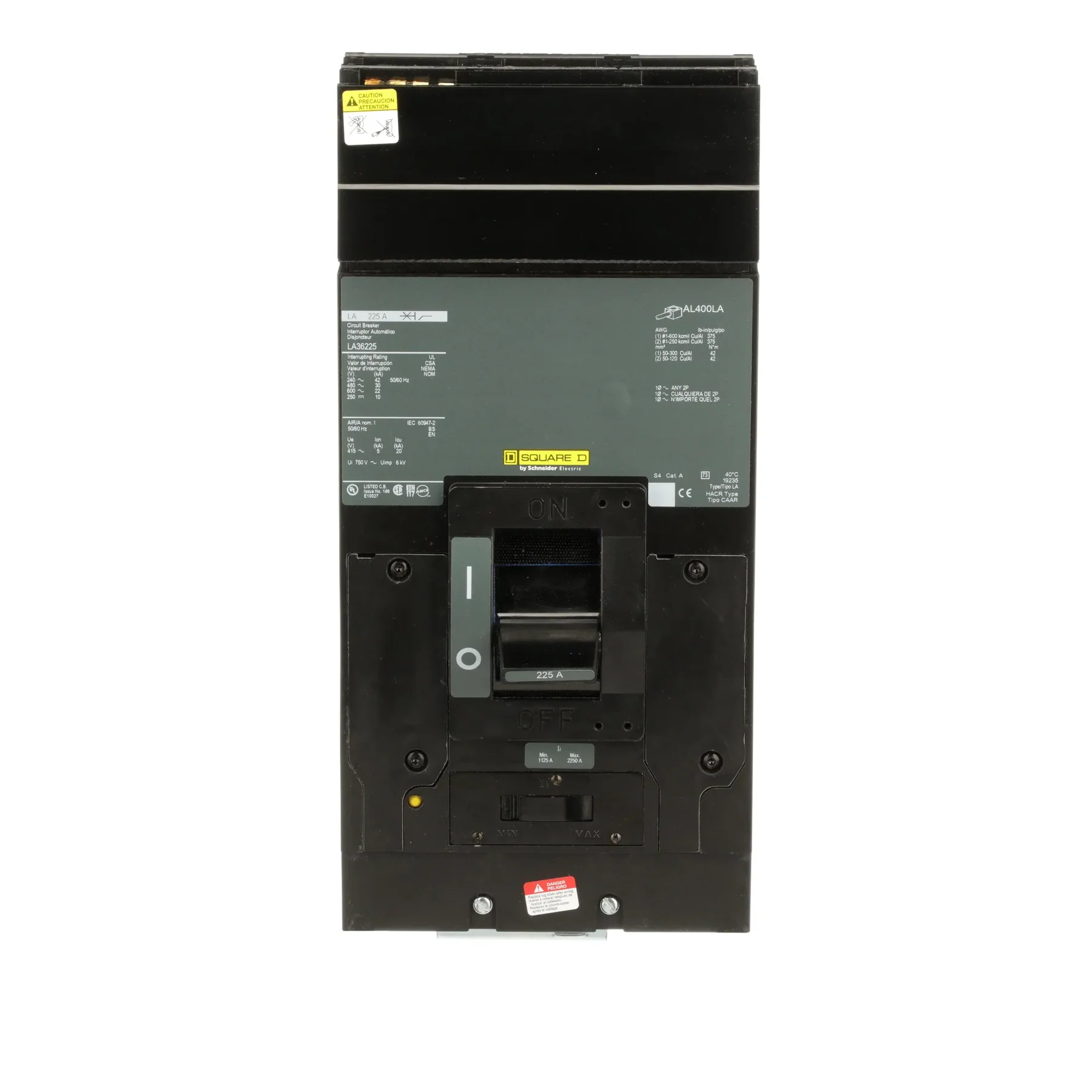

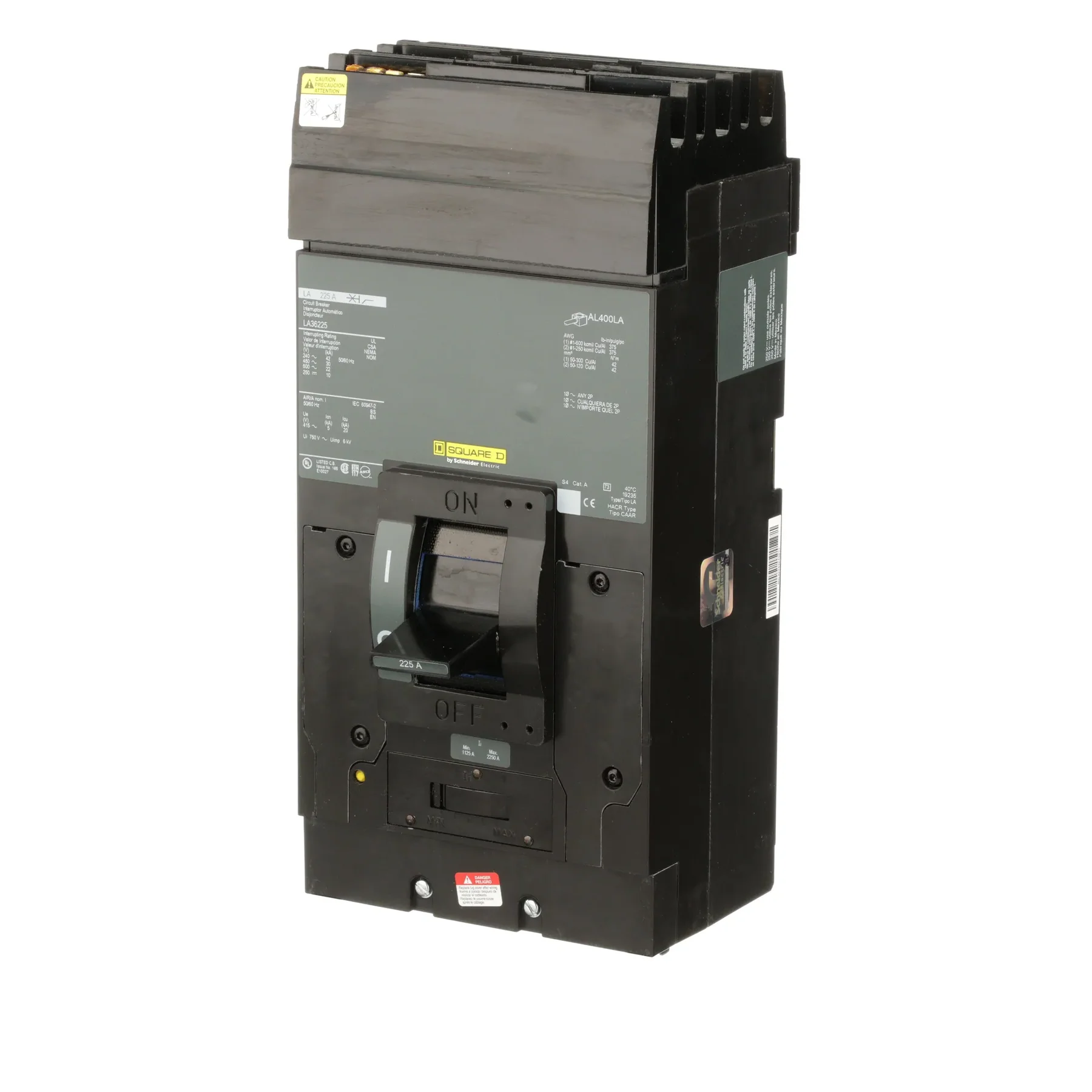

FavoriteLA36225 – Square D – Molded Case Circuit Breaker I-Line Plug-In – 225 Amp – 3 Pole – 600 Volt
$2,799.99
Description
The Square D LA36225 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 225 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 42kAIC at 120/240VAC. The LA36225 has an I-Line style plug-in connection type and includes LI - long-time and instantaneous trip functions.
Specifications
| Type | Thermal Magnetic |
| Voltage Rating | 600 Volt AC- 250 Volt DC |
| Current Rating | 225 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 22 Kiloamp at 600 Volt AC |
| Trip Setting | 1125 to 2250 Amp |
| Application | Power Distribution |
| Used On | I-Line Panelboard And Switchboard |
| Approval | UL- CSA |
| Model | LA |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 6 Inch Width x 5.84 Inch Depth x 11 Inch Height- Frame Type L- Terminal Type I-Line Connection Line Lug Load- Terminal Wire Size (1) 1 AWG to 600 KCMIL (Copper/Aluminum)- (2) 1 AWG to 250 KCMIL (Copper/Aluminum) |
| Features/Benefits | Returnable- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Halogen-Free- Green Premium Product |
Additional information
| Weight | 30 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
