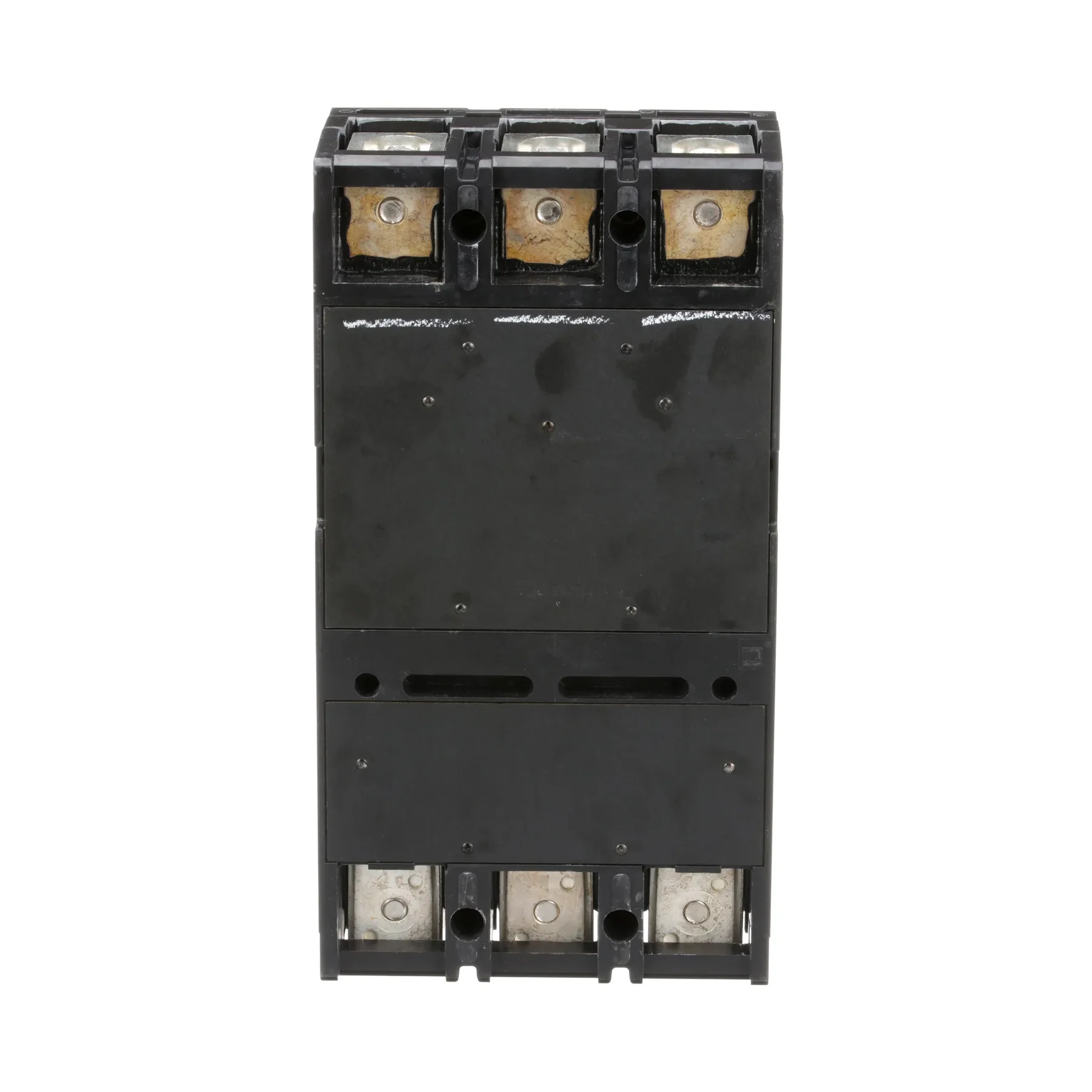

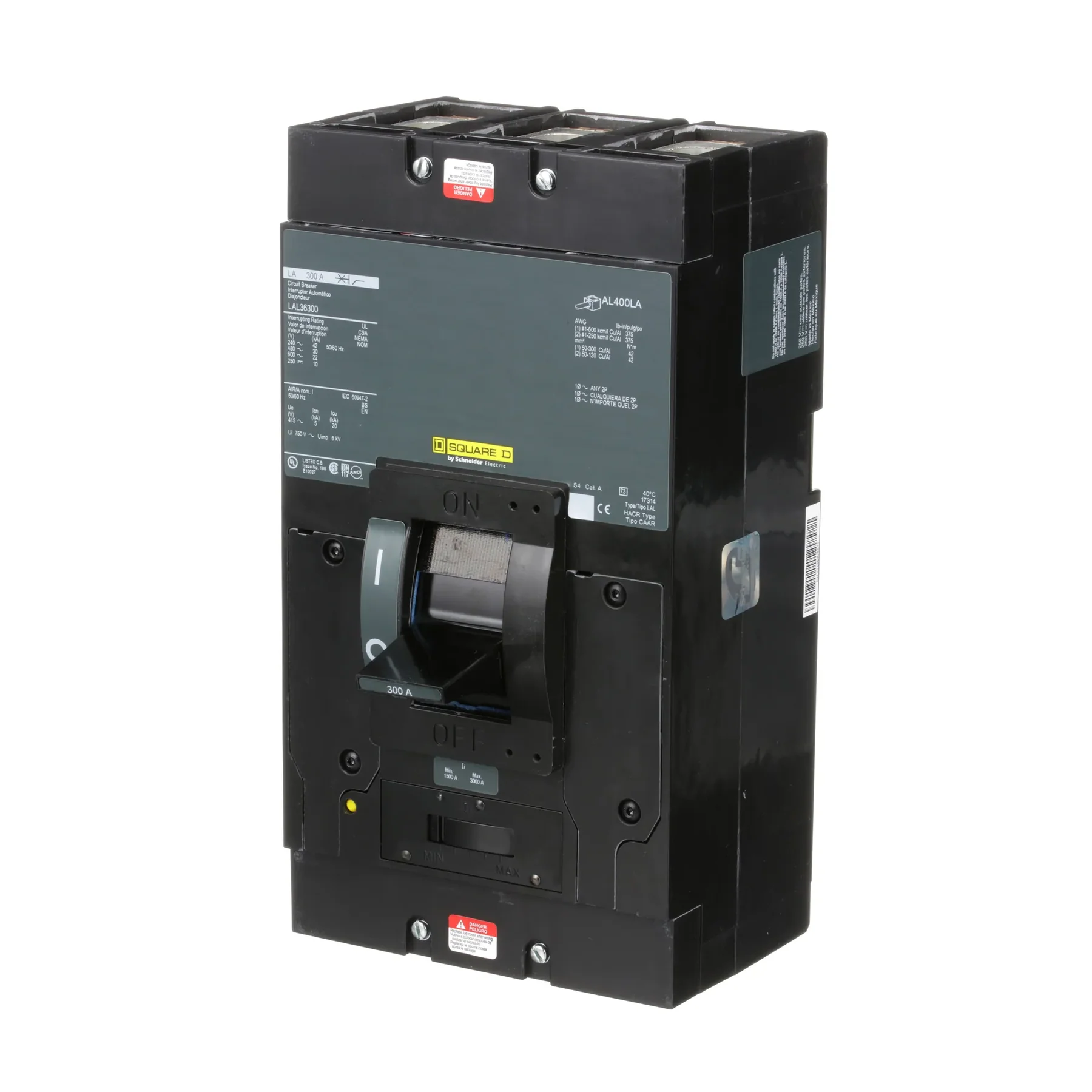

The Square D LAL36300 is a Molded Case Circuit Breaker. This type LAL circuit breaker is a member of The LAL Series family. The LAL36300 is a 3 pole, 600 Volt, 300 amp rated circuit breaker, with an AIC rating of 30kA@480V. The LAL36300 is manufactured by Square D. The LAL36300 uses a Feed-Thru connection. Includes Thermal Magnetic protection.
Specifications
Type
Thermal Magnetic- Adjustable
Frame Type
L
Voltage Rating
600 Volt AC 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating
600 Volt
Maximum DC Voltage Rating
250 Volt
Current Rating
300 Amp
Number of Poles
3
Interrupting Rating
22 Kiloamp at 600 Volt AC- 10 Kiloamp at 250 Volt DC
Terminal Type
Line/Load Lug

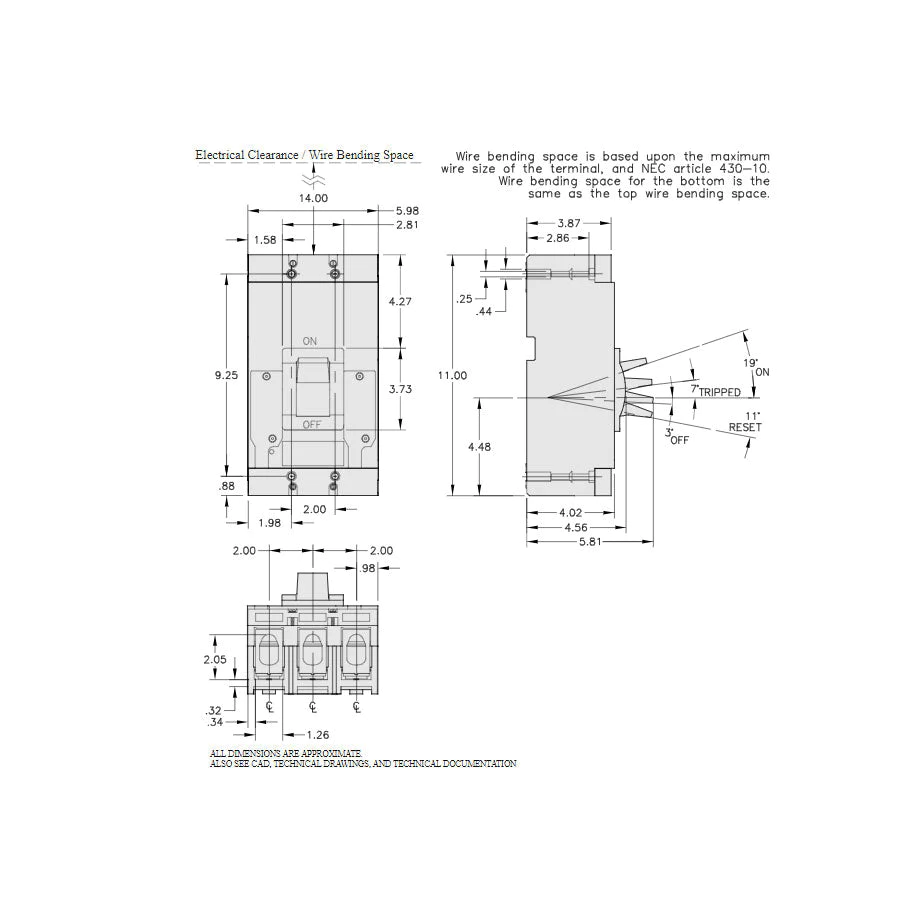

Size
6 Inch Width x 5.84 Inch Depth x 11 Inch Height
Approval
UL- CSA
Brand Name
PowerPact™
Model
LA
Additional Information
RoHS/REACH Compliant- Trip Setting 1500 Amp (Low)- 3000 Amp (High)- Mounting Type Unit- Terminal Wire Size 1 AWG to 600 KCMIL Aluminum/(2) 1 AWG to 250 KCMIL Aluminum- Applicable Standard IEC
Features/Benefits
Square D LA Molded Case Circuit Breakers Provide Thermal Magnetic Protection- Their Primary Function is Automatic Opening of a Circuit Under Overload or Short Circuit Conditions or Manual Opening- LA Circuit Breakers Contain Thermal (Overload) and Magnetic (Short Circuit) Sensing Elements in Each Pole- Push to Trip Allows the Circuit Breaker to be Manually Tripped without Exposure to Live Parts- This Square D LA Molded Case Circuit Breaker is a 3 Pole Unit Mount Breaker- 300 Amp and 600 Volt AC- The Thermal Magnetic Circuit Breaker has an Interrupting Rating of 22 Kiloamp for 600 Volt AC and 10 Kiloamp for 250 Volt DC- The Circuit Breaker MB Suffix Indicates a Panel Main Breaker and has a Shorter Handle So that the Panel Door Can Close- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product
