In stock

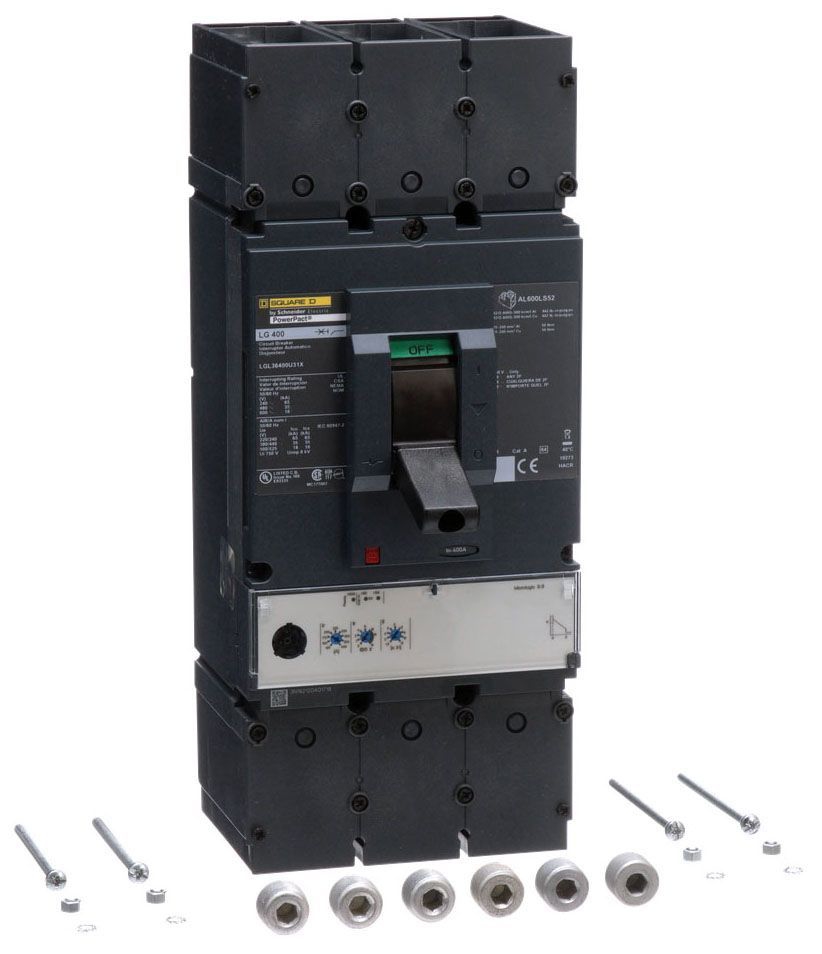

FavoriteLGL36400U31X – Square D – Molded Case Circuit Breaker Feed Thru – 400 Amp – 3 Pole – 600 Volt
$1,299.99
Description
The Square D LGL36400U31X is a 3 Pole molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600V. It has an interrupting rating of 18kA at 600VAC, 35kA at 480VAC, 65kA at 240VAC. The LGL36400U31X has a unit mounting type and comes with 3 phase connection.
Specifications
| Type | Molded Case |
| Frame Type | L |
| Voltage Rating | 600 Volt AC 50/60 Hertz |
| Maximum AC Voltage Rating | 600 Volt |
| Current Rating | 400 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 65 Kiloamp at 240 Volt AC- 35 Kiloamp at 480 Volt AC- 18 Kiloamp at 600 Volt AC |
| Terminal Type | Load/Line Lug |
| Size | 5.5 Inch Width x 6.61 Inch Depth x 11.3 Inch Height |
| Approval | UL- CSA- CE |
| Brand Name | PowerPact™ |
| Additional Information | RoHS Compliant- Wire Size (2) 2/0 AWG to 500 KCMIL (Aluminum/Copper)- Mounting Mode Unit Mount- Applicable Standard CCC- NMX |
| Features/Benefits | A Flexible- High Performance Offer Certified to Global Standards- Micrologic Trip Protection- High Performance Interrupting Rating- Wide Range of Trip Units to Protect Most Applications- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product- Made in USA |
Additional information
| Weight | 35 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
