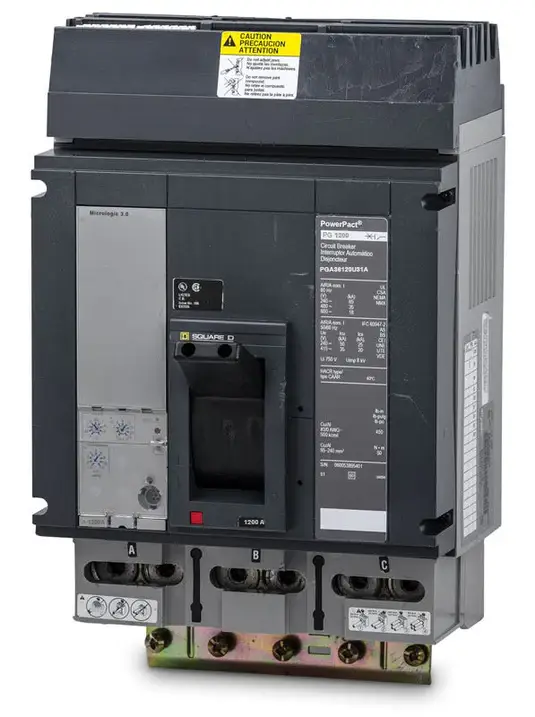

FavoriteSquare D PGA36120U31A 3 Pole Circuit Breaker
$9,355.00
Description
The Square D PGA36120U31A is a 3 Pole solid state molded case circuit breaker with a current rating of 1200 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480V. The PGA36120U31A has a I-line bracket mounting type and includes long-time and instantaneous trip functions.
Specifications
| Brand | Square D |
| Series | PGA |
| Amperage | 1200 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | I-Line Bracket |
| Approval | CE, UL, CSA, NEMA, IEC, NOM |
| Interrupting Rating | 35kAIC at 480V |
| Frame Type | PGA |
| Connection Type | I-Line Style Plug-In |
| Protection | Solid State |
| Functions | Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | 4x AWG 3/0 to 500KCmil, Aluminum/Copper |
| Standards | RoHS, REACh, HACR |
| Temperature Rating | -2 to 70 °C |
| Actuator Type | Toggle |
| Mpn | PGA36120U31A |
Additional information
| Weight | 40 lbs |
|---|---|
| Condition | Used |
| GTIN |
