In stock

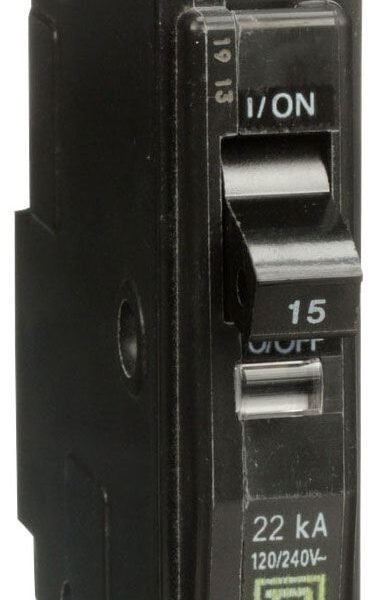

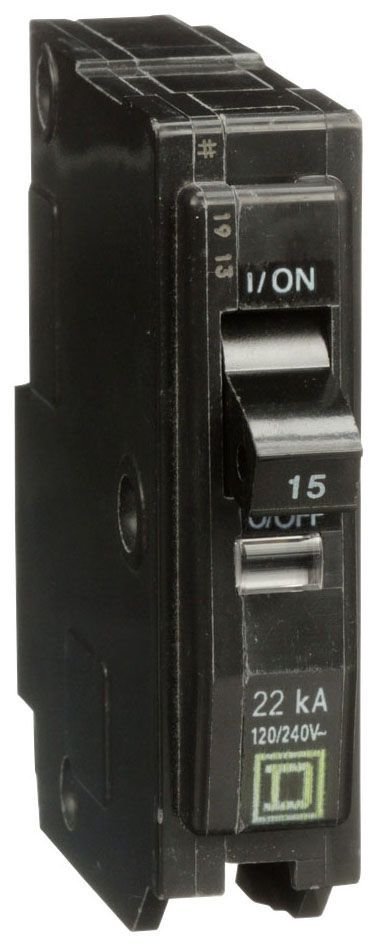

FavoriteQO115VH – Square D – 15 Amp Molded Case Circuit Breaker Plug-In – 15 Amp – 1 Pole – 120 Volt
$26.50
Description
Schneider Electric plug-on circuit breaker has a voltage rating of 120/240 Volts current rating of 15 Amps and interrupting rating of 22 kilo-Amps. The 1-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 8 AWG.
Specifications
| Type | Common Trip- Miniature- Standard |
| Number of Poles | 1 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz |
| Current Rating | 15 Amp |
| Interrupting Rating | 22 Kiloamp |
| Terminal Type | Pressure Plate |
| Wire Size | 14 to 8 AWG (Copper/Aluminum) |
| Mounting | Plug-In |
| Used On | QO Load Center- NQ/NQOD Panelboard/OEM Interior/Speed-D Switchboard Distribution Panel |
| Size | 0.75 Inch Width x 2.91 Inch Depth x 2.99 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO™- Homeline™ |
| Model | QO |
| Additional Information | RoHS/REACH Compliant- Ambient Rating 104 Deg F- Tightening Torque Rating 40.71 Inch-Pound |
| Features/Benefits | QO Miniature Circuit Breakers are Plug-On Products for Use in QO Load Centers- NQOD/NQ Panelboards/OEM Interiors or Speed-D Switchboard Distribution Panels- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- Toxic Heavy Metal Free- Switching Duty Rated- Green Premium Product |
Additional information
| Weight | 1.5 lbs |
|---|---|
| Condition | New |
| GTIN |
