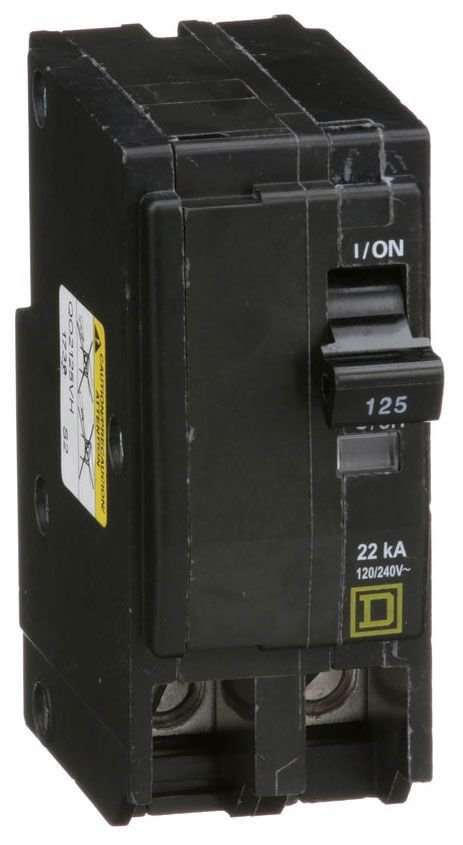

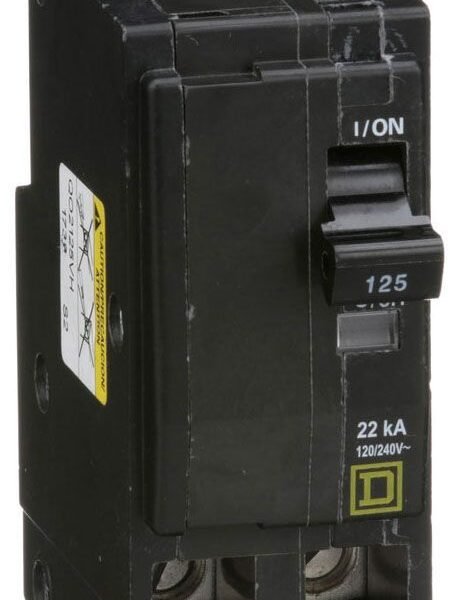

FavoriteQO2125VH – Square D – 125 Amp 22ka Circuit Breaker Plug-In – 125 Amp – 2 Pole – 240 Volt
$175.00
Description
Schneider Electric/Square D QO 2-Pole Standard miniature circuit breaker features thermal magnetic molded case for extra protection. Circuit breaker has current rating of 125 Amps and voltage rating of 120/240 VAC.
Specifications
| Type | Common Trip- Miniature- Standard |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz |
| Current Rating | 125 Amp |
| Interrupting Rating | 22 Kiloamp |
| Terminal Type | Box Lug |
| Wire Size | 4 to 2/0 AWG (Copper/Aluminum) |
| Mounting | Plug-In |
| Used On | QO Load Center- NQ/NQOD Panelboard/OEM Interior/Speed-D Switchboard Distribution Panel |
| Size | 1.5 Inch Width x 2.91 Inch Depth x 3.5 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO™- Homeline™ |
| Model | QO |
| Additional Information | RoHS/REACH Compliant- Ambient Rating 104 Deg F- Tightening Torque Rating 40.71 Inch-Pound |
| Features/Benefits | QO Miniature Circuit Breakers are Plug-On Products for Use in QO Load Centers- NQOD/NQ Panelboards/OEM Interiors or Speed-D Switchboard Distribution Panels- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- HACR Rated- Green Premium Product |
Additional information
| Weight | 2 lbs |
|---|---|
| Condition | New |
| GTIN |
