In stock

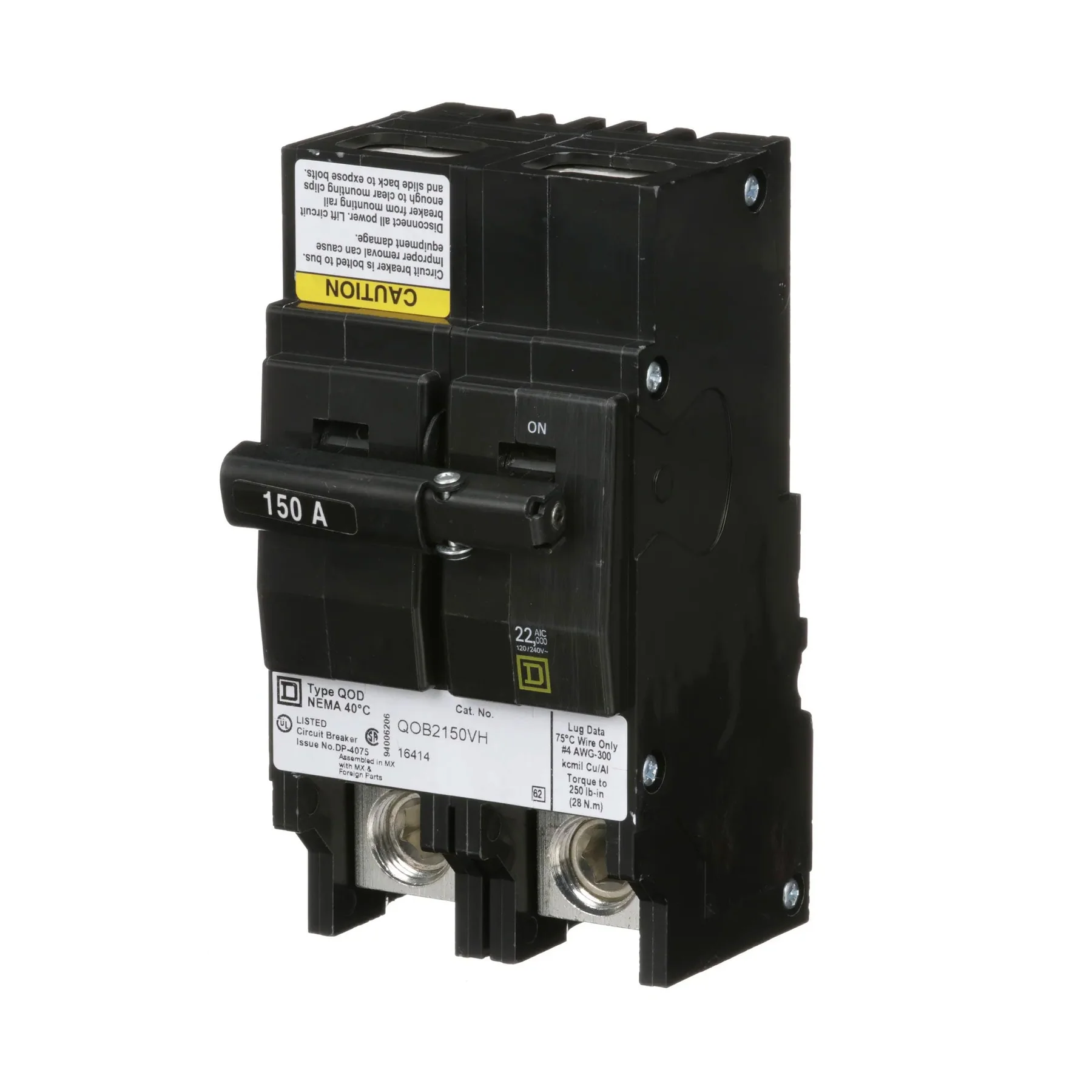

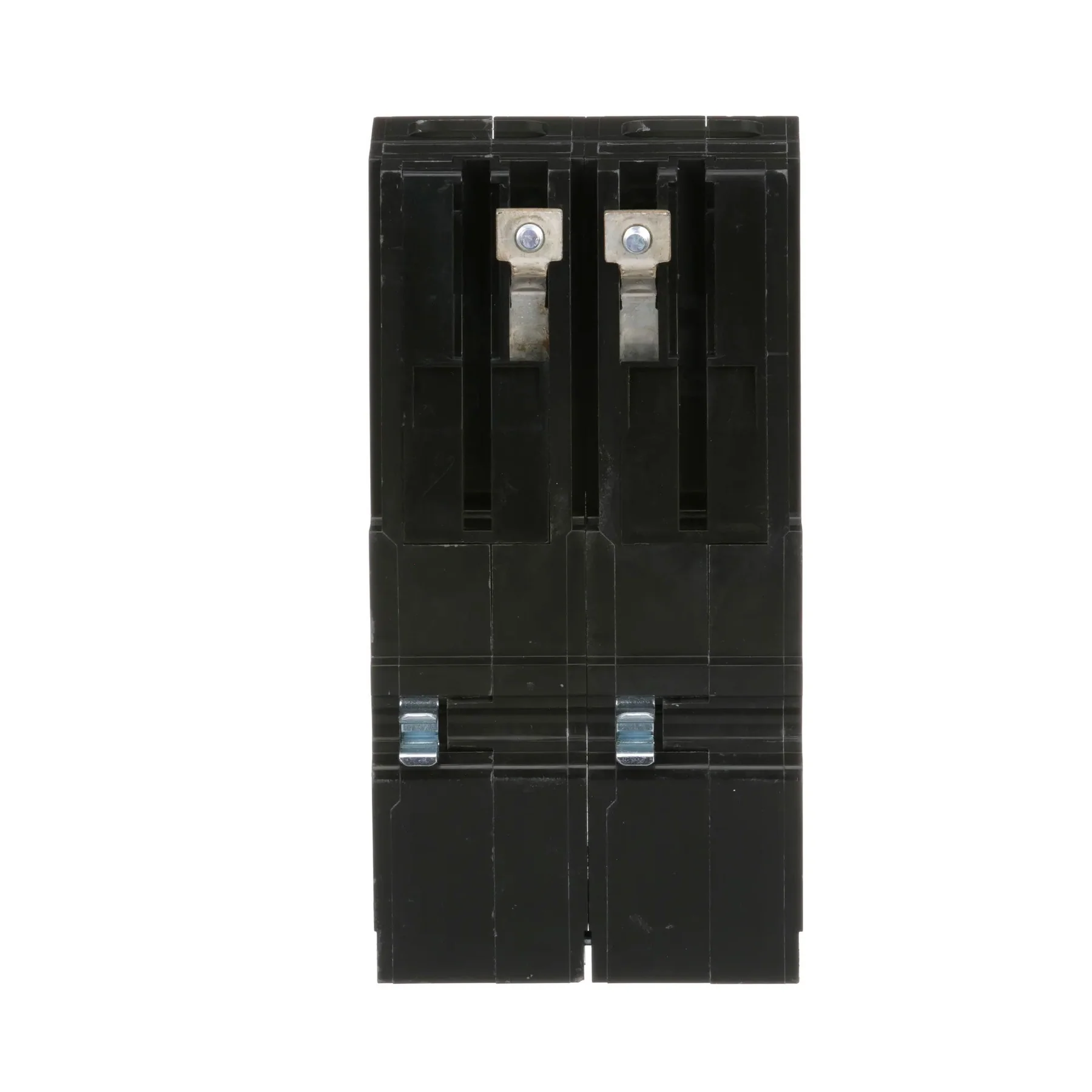

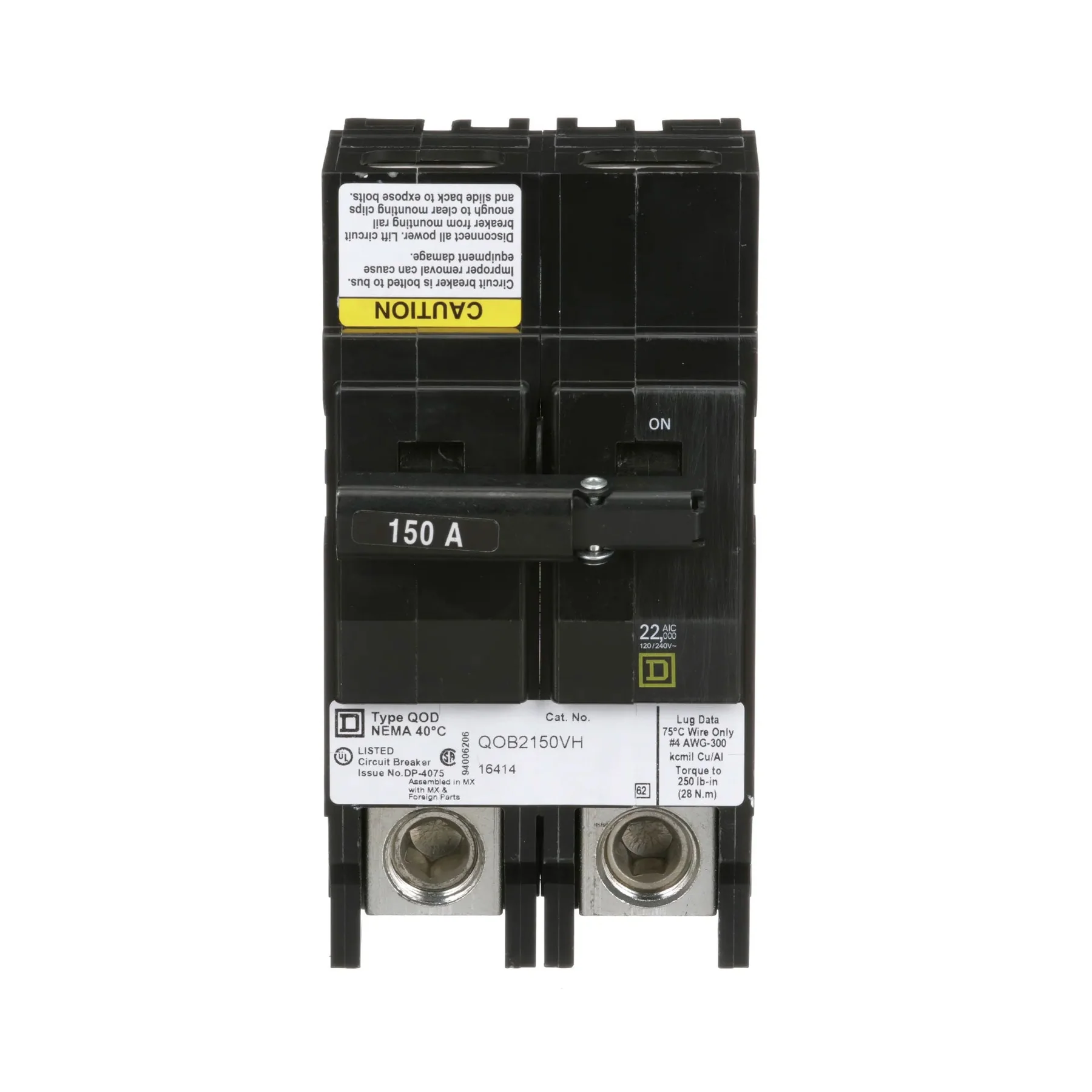

FavoriteQOB2150VH – Square D – Circuit Breaker Bolt On – 150 Amp – 2 Pole – 240 Volt
$468.99
Description
MINIATURE STANDARD TYPE NQ PANELBOARD USED ON BOLT-ON INSTALLATION UL CSA APPROVAL 240 VOLT AC 50/60 HERTZ VOLTAGE RATING 22 KILOAMP AT 240 VOLT AC INTERRUPTING RATING 150 AMP CURRENT RATING 2 POLE(S) QO[TM] BRAND ROHS/REACH COMPLIANT OVERALL DIMENSION 2.99 INCH WIDTH X 4.88 INCH DEPTH X 5.71 INCH HEIGHT FRAME TYPE Q TERMINAL TYPE BOX LUG TERMINAL WIRE SIZE 4 AWG TO 300 KCMIL (COPPER/ALUMINUM) AMBIENT TEMPERATURE RATING 104 DEG F QOB-VH MODEL
Specifications
| Type | Miniature- Standard |
| Voltage Rating | 240 Volt AC 50/60 Hertz |
| Current Rating | 150 Amp |
| Number of Poles | 2 |
| Interrupting Rating | 22 Kiloamp at 240 Volt AC |
| Installation | Bolt-ON |
| Used On | NQ Panelboard |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOB-VH |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 2.99 Inch Width x 4.88 Inch Depth x 5.71 Inch Height- Frame Type Q- Terminal Type Box Lug- Terminal Wire Size 4 AWG to 300 KCMIL (Copper/Aluminum)- Ambient Temperature Rating 104 Deg F |
| Features/Benefits | HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Green Premium Product |
Additional information
| Weight | 1.2 lbs |
|---|---|
| Condition | New |
| GTIN |
