In stock

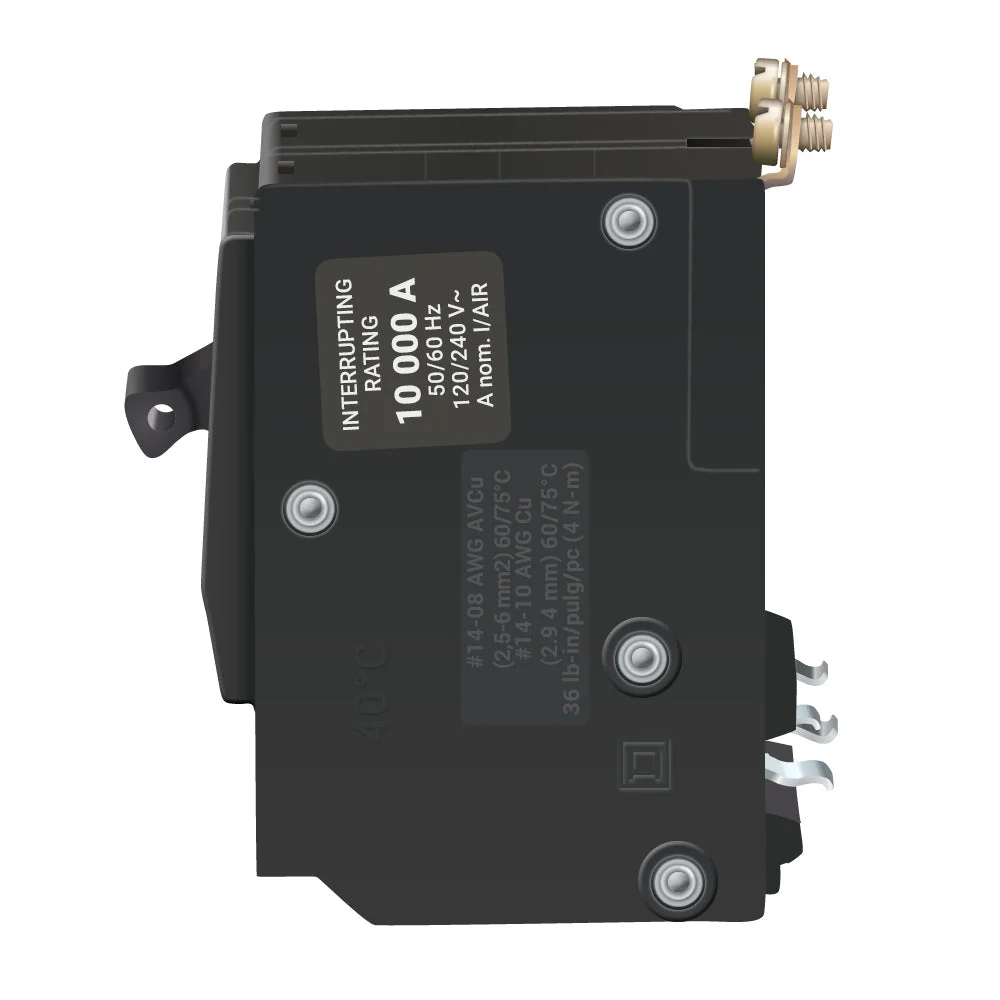

FavoriteQOB230 – Square D – 30 Amp Circuit Breaker Bolt-On – 30 Amp – 2 Pole – 240 Volt
$10.79 – $23.99
Description
Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 30 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 8 AWG.
Specifications
| Type | Miniature- Standard |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 30 Amp |
| Number of Poles | 2 |
| Interrupting Rating | 10 Kiloamp at 120/240 Volt AC- 5 Kiloamp at 48 Volt DC |
| Installation | Bolt-ON |
| Used On | NQ Panelboard |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOB |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 1.5 Inch Width x 2.91 Inch Depth x 2.99 Inch Height- Frame Type Q- Terminal Type Pressure Plate- Terminal Wire Size 14 to 8 AWG (Copper/Aluminum)- Ambient Temperature Rating 104 Deg F |
| Features/Benefits | HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Toxic Heavy Metal Free- Green Premium Product |
Additional information
| Weight | 1.5 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
