In stock

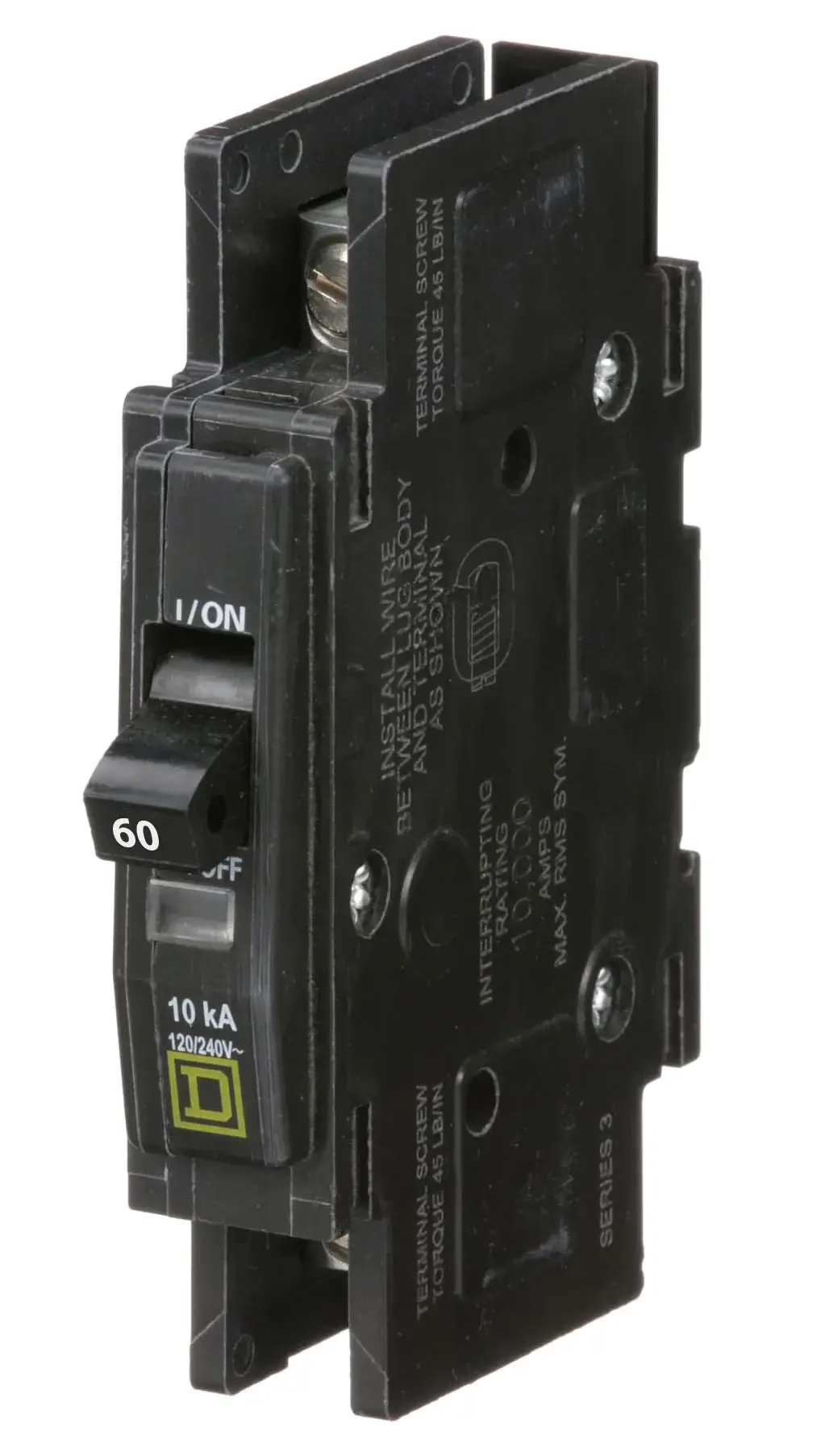

FavoriteQOU160 – Square D – 60 Amp Circuit Breaker Bolt-On – 60 Amp – 1 Pole – 120 Volt
$17.99
Description
MINIATURE STANDARD TYPE 0.75 INCH WIDTH X 2.95 INCH DEPTH X 4.05 INCH HEIGHT SIZE OEM USED ON 14 TO 2 AWG (COPPER/ALUMINUM) WIRE SIZE UL CSA APPROVAL 120/240 VOLT AC 50/60 HERTZ 48 VOLT DC VOLTAGE RATING DIN RAIL/UNIT/SURFACE/FLUSH MOUNTING 10 KILOAMP INTERRUPTING RATING 60 AMP CURRENT RATING 1 POLE(S) SLOTTED BOX LUG LINE/LOAD TERMINAL TYPE QO[TM] BRAND ROHS/REACH COMPLIANT TIGHTENING TORQUE RATING 45 INCH-POUND APPLICABLE STANDARD IEC QOU MODEL
Specifications
| Type | Miniature- Standard |
| Number of Poles | 1 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 60 Amp |
| Interrupting Rating | 10 Kiloamp |
| Terminal Type | Slotted Box Lug Line/Load |
| Wire Size | 14 to 2 AWG (Copper/Aluminum) |
| Mounting | DIN Rail/Unit/Surface/Flush |
| Used On | OEM |
| Size | 0.75 Inch Width x 2.95 Inch Depth x 4.05 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOU |
| Additional Information | RoHS/REACH Compliant- Tightening Torque Rating 45 Inch-Pound- Applicable Standard IEC |
| Features/Benefits | RoHS/REACH Compliant- Mercury-Free- Halogen-Free- Toxic Heavy Metal Free- HACR and Switching Duty Rated- Green Premium Product |
Additional information
| Weight | 1.5 lbs |
|---|---|
| Condition | New, Used |
| GTIN |
