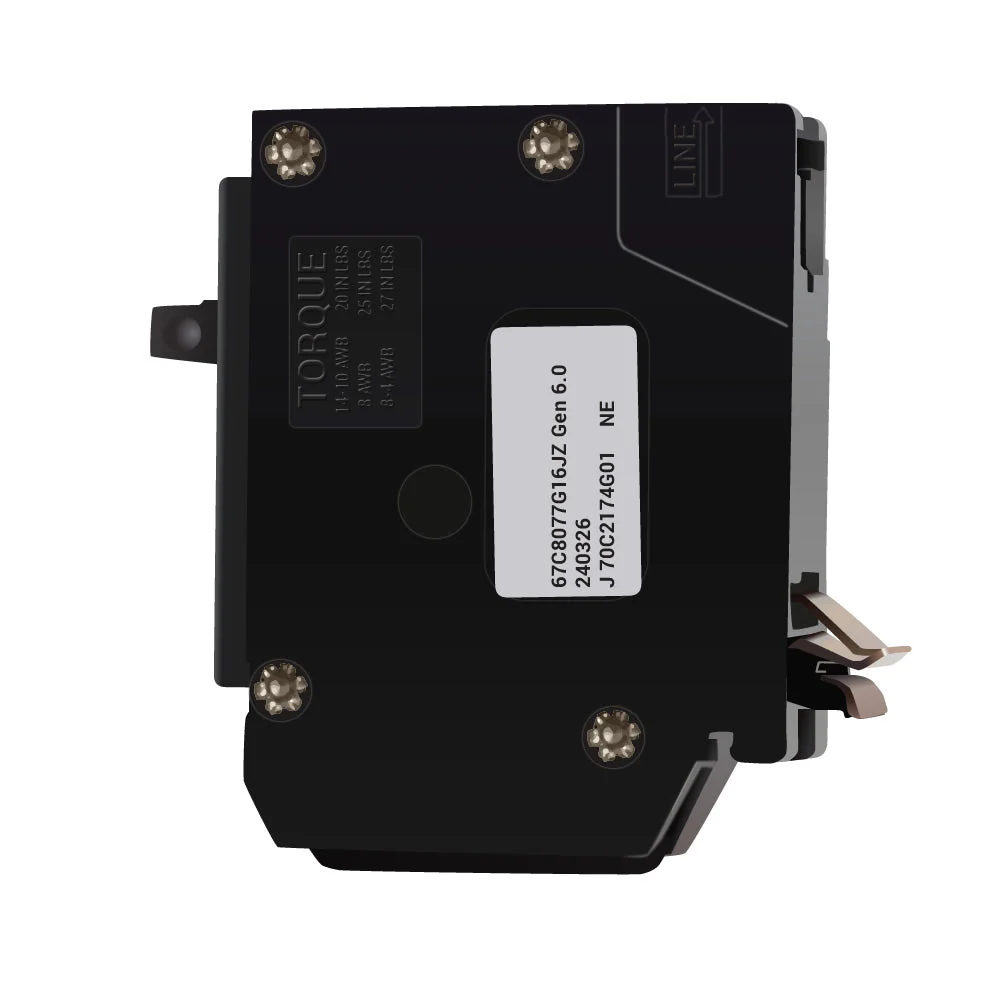

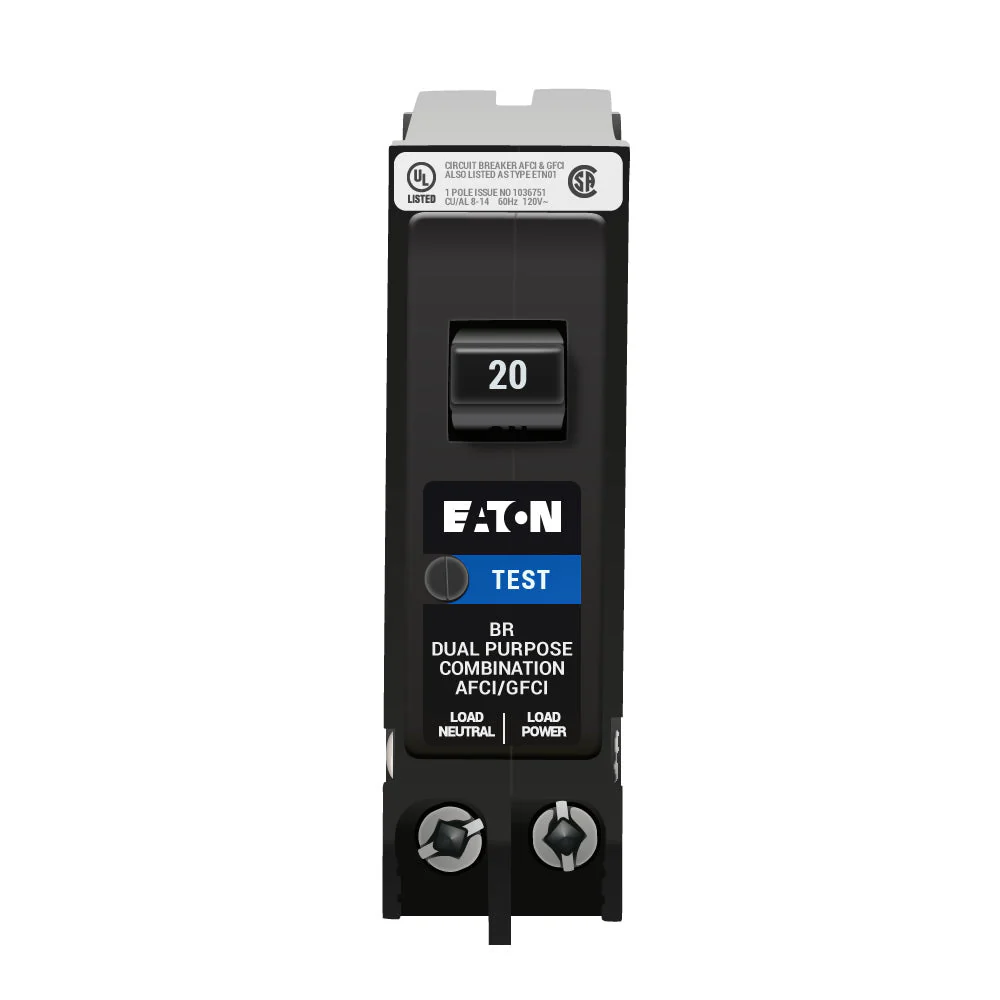

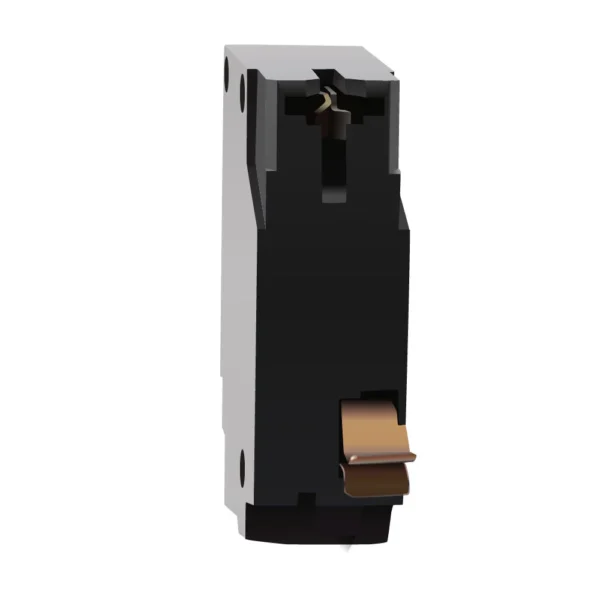

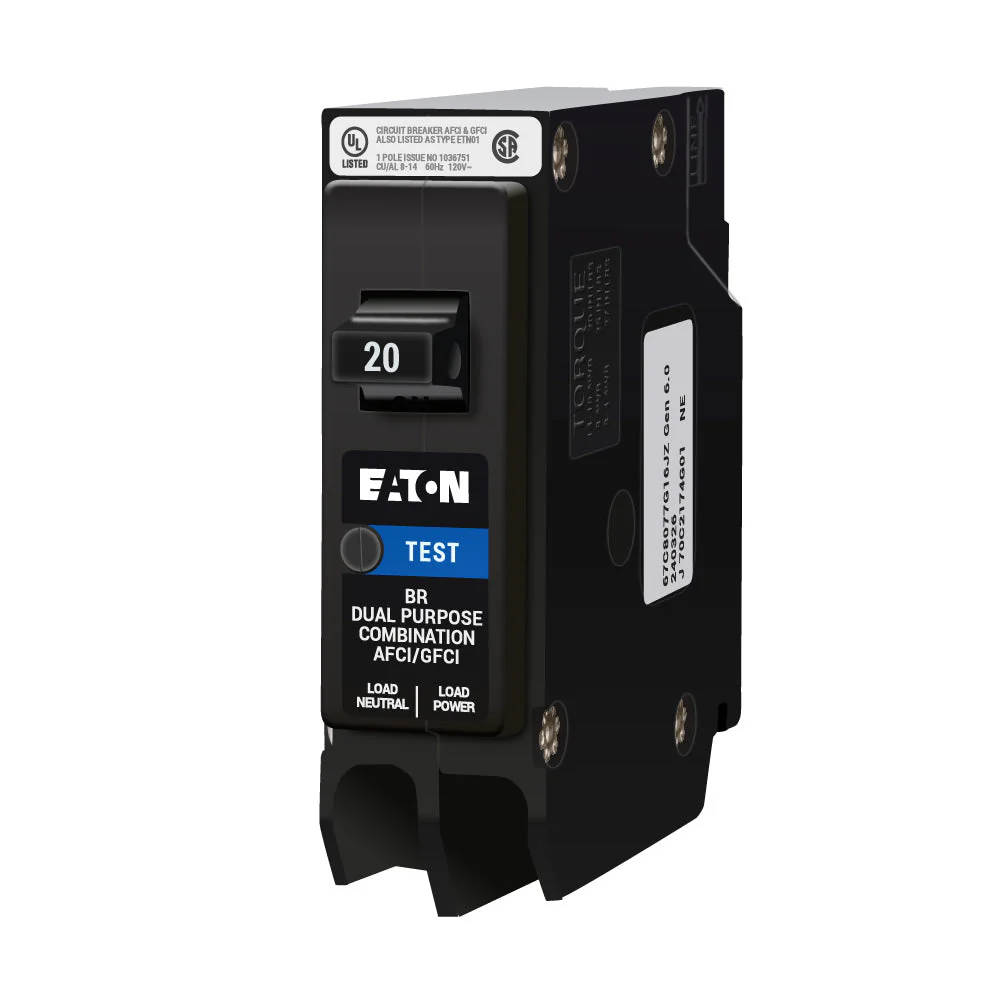

FavoriteBRP120DF – Eaton Cutler-Hammer 20 Amp 1 Pole 120 Volt Plug-In Molded Case Circuit Breaker
$39.99
Description
The Eaton BRP120DF is a 1 pole thermal magnetic arc/ground fault molded case circuit breaker with a current rating of 20 amps and a voltage rating of 120/240 v. It has an interrupt rating of 10 kAIC. The BRP120DF has a plug on mounting type, and includes long-time and instantaneous trip functions.
Specifications
| Brand | Eaton |
| Series | BR |
| Amperage | 20 A |
| Voltage | 120/240 V |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Plug On |
| Approval | UL |
| Interrupting Rating | 10 kAIC |
| Frame Type | BR |
| Connection Type | Plug-In |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Plug-On Neutral |
| Wire Gauge | 14 to 4 AWG |
Additional information
| Weight | 1 lbs |
|---|---|
| Condition | New |
| GTIN |
