AN16AN0AC – Eaton – Electric Motor Starter 9 Amp – 3 Pole – 600 Volt

SKU: AN16AN0AC Categories: , , , ,

$269.99

Description

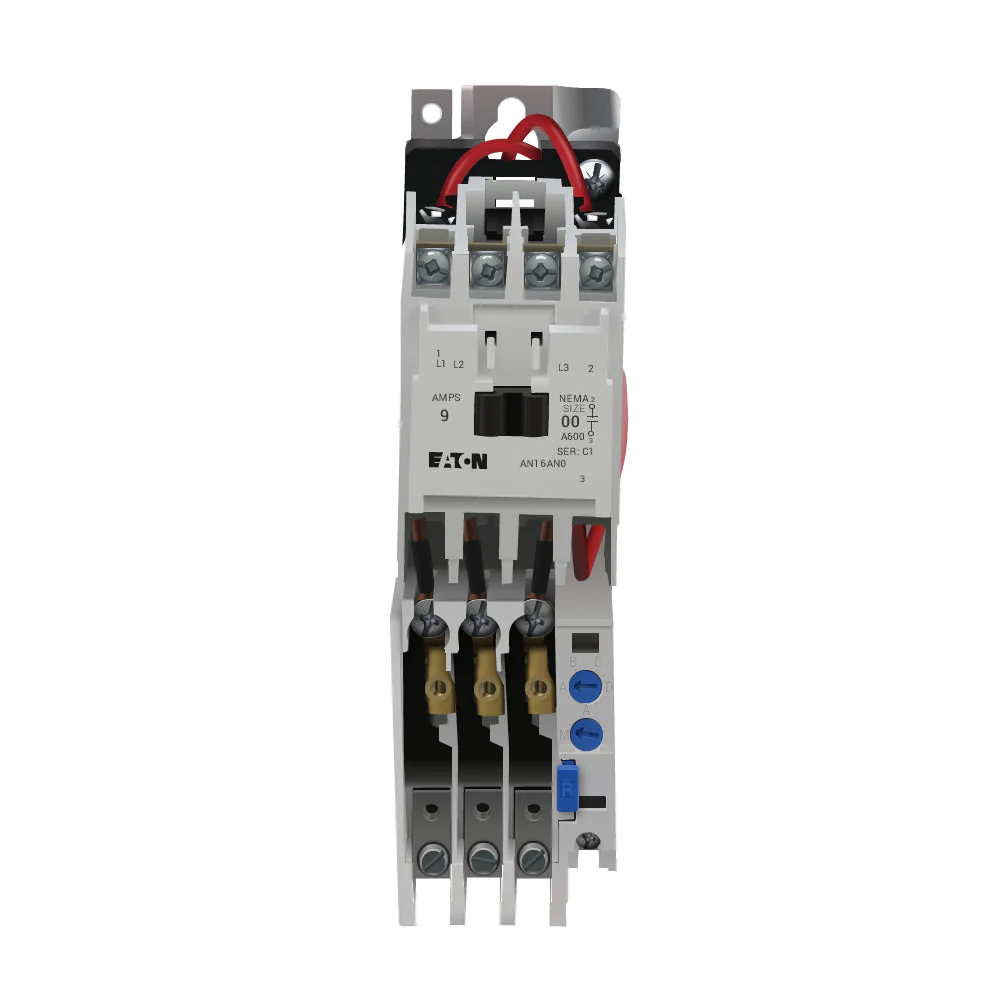

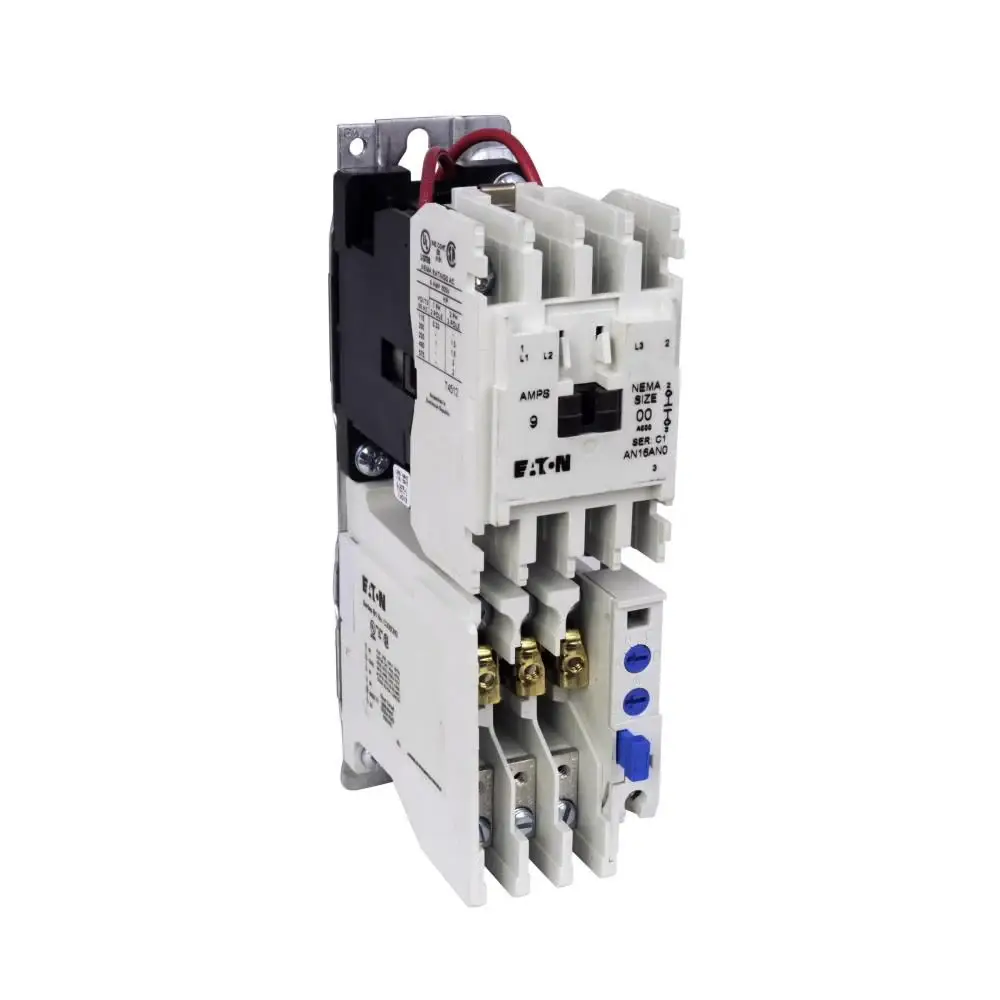

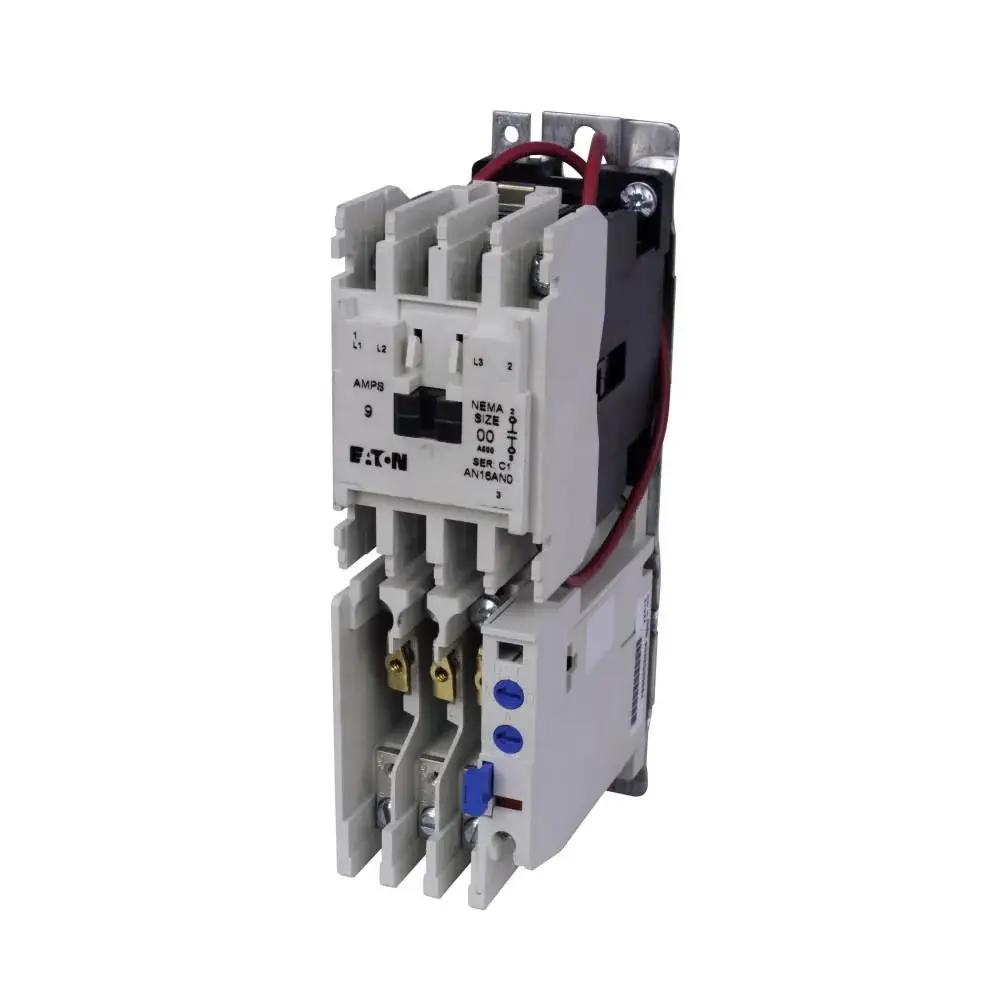

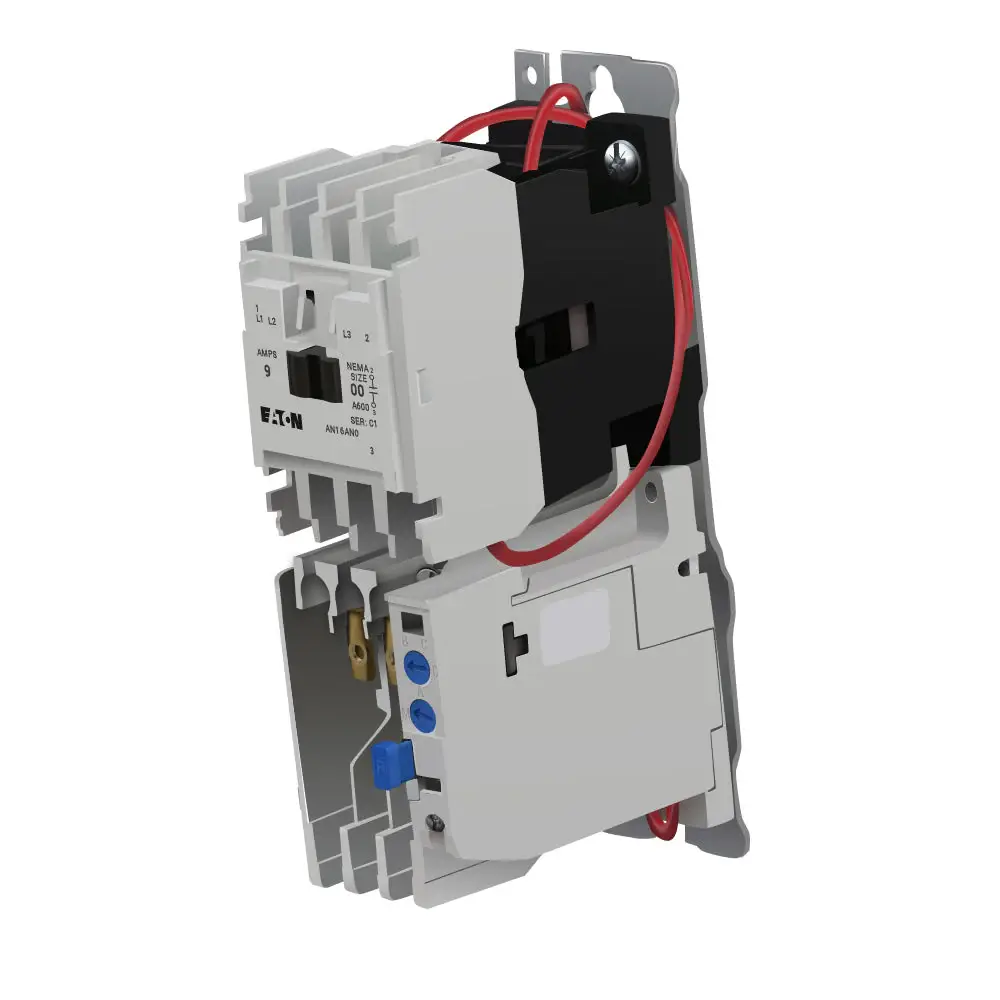

The Eaton AN16AN0AC is a 3 Pole starter with a current rating of 9 Amps and a voltage rating of 600V. It has an coil volts of 110-120VAC at 50/60Hz. The AN16AN0AC has a horizontal mounting type and it can be used with freedom series motor control systems.

Specifications

Type Full Voltage- Non-Reversing
Power Rating/Voltage 1/3 HP at 115 Volt 1-Phase- 1 HP at 230 Volt 1-Phase- 1-1/2 HP at 380/208/240 Volt 3-Phase- 2 HP at 480/600 Volt 3-Phase
Current Rating 9 Amp
Phase 1 or 3
Coil Voltage 110 Volt AC at 50 Hertz- 120 Volt AC at 60 Hertz
Auxiliary Contact 1NO
Size NEMA 00
Enclosure Type Open
Overloads Bi-Metallic Ambient Compensated Overload Relay
Construction Standard NEMA
Model Freedom- AN16
Additional Information Number of Poles 3- Mounting Type Horizontal- Approval UL- CSA
Features/Benefits Horizontal or Vertical Mounting on Upright Panel for Application Freedom- Screw Type Power Terminals have Captive- Backed-Out Self-Lifting Pressure Plates with Screws—Reduced Wiring Time- Accessible Terminals for Easy Wiring. Optional Fingerproof Shields Available to Prevent Electrical Shock- Top Located Coil Terminals Convenient and Readily Accessible. 45 MM Contactor Magnet Coils have Three Terminals- Permitting Either Top or Diagonal Wiring—Easy to Replace European or U.S. Style Starters or Contactors without Changing Wiring Layout- Easy Coil Change and Inspectable/Replaceable Contacts
