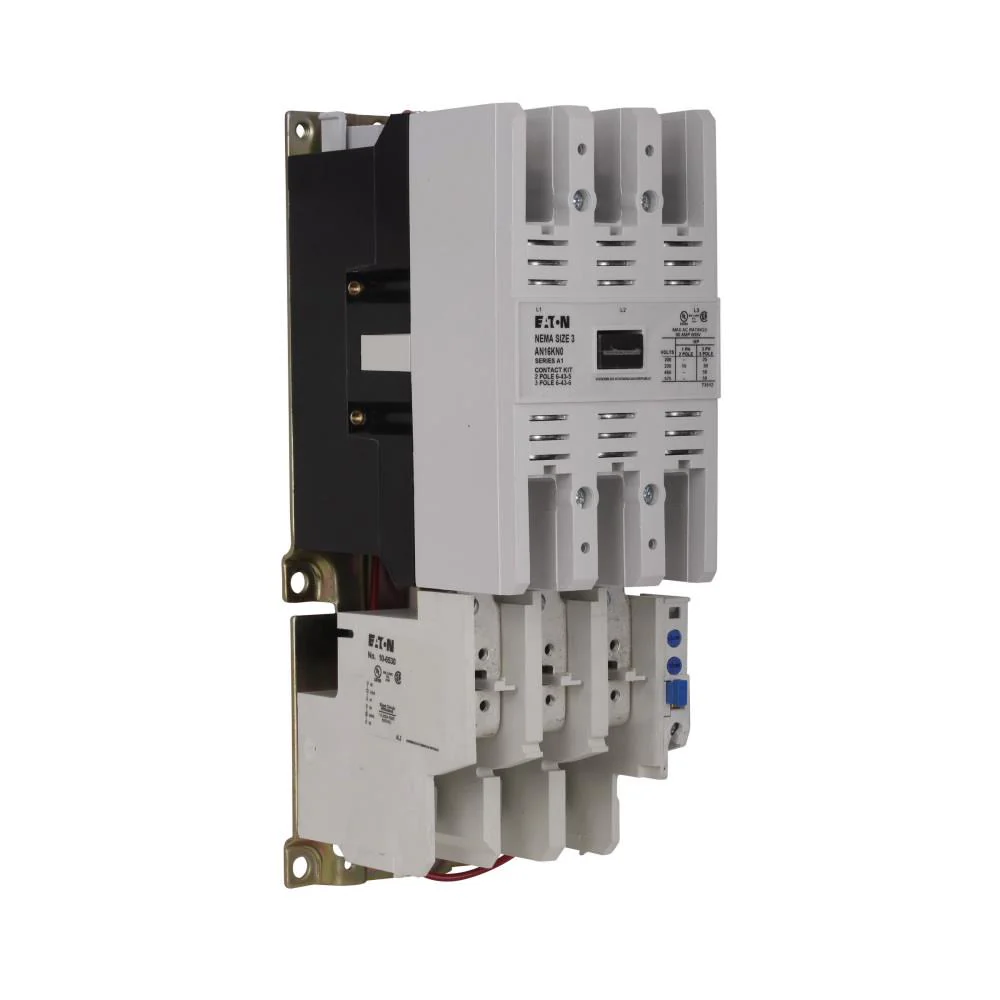

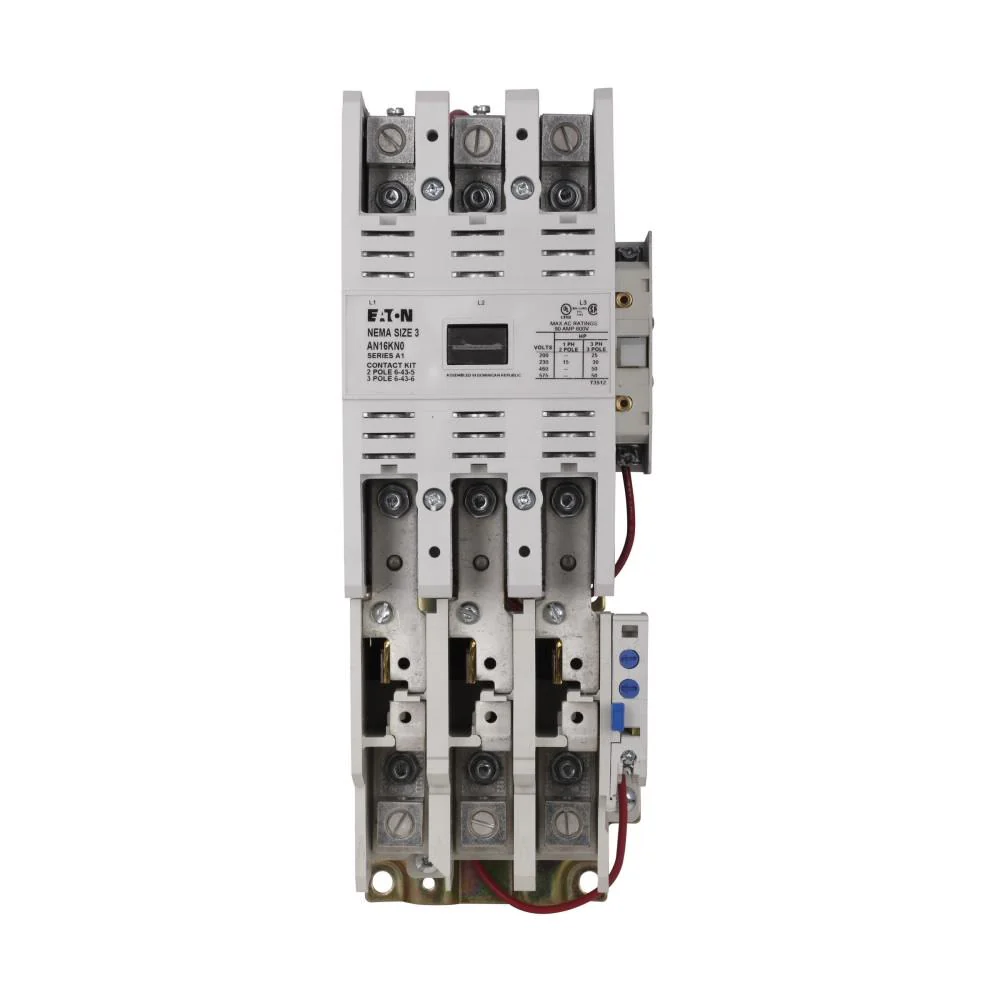

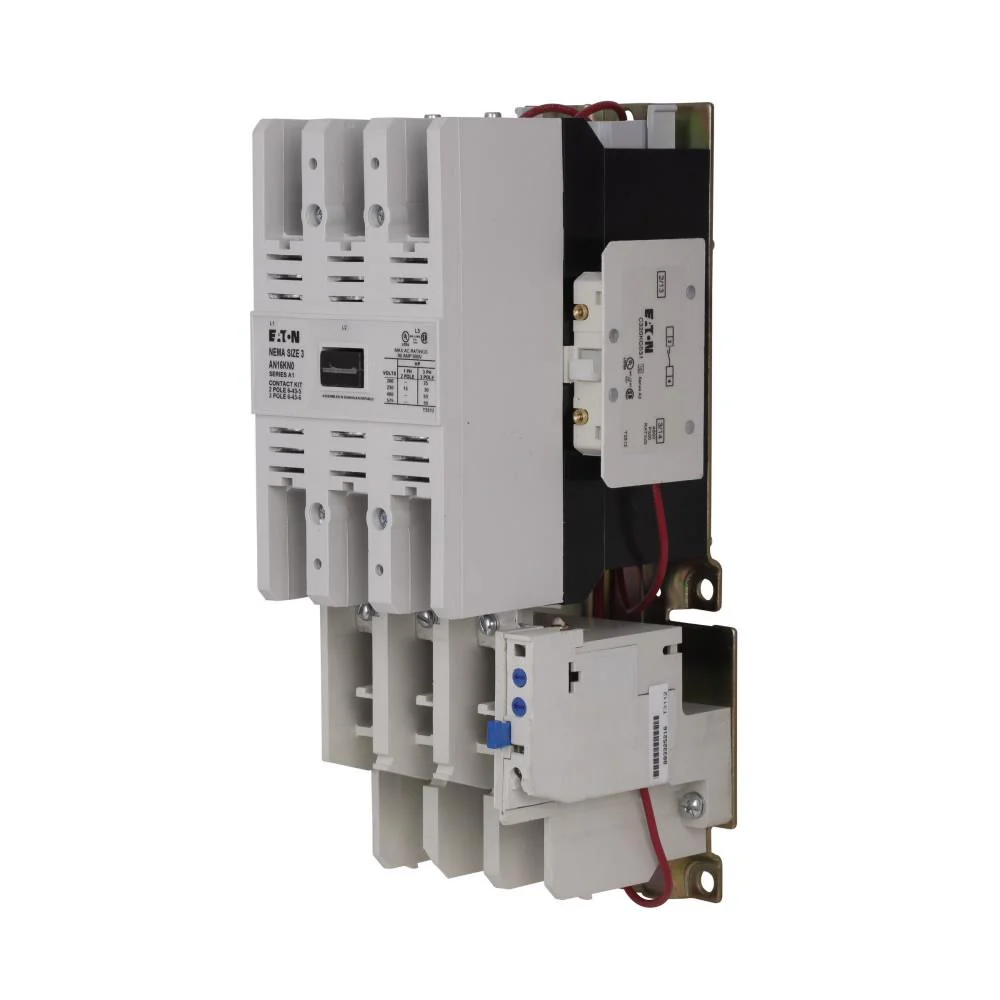

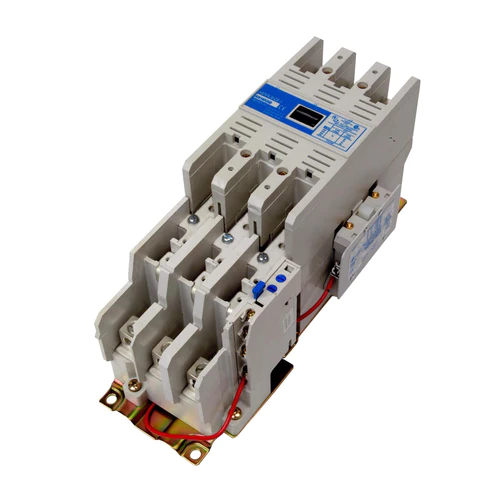

AN16KN0A Cutler Hammer Freedom Series Motor Starter 600V 90A 3 Pole Nema 3 120V Cloil

SKU: AN16KN0A Categories: , , ,

$1,109.99

Description

Eaton Freedom NEMA Starter, Full voltage non-reversing, C306 bi-metal overload relay, NEMA Size 3 open enclosure – 90 A, Horizontal mounting, 120/60 or 110/50 coil voltage

Specifications

Type Full Voltage- Non-Reversing
Power Rating/Voltage 25 HP at 208 Volt- 30 HP at 240 Volt- 50 HP at 380/480/600 Volt 3-Phase
Current Rating 90 Amp
Phase 3
Coil Voltage 110 Volt AC at 50 Hertz- 120 Volt AC at 60 Hertz
Auxiliary Contact 1NO
Size NEMA 3
Enclosure Type Open
Overloads Bi-Metallic Ambient Compensated Overload Relay
Construction Standard NEMA
Model Freedom- AN16
Additional Information Number of Poles 3- Mounting Type Horizontal- Approval UL- CSA
Features/Benefits Horizontal or Vertical Mounting on Upright Panel for Application Freedom- Screw Type Power Terminals have Captive- Backed-Out Self-Lifting Pressure Plates with Screws—Reduced Wiring Time- Accessible Terminals for Easy Wiring. Optional Fingerproof Shields Available to Prevent Electrical Shock- Top Located Coil Terminals Convenient and Readily Accessible. 45 MM Contactor Magnet Coils have Three Terminals- Permitting Either Top or Diagonal Wiring—Easy to Replace European or U.S. Style Starters or Contactors without Changing Wiring Layout- Easy Coil Change and Inspectable/Replaceable Contacts
