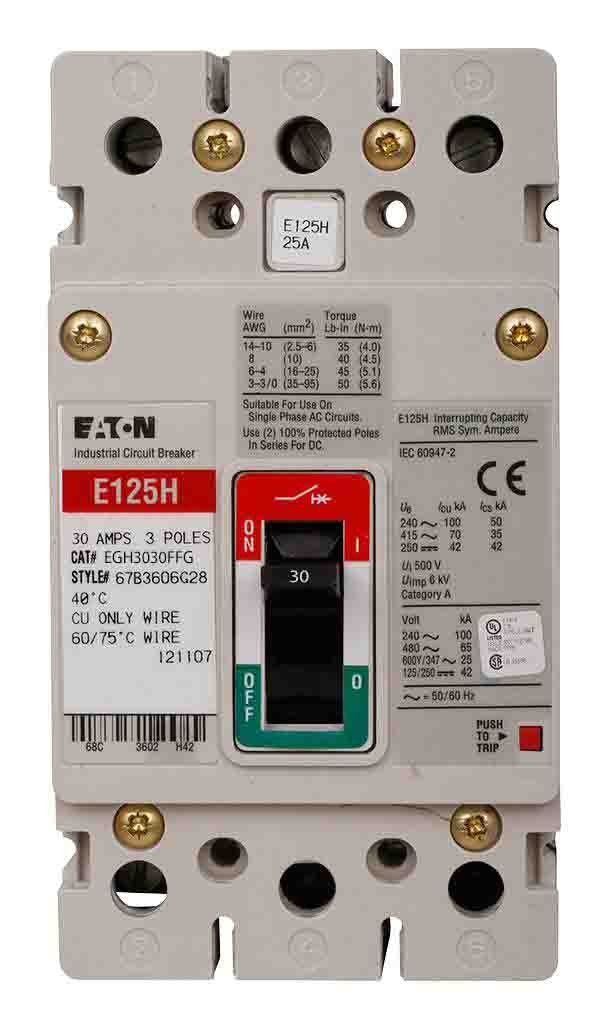

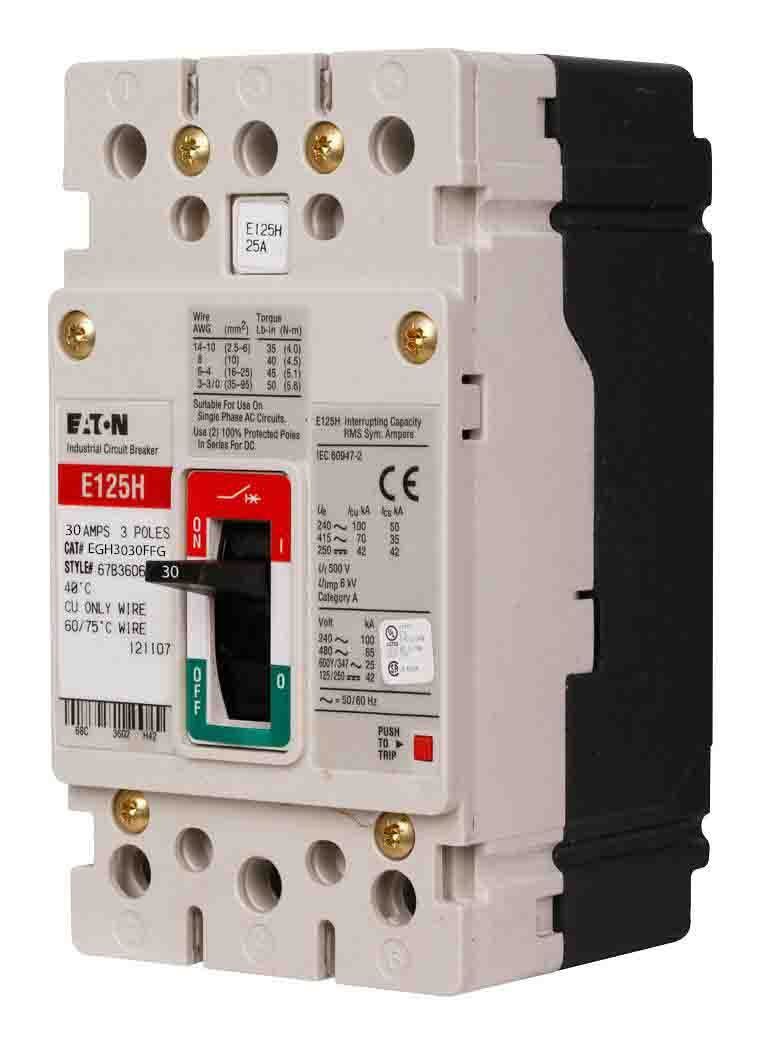

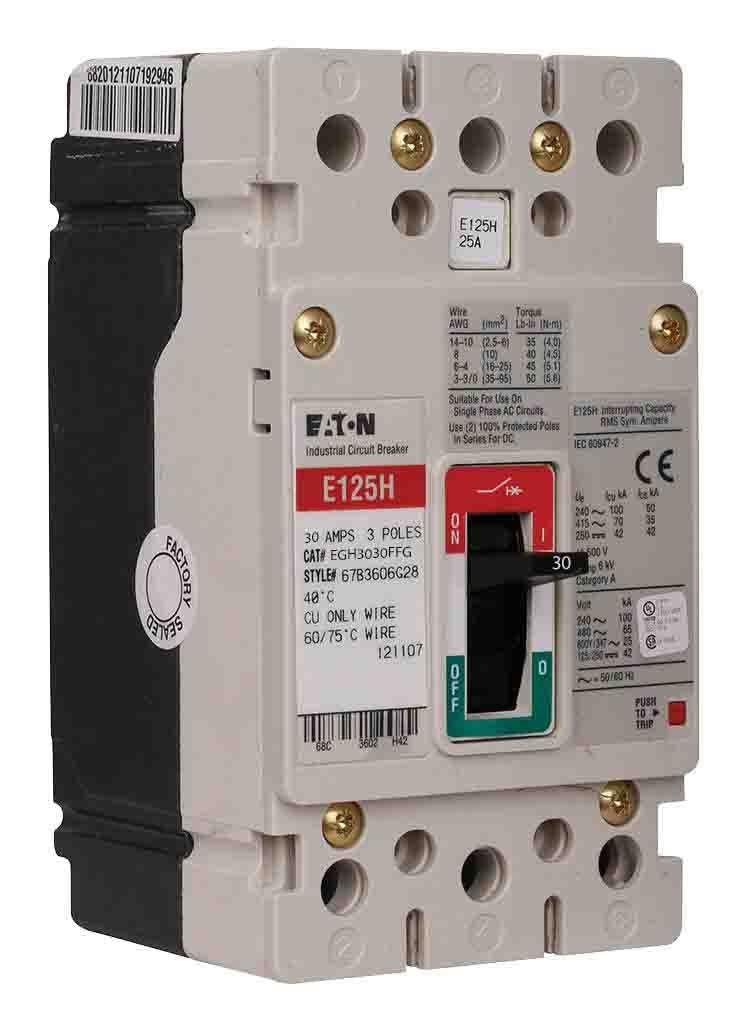

EGH3030FFG – Eaton – Molded Case Circuit Breaker Feed-Thru – 30 Amp – 3 Pole – 600 Volt

SKU: EGH3030FFG Categories: , ,

$492.99

Description

Cutler Hammer EGH G series three pole 30 ampere feed-thru molded case circuit breaker with maximum voltage rating of 600V tripping method thermal magnetic and standard interrupting rating of 65 kiloampere at 480V complete with non-interchangeable trip unit and line & load side lug terminals.

Specifications

Type Molded Case- Fixed Thermal Fixed Magnetic
Frame Type EG
Voltage Rating 415/480 V at 50/60 Hz
Maximum AC Voltage Rating 480
Current Rating 30 Ampere at 40 Deg C
Number of Poles 3
Interrupting Rating 70 Kiloampere at 415- 65 Kiloampere at 480 VAC- 10 Kiloampere at 250 VDC
Terminal Type Standard Line and Load Terminal
Size 3 Inch W x 2.99 Inch D x 5.5 Inch H
Approval UL- CSA- CE
Model G
Additional Information Includes Frame- Trip Unit- Standard Terminals and Mounting Hardware- Applicable Standard NEMA AB1- AS 2184/3947-2- BS 4752- IEC 60947-2- NFC- SABS 156- SEV 947.2- VDE 0660
Features/Benefits Field-Fit Accessories- Common Accessories Through 630 Amperes- Electronic Trip Units from 20 to 2500 Amperes- UL-listed and IEC-Rated- 30 mA Ground Fault/Earth Leakage Modules- Built-in Ground Fault Protection Down to 20 Amperes

Shipping information

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Warranty information

At Breakers & Controls Florida, we stand behind the quality and reliability of our products. We understand that purchasing used and obsolete breakers and controls requires confidence in their performance. Therefore, we have established the following warranty policy to ensure your satisfaction:

  1. Limited Warranty: All used and obsolete breakers and controls purchased from [Company Name] are covered by a limited warranty. This warranty guarantees that the products will be free from defects in material and workmanship under normal use and service for a specified period from the date of purchase.
  2. Warranty Period: The warranty period for used and obsolete breakers and controls may vary depending on the specific product and its condition at the time of purchase. The warranty duration will be clearly stated on the product listing or accompanying documentation. Please review the product description or contact our customer support team for the warranty period applicable to your purchase.
  3. Warranty Coverage: Our warranty covers the repair or replacement of defective parts or products at our discretion. If a covered product is found to be defective within the warranty period, we will either repair the product, replace it with an equivalent item, or provide a refund, depending on the availability of the specific product and the customer’s preference.

Additional information

Weight 3 lbs
Condition

New, Used
