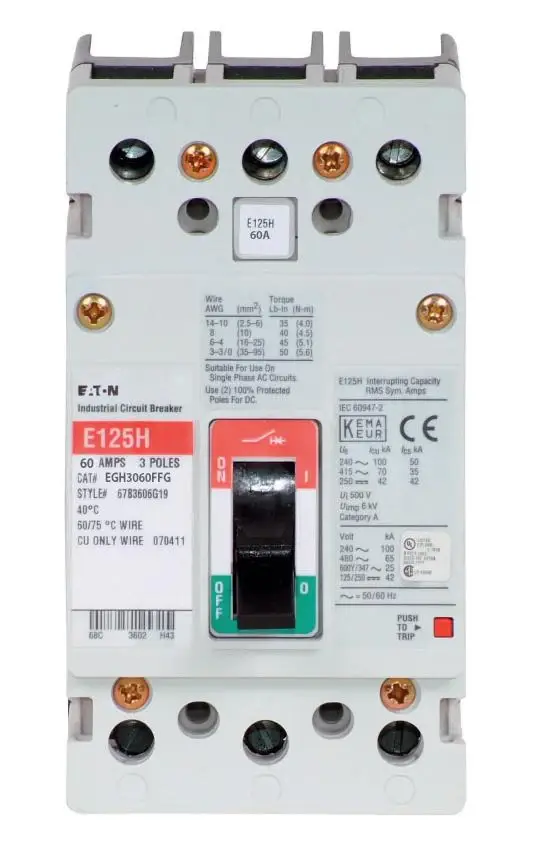

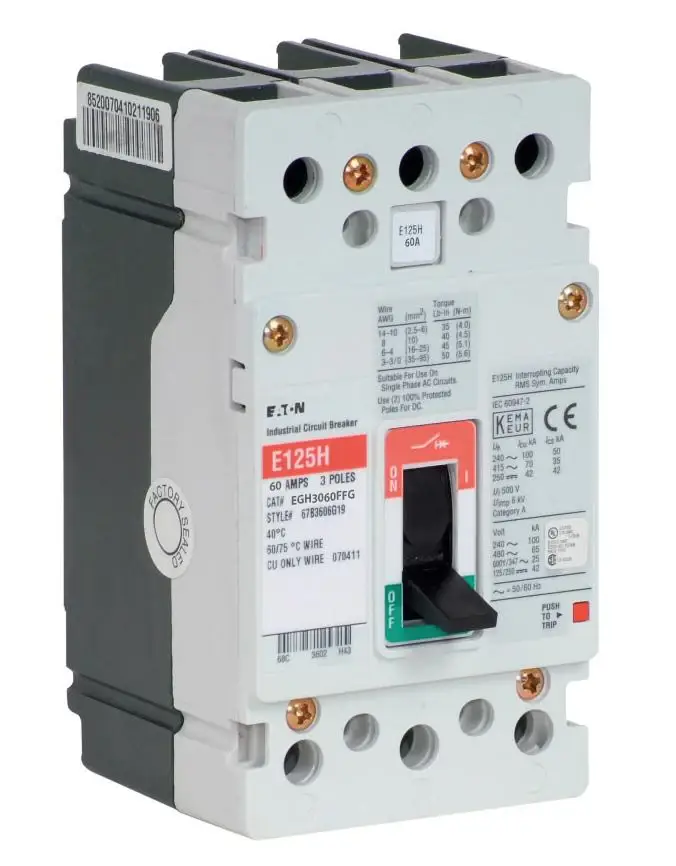

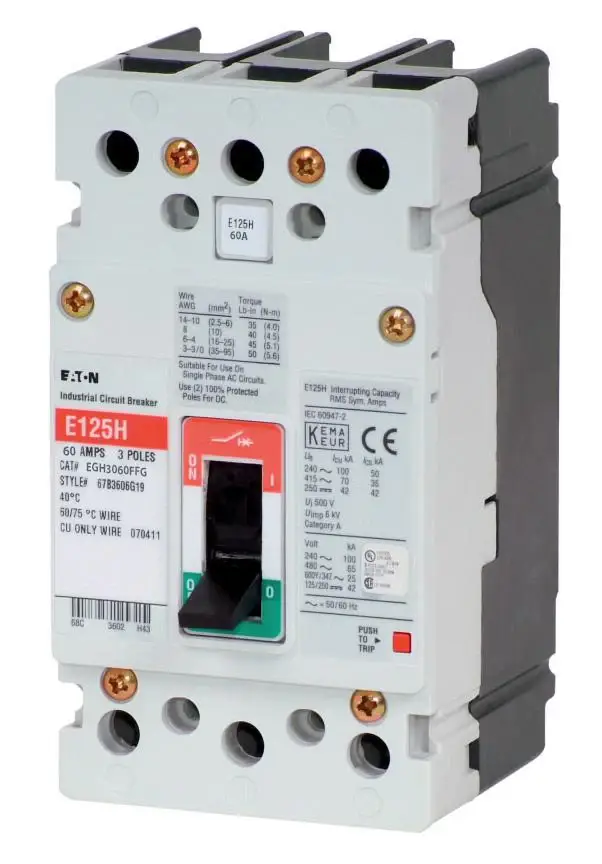

EGH3060FFG – Eaton – Molded Case Circuit Breaker Feed-Thru – 60 Amp – 3 Pole – 600 Volt

SKU: EGH3060FFG Categories: ,

$492.99

Description

Cutler Hammer EGH G series three pole 60 ampere feed-thru molded case circuit breaker with maximum voltage rating of 600V tripping method thermal magnetic and standard interrupting rating of 65 kiloampere at 480V complete with non-interchangeable trip unit and line & load side lug terminals.

Specifications

Type Molded Case- Fixed Thermal Fixed Magnetic
Frame Type EG
Voltage Rating 415/480 V at 50/60 Hz
Maximum AC Voltage Rating 480
Current Rating 60 Ampere at 40 Deg C
Number of Poles 3
Interrupting Rating 70 Kiloampere at 415- 65 Kiloampere at 480 VAC- 10 Kiloampere at 250 VDC
Terminal Type Standard Line and Load Terminal
Size 3 Inch W x 2.99 Inch D x 5.5 Inch H
Approval UL- CSA- CE
Model G
Additional Information Includes Frame- Trip Unit- Standard Terminals and Mounting Hardware- Applicable Standard NEMA AB1- AS 2184/3947-2- BS 4752- IEC 60947-2- NFC- SABS 156- SEV 947.2- VDE 0660
Features/Benefits Field-Fit Accessories- Common Accessories Through 630 Amperes- Electronic Trip Units from 20 to 2500 Amperes- UL-listed and IEC-Rated- 30 mA Ground Fault/Earth Leakage Modules- Built-in Ground Fault Protection Down to 20 Amperes
