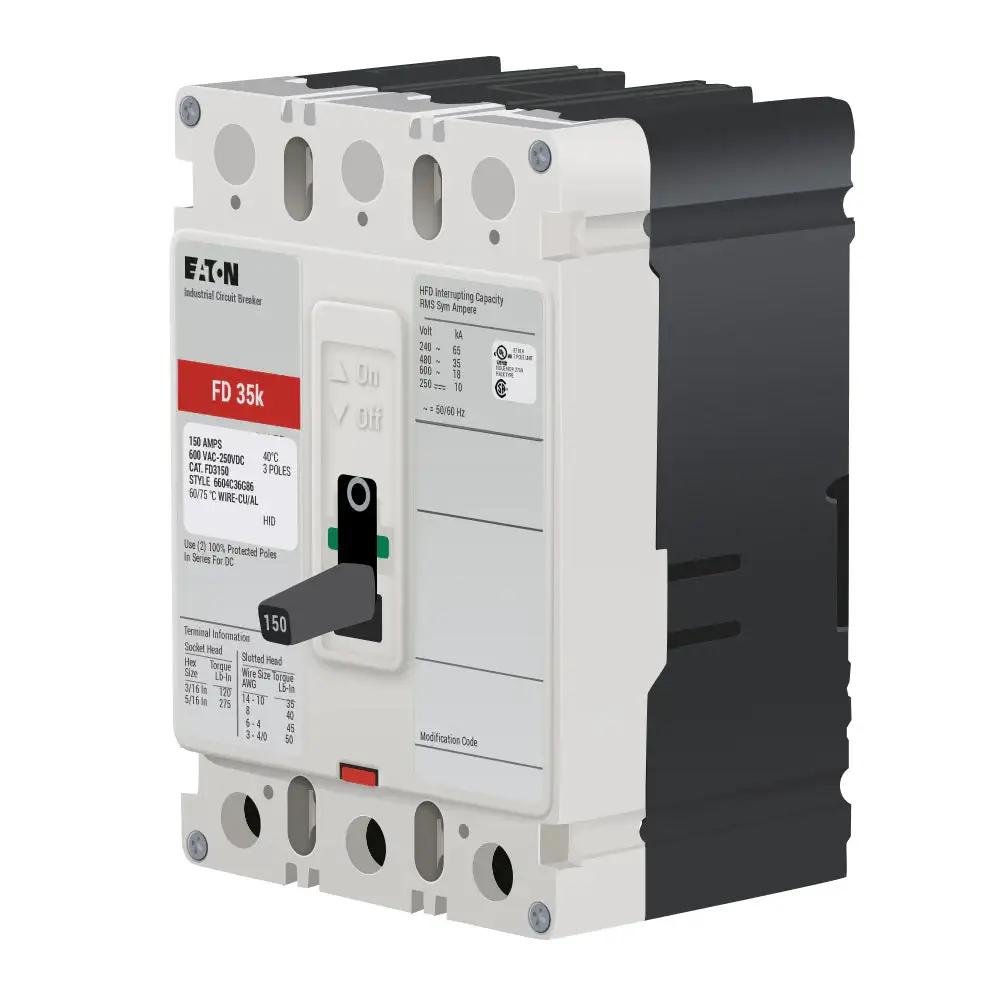

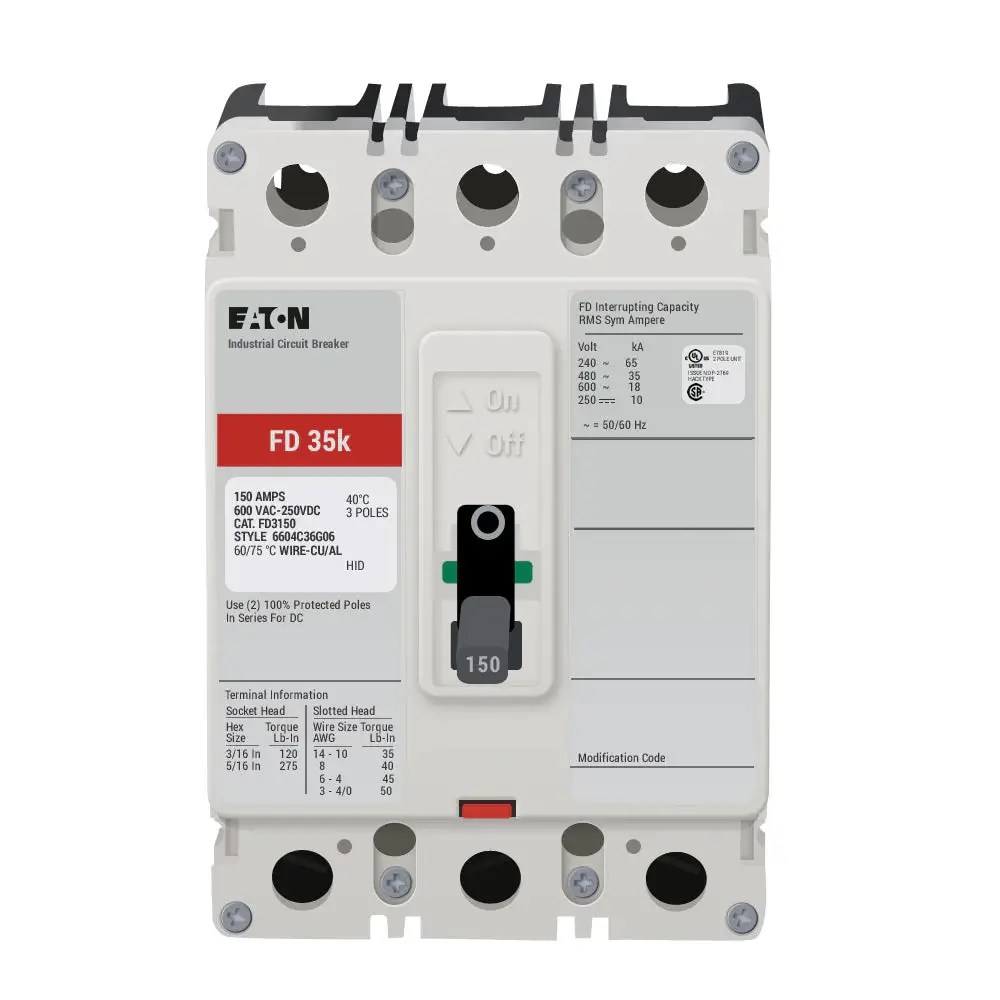

The Cutler Hammer FD3150 is a molded case circuit breaker. This type FD circuit breaker is a member of The series C family. The FD3150 is a 3 pole, 600 Volt, 150 amp rated circuit breaker, with an AIC rating of 35kA@480V and is manufactured by Cutler Hammer, Eaton and Westinghouse. The FD3150 uses a bolt-on connection and includes thermal magnetic protection
Specifications
Type
Molded Case- Thermal Magnetic
Frame Type
FD
Voltage Rating
600 Volt AC at 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating
600 Volt
Maximum DC Voltage Rating
250 Volt
Current Rating
150 Amp at 40 Deg C
Number of Poles
3
Interrupting Rating
65 Kiloamp at 240 Volt AC at 50/60 Hertz- 35 Kiloamp at 480 Volt AC at 50/60 Hertz- 18 Kiloamp at 600 Volt AC at 50/60 Hertz- 10 Kiloamp at 250 Volt DC
Terminal Type
Standard Pressure Load
Size
4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
Approval
UL 489- CSA C22.2
Model
C- FD
Additional Information
Includes Terminal- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660
Features/Benefits
All Eaton’s F-Frame Circuit Breakers are HACR Rated- All F-Frame Circuit Breakers are Suitable for Reverse Feed Use
