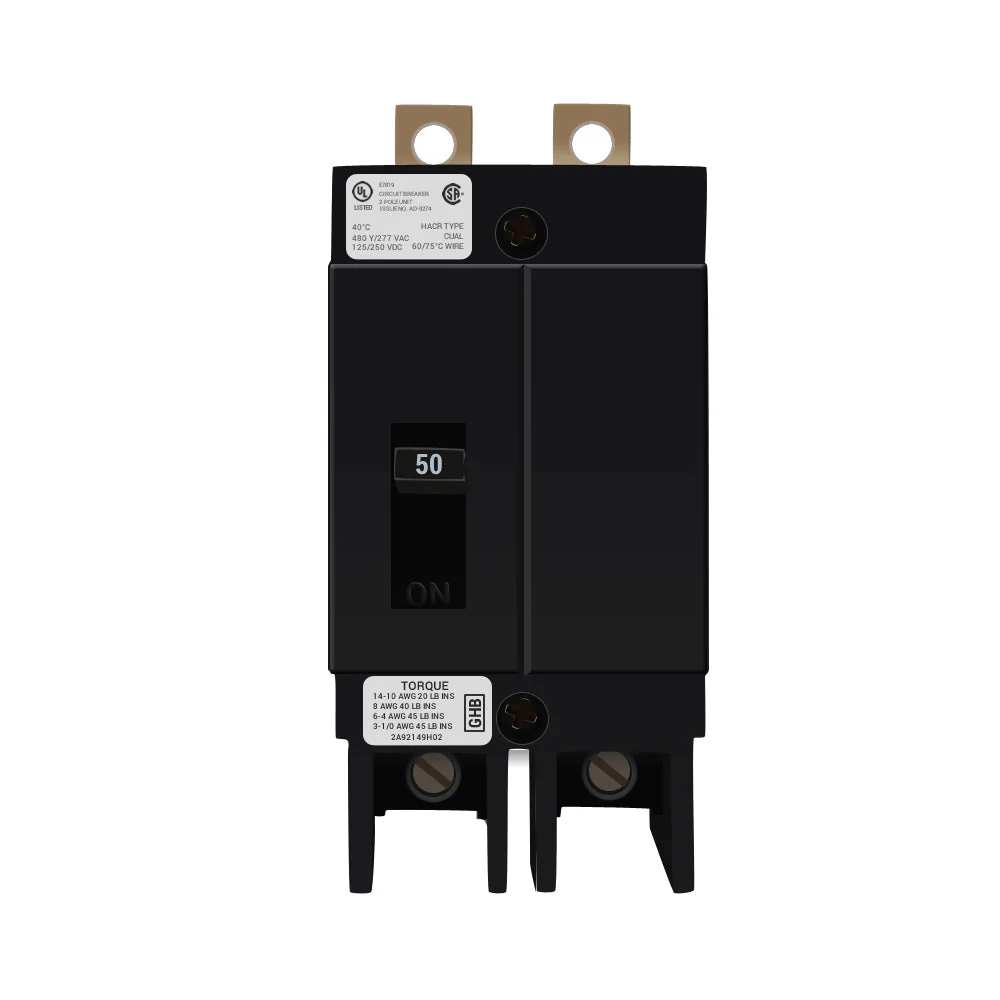

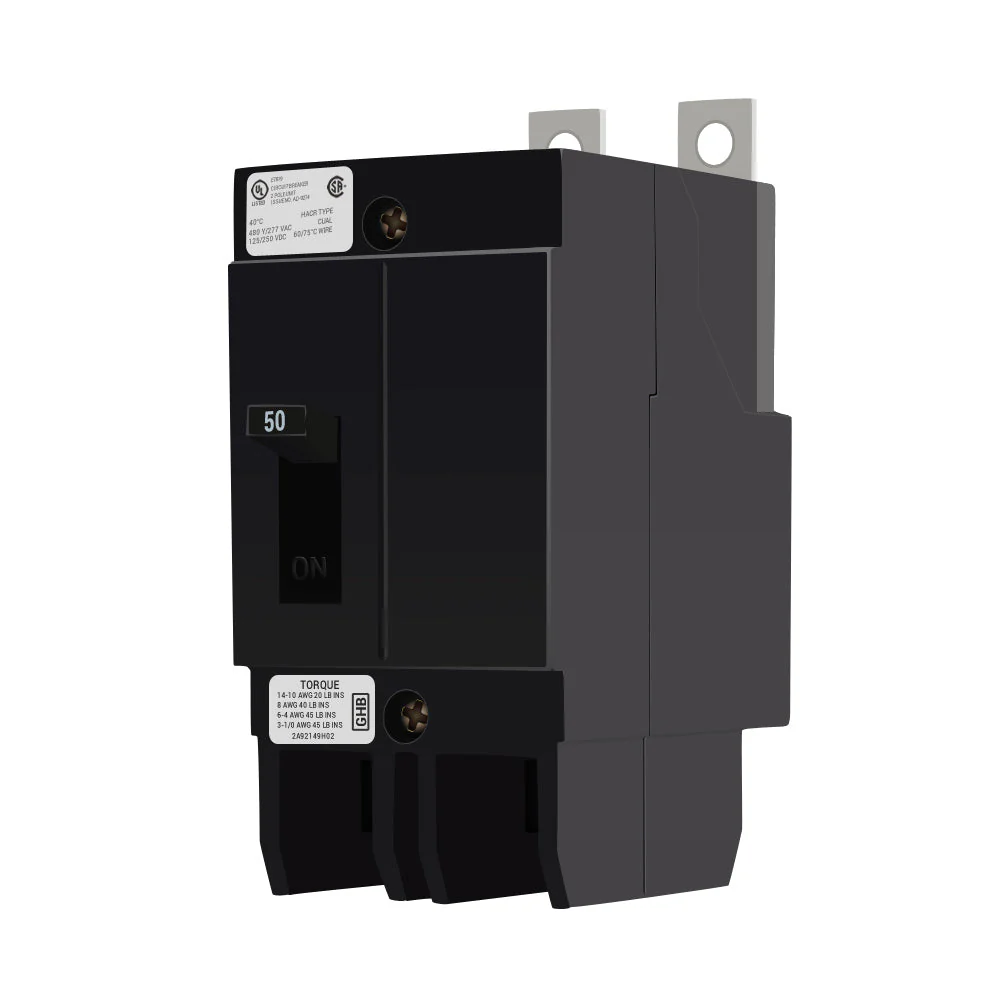

GHB2050 – Eaton – Molded Case Circuit Breaker Bolt-On – 50 Amp – 2 Pole – 480 Volt

SKU: GHB2050 Categories: , ,

$229.99

Description

The Cutler Hammer GHB2050 is a Molded Case Circuit Breaker. This type GHB circuit breaker is a member of The Series C family. The GHB2050 is a 2 pole, 480 Volt, 50 amp rated circuit breaker, with an AIC rating of 14kA@480V. The GHB2050 is manufactured by Eaton. The GHB2050 uses a Bolt-on connection.

Specifications

Type Molded Case- Thermal Magnetic
Frame Type G
Voltage Rating 277/480 Volt AC at 50/60 Hertz- 125/250 Volt DC
Maximum AC Voltage Rating 480 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 50 Amp at 40 Deg C
Number of Poles 2
Interrupting Rating 14 Kiloamp at 480 Volt AC Star/277 Volt AC/125/250 Volt DC
Terminal Type Aluminum Pressure Line and Load
Size 2.3 Inch Width x 3.9 Inch Depth x 4.8 Inch Height
Approval UL 489- CSA C22.2
Model C- GHB
Additional Information Mounting Type Bolt-On- Application Panelboard- Switchboard- Motor Control Center- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660
Features/Benefits All Two and Three-pole Circuit Breakers are of the Common Trip Type- on all Three-phase Delta (240 V) Grounded B Phase Applications- refer to Eaton- All G-Frame Circuit Breakers are Suitable for Reverse Feed Use- HACR Rated
