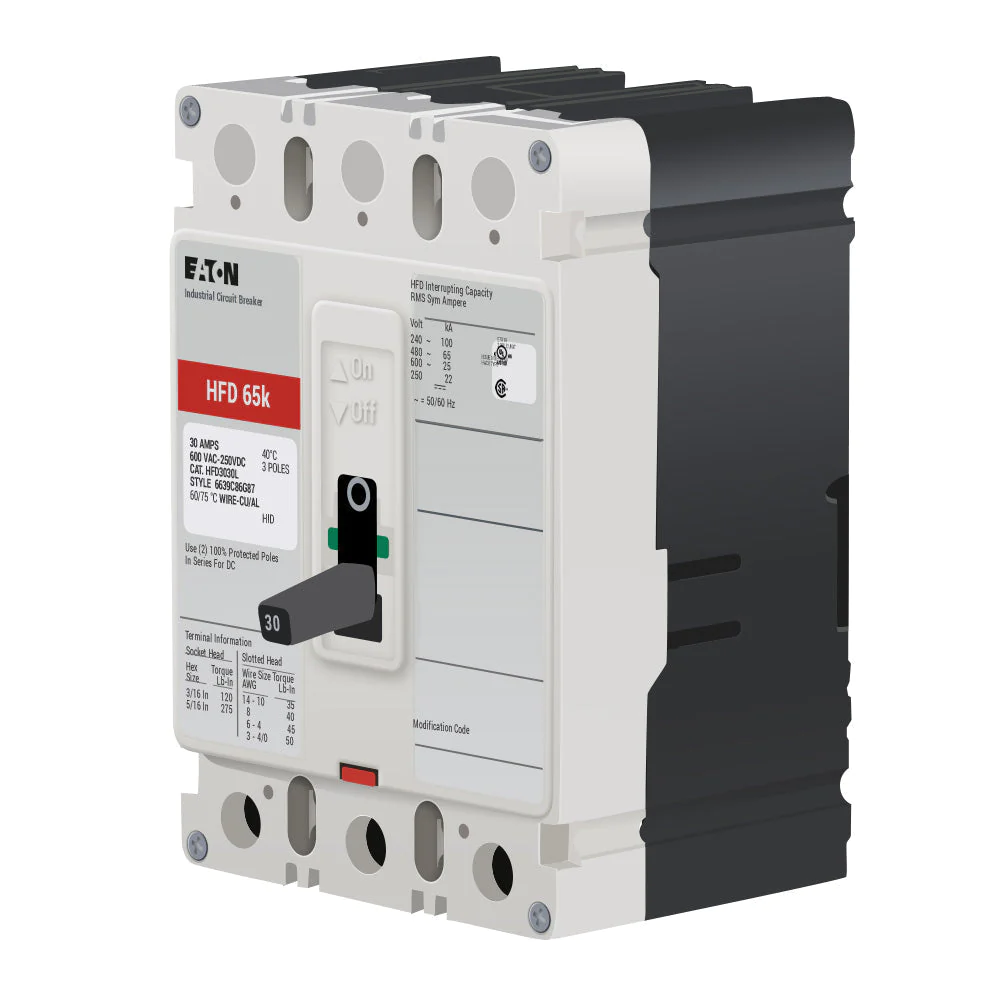

HFD3030L – Eaton – Molded Case Circuit Breaker Feed Thru – 30 Amp – 3 Pole – 600 Volt

SKU: HFD3030L Categories: ,

$659.99

Description

The Eaton HFD3030L is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600V. It has an interrupting rating of 65kAIC at 480V. The HFD3030L has a feed-thru connection type and includes long time and instantaneous trip functions.

Specifications

Type Molded Case- Thermal Magnetic
Frame Type FD
Voltage Rating 600 Volt AC 50/60 Hertz- 250 Volt DC
Maximum AC Voltage Rating 600 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 30 Amp at 40 Deg C
Number of Poles 3
Interrupting Rating 100 Kiloamp at 240 Volt AC at 50/60 Hertz- 65 Kiloamp at 480 Volt AC at 50/60 Hertz- 25 Kiloamp at 600 Volt DC- 22 Kiloamp at 250 Volt DC
Terminal Type Standard Pressure Line and Load
Size 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
Approval UL 489- CSA C22.2
Model HFD
Additional Information Application Panelboard- Switchboard- Motor Control Center- Applicable Standard NEMA AB1- AS 2184- BS 4752- IEC 157-1- SABS 156- SEV 157-1- VDE 0660
Features/Benefits All Eaton’s F-Frame Circuit Breakers are HACR Rated- All Circuit Breakers 10 Through 30 Amperes are Suitable for HID (High Intensity Discharge) Use- All F-Frame Circuit Breakers are Suitable for Reverse Feed Use

Shipping information

Free Shipping Policy
Parcel shipments with item value over $200.00 qualify for free economy shipping within the continental US. Please indicate at checkout if USPS or UPS is a required shipment method. We do not charge a handling fee or require a minimum amount on any order. Breakers & Controls Florida does not ship on customer accounts.

Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances Breakers & Controls Florida may reserve up to 5 business days to consolidate orders for complete shipment.

Warranty information

At Breakers & Controls Florida, we stand behind the quality and reliability of our products. We understand that purchasing used and obsolete breakers and controls requires confidence in their performance. Therefore, we have established the following warranty policy to ensure your satisfaction:

  1. Limited Warranty: All used and obsolete breakers and controls purchased from [Company Name] are covered by a limited warranty. This warranty guarantees that the products will be free from defects in material and workmanship under normal use and service for a specified period from the date of purchase.
  2. Warranty Period: The warranty period for used and obsolete breakers and controls may vary depending on the specific product and its condition at the time of purchase. The warranty duration will be clearly stated on the product listing or accompanying documentation. Please review the product description or contact our customer support team for the warranty period applicable to your purchase.
  3. Warranty Coverage: Our warranty covers the repair or replacement of defective parts or products at our discretion. If a covered product is found to be defective within the warranty period, we will either repair the product, replace it with an equivalent item, or provide a refund, depending on the availability of the specific product and the customer’s preference.

Additional information

Weight 6 lbs
Condition

New, Used
